Natural Calcite Glan Laser Polarizing Prisms
• Transmit linearly polarized extraordinary beam without deviation from its initial direction • Reflect ordinary ray out of the prism into either the black glass or the escape port • Air-spaced prisms • Available with… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Side A length | Mounted | Mount Outer Diameter | Mount Clear Aperture | Material | Design Wavelength Range | Beam Separation Angle | Coating | |
|---|---|---|---|---|---|---|---|---|---|---|
| 440-2010 | Glan Laser | 10 mm | False | — | — | Natural Calcite | 350 nm - 2100 nm | 68 deg 0 min 0 sec | Uncoated |
15 in stock
Ships in: 2–5 calendar days
$684
|
| 440-2010-CM | Glan Laser | 10 mm | True | 25.4 mm | 9 mm | Natural Calcite | 220 nm - 2300 nm | 68 deg 0 min 0 sec | Uncoated |
5 in stock
Ships in: 2–5 calendar days
$608
|
| 440-2010-M2Ps | Glan Laser | 10 mm | True | 25.4 mm | 9 mm | Natural Calcite | 220 nm - 2300 nm | 68 deg 0 min 0 sec | Uncoated |
1 in stock
Ships in: 2–5 calendar days
$756
|
| 440-2012 | Glan Laser | 12 mm | False | — | — | Natural Calcite | 350 nm - 2100 nm | 68 deg 0 min 0 sec | — |
4 in stock
Ships in: 2–5 calendar days
$828
|
| 440-2012-M2Ps | Glan Laser | 12 mm | True | 25.4 mm | 11 mm | Natural Calcite | 220 nm - 2300 nm | 68 deg 0 min 0 sec | Uncoated |
1 in stock
Ships in: 2–5 calendar days
$900
|
| 440-2014 | Glan Laser | 14 mm | False | — | — | Natural Calcite | 220 nm - 2300 nm | 68 deg 0 min 0 sec | — |
Out of stock
Ships in: 62–65 calendar days
$1,138
|
| 440-2014-M2Ps | Glan Laser | 14 mm | True | 25.4 mm | 12.7 mm | Natural Calcite | 220 nm - 2300 nm | 68 deg 0 min 0 sec | — |
Out of stock
Ships in: 62–65 calendar days
$1,210
|
| 440-2020 | Glan Laser | 20 mm | False | — | — | Natural Calcite | 350 nm - 2100 nm | 68 deg 0 min 0 sec | — |
Out of stock
Ships in: 62–65 calendar days
$2,736
|
| 440-2020-M2P | Glan Laser | 20 mm | True | 25.4 mm | 19 mm | Natural Calcite | 350 nm - 2100 nm | 68 deg 0 min 0 sec | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$2,808
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Glan Laser |
| Shape Type | Square |
| Cementing material or method | Air spaced |
| Material Type | Crystalline Material |
| Material | Natural Calcite |
| Beam Separation Angle | 68 deg 0 min 0 sec |
Surface 1
| Surface quality, grind or polish | Polished |
Surface 1, Wavelength 1
| LIDT | >5 J/cm², 10 ns pulses at 1064 nm, 100 Hz |
Surface 2
| Surface quality, grind or polish | Polished |
Description

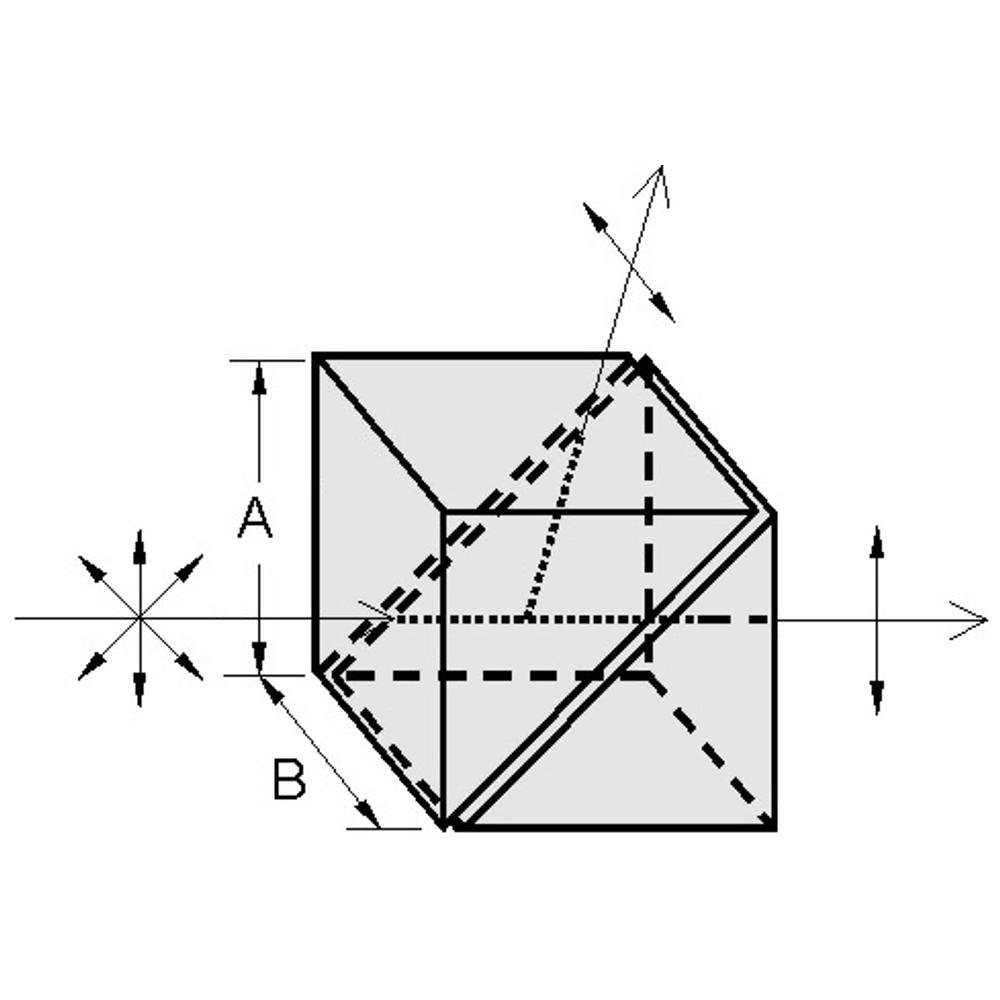

- Transmit linearly polarized extraordinary beam without deviation from its initial direction
- Reflect ordinary ray out of the prism into either the black glass or the escape port
- Air-spaced prisms
- Available with two, one or no escape ports in mounts for extra power capacity
Glan laser polarizers are manufactured from the finest optical grade natural calcite. They are useful in applications requiring high degree of polarization purity, high total transmission and low, medium or high power requirements.
M2P mounts can be used with Polarizer Holder 840-0180, Adjustable Polarizer Holder of Side Drive 840-0195, Kinematic Beamsplitter Mount 840-0020.
M2Ps mounts can be used with Polarizer Holder 840-0180, Kinematic Beamsplitter Mount 840-0020.
