Natural Calcite Glan Laser Polarizing Prisms SKU: 440-2010-M2Ps

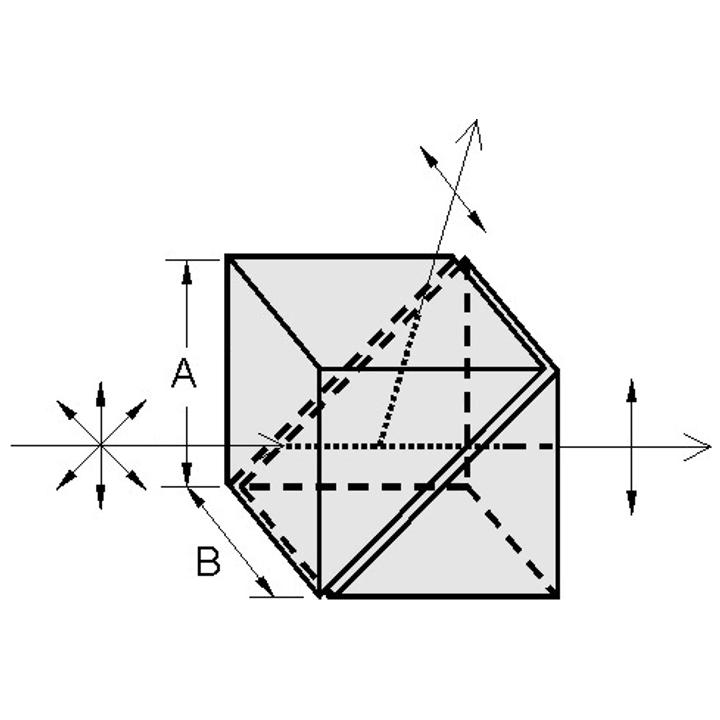

• Transmit linearly polarized extraordinary beam without deviation from its initial direction • Reflect ordinary ray out of the prism into either the black glass or the escape port • Air-spaced prisms • Available with two, one or no escape ports in mounts for extra power…
Variant specifications
| Specification | Value |
|---|---|
| Standard dimensions A x B | 10 x 10 mm |
| Group | Mounted Natural Calcite Glan Laser Prisms |
Shared product specifications
These specifications apply across the Natural Calcite Glan Laser Polarizing Prisms product family.
| Material | Naturale calcite |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Wavefront distortion | λ / 4 at 633 nm |
| Beam deviation | <3 arcmin |
| Wavelength range | 350-2100 nm |
| Extinction ratio | 1:100 000 |
| Laser Damage Threshold | >5 J / cm², 10 ns pulses at 1064 nm, 100 Hz |
Classification
| Type | Glan-Taylor|Glan-Laser|prism |
