Rochon Polarizing Prisms
Rochon polarizing prisms are made of two birefringent α-BBO prisms, which are cemented together. The first prism (cut parallel to the optic axis) receives the light, while the second (facing the optic axis at right… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Side A length | Mounted | Mount Outer Diameter | Mount Clear Aperture | Material | Design Wavelength Range | Beam Separation Angle | Coating | |
|---|---|---|---|---|---|---|---|---|---|---|
| 455-2108 | Rochon | 8 mm | True | 25.4 mm | 8 mm | a-BBO | 200 nm - 3500 nm | 8 deg 0 min 0 sec | AR |
Out of stock
Ships in: 62–65 calendar days
$791
|
| 455-2110 | Rochon | 10 mm | True | 25.4 mm | 10 mm | a-BBO | 200 nm - 3500 nm | 8 deg 0 min 0 sec | AR |
Out of stock
Ships in: 62–65 calendar days
$1,007
|
| 455-2115 | Rochon | 15 mm | True | 30 mm | 15 mm | a-BBO | 200 nm - 3500 nm | 8 deg 0 min 0 sec | AR |
Out of stock
Ships in: 62–65 calendar days
$1,368
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Rochon |
| Shape Type | Square |
| Cementing material or method | Cemented |
| Mounted | True |
| Mount Material and Coating | Black Anodised Aluminum |
| Material Type | Crystalline Material |
| Material | a-BBO |
| TWD, fringes @633 nm | -(0.5) |
| Design Wavelength Range | 200 nm - 3500 nm |
| Beam Separation Angle | 8 deg 0 min 0 sec |
Surface 1
| Surface quality, grind or polish | Polished |
| Clear Aperture, % | 90 % - 100 % |
| Power and Irregularity, fringes @633 nm | -(0.5) |
Surface 1, Wavelength 1
| Coating | AR |
Surface 2
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.5) |
Surface 2, Wavelength 1
| Coating | AR |
Description

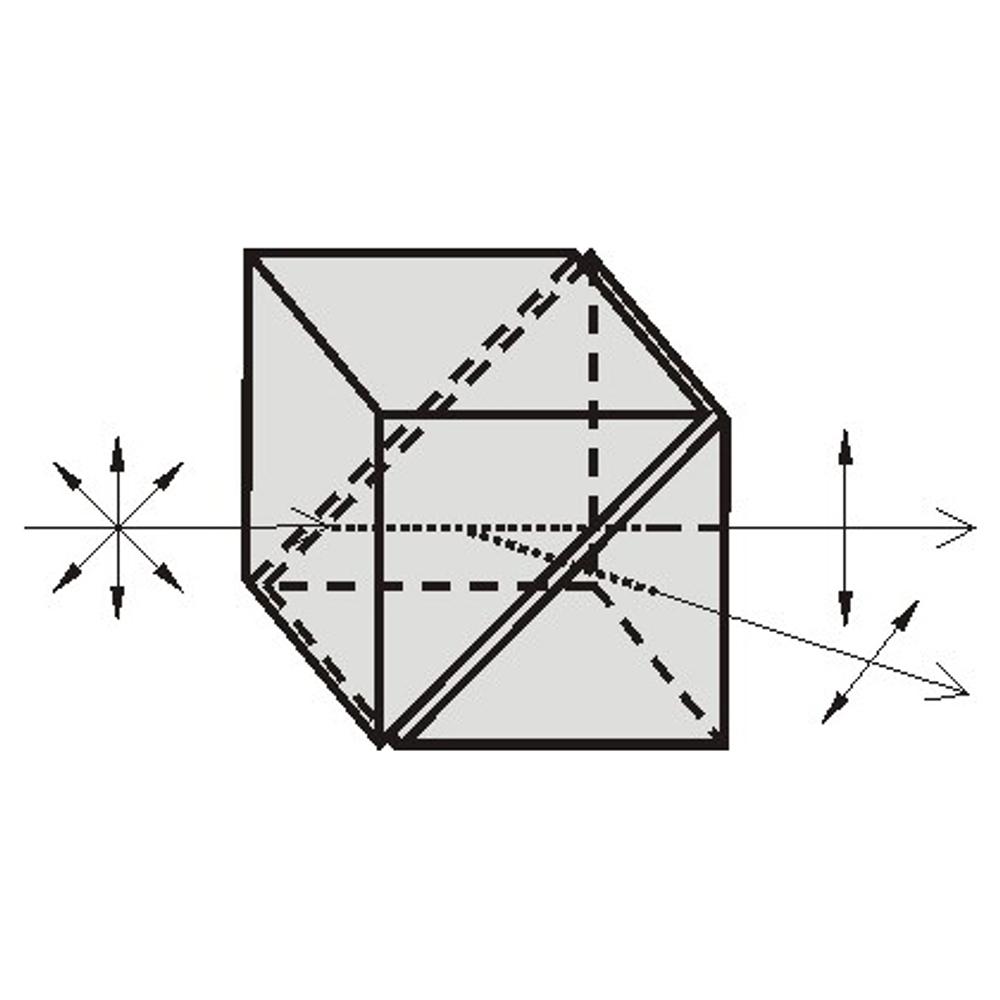

Rochon polarizing prisms are made of two birefringent α-BBO prisms, which are cemented together. The first prism (cut parallel to the optic axis) receives the light, while the second (facing the optic axis at right angles) transmits the ordinary ray without deviation, but the extraordinary ray is deflected.
Rochon prisms can be used to produce plane-polarized light. and it can also be used with ultraviolet light. Prisms with non-standard separation angles can be designed upon request for your specific wavelength.
