Rochon Polarizing Prisms SKU: 455-2115

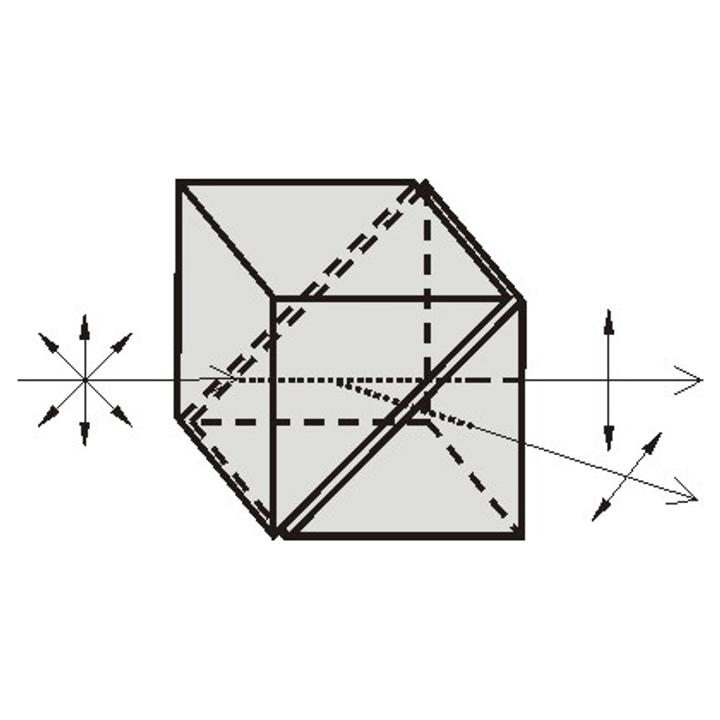

Rochon polarizing prisms are made of two birefringent α-BBO prisms, which are cemented together. The first prism (cut parallel to the optic axis) receives the light, while the second (facing the optic axis at right angles) transmits the ordinary ray without deviation, but the…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Rochon |
| Shape Type | Square |
| Cementing material or method | Cemented |
| Side A length | 15 mm |
| Mounted | True |
| Mount Material and Coating | Black Anodised Aluminum |
| Mount Outer Diameter | 30 mm |
| Mount Clear Aperture | 15 mm |
| Material | a-BBO |
| TWD, fringes @633 nm | -(0.5) |
| Design Wavelength Range | 200 nm - 3500 nm |
| Beam Separation Angle | 8 deg |
| Surface 1 | Value |
|---|---|
| Surface quality, grind or polish | Polished |
| Clear Aperture, % | > 90 % |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Surface 1, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Surface 2 | Value |
|---|---|
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Surface 2, Wavelength 1 | Value |
|---|---|
| Coating | AR |
