Femtoline Zero Order Dual Wavelength Wave Plates
Eksma Optics offers zero order dual wavelength plates for Ti:Sapphire and Yb:KGW/KYW lasers. When optical axis is turned by 45 degrees to input polarization, zero order dual wavelength waveplate rotates the fundamental… Read more →
Volume discount
- 5–9 units −10%
- 10+ units −15%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Cementing material or method | Shape Type | Diameter | Mounted | Material | Retardation | Retardation Accuracy | |
|---|---|---|---|---|---|---|---|---|---|
| 465-4212 | Zero Order | Optically contacted | Round | 20 mm | True | Crystal Quartz | L/2 | <L/100 |
18 in stock
Ships in: 2–5 calendar days
$414
|
| 466-4211 | Zero Order | Air spaced | Round | 20 mm | True | Crystal Quartz | L/2 | <L/100 |
21 in stock
Ships in: 2–5 calendar days
$492
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Zero Order |
| Shape Type | Round |
| Diameter | 20 mm |
| Mounted | True |
| Mount Thickness | 6 mm |
| Mount Outer Diameter | 25.4 mm |
| Mount Clear Aperture | 17 mm |
| Material Type | Crystalline Material |
| Material | Crystal Quartz |
| TWD, fringes @633 nm | -(0.2) |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 0 min 10 sec |
Wavelength 1
| Retardation | L/2 |
| Retardation Accuracy | <L/100 |
Surface 1
| Surface quality, ISO | 20-10 |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
Surface 1, Wavelength 1
| Coating | AR |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Surface 2
| Surface quality, ISO | 20-10 |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
Surface 2, Wavelength 1
| Coating | AR |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Description

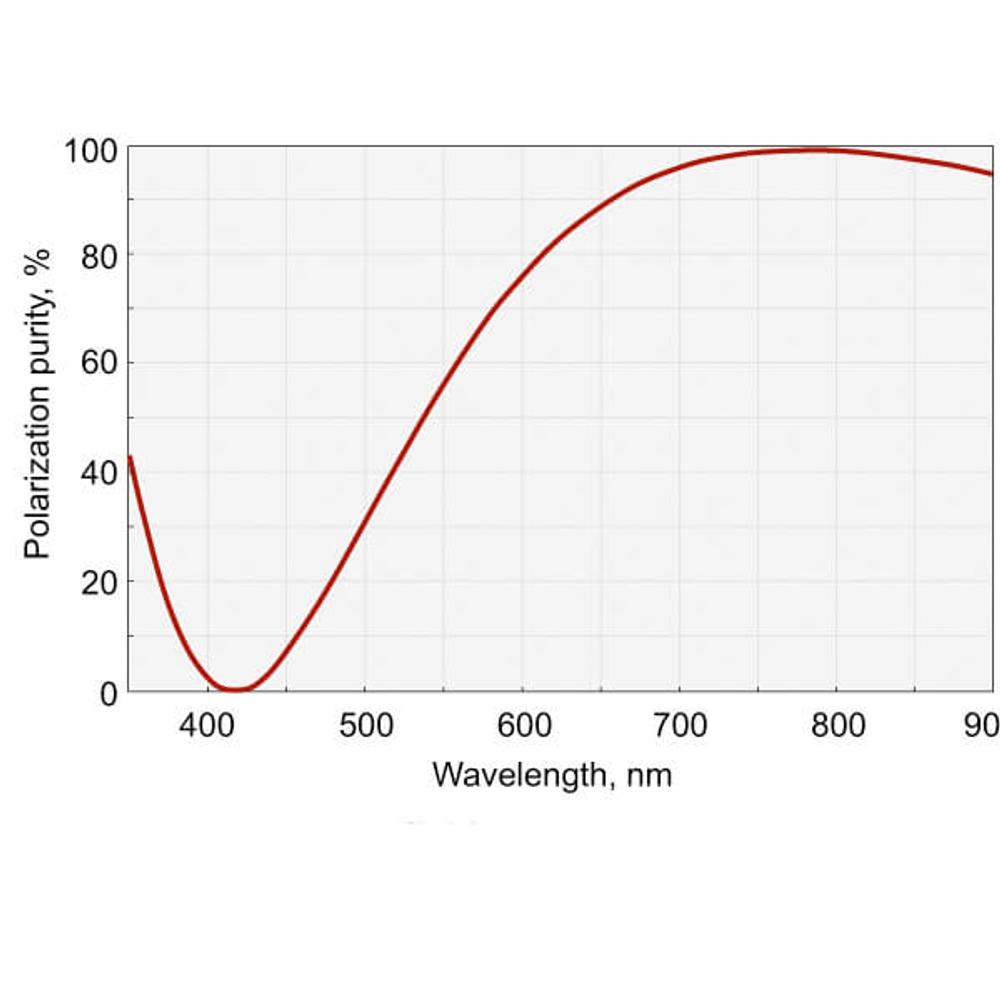

Eksma Optics offers zero order dual wavelength plates for Ti:Sapphire and Yb:KGW/KYW lasers. When optical axis is turned by 45 degrees to input polarization, zero order dual wavelength waveplate rotates the fundamental wavelength by 90 degrees and the polarization of second harmonic wavelength remains the same.
