BBO Crystals for Yb:KGW/KYW Frequency Conversion
We recommend BBO crystals of the thickness indicated below for frequency conversion applications @ 1030 nm depending on fundamental wavelength pulse duration, assuming it's a spectrum limited Gaussian pulse. • 50 fs:… Read more →
Volume discount
- 5–9 units −10%
- 10+ units −15%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Width
6 mm - 10 mm · 3 values
Any
mm
mm
Thickness
0.5 mm - 2 mm · 4 values
Any
mm
mm
Surface 1, Wavelength 1
Wavelength
515 nm - 1030 nm · 2 values
Any
nm
nm
9
catalog variants — refine the spec to narrow it down.
| SKU | Width | Thickness | Applications | Pump Wavelength | Product Type | Theta Angle | Coating | Wavelength | |
|---|---|---|---|---|---|---|---|---|---|
| BBO-1051H | 10 mm | 0.5 mm | SHG | 1030 nm - 1030 nm | T1 | 23.4 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$912
|
| BBO-1052H | 10 mm | 1 mm | SHG | 1030 nm - 1030 nm | T1 | 23.4 Deg | AR | 1030 nm - 1030 nm |
Out of stock
Ships in: 62–65 calendar days
$942
|
| BBO-1053H | 10 mm | 1.5 mm | SHG | 1030 nm - 1030 nm | T1 | 23.4 Deg | AR | 515 nm - 515 nm |
1 in stock
Ships in: 2–5 calendar days
$954
|
| BBO-1054H | 10 mm | 2 mm | SHG | 1030 nm - 1030 nm | T1 | 23.4 Deg | AR | 515 nm - 515 nm |
7 in stock
Ships in: 2–5 calendar days
$1,002
|
| BBO-651H | 6 mm | 0.5 mm | SHG | 1030 nm - 1030 nm | T1 | 23.4 Deg | AR | 515 nm - 515 nm |
4 in stock
Ships in: 2–5 calendar days
$594
|
| BBO-652H | 6 mm | 1 mm | SHG | 1030 nm - 1030 nm | T1 | 23.4 Deg | AR | 515 nm - 515 nm |
28 in stock
Ships in: 2–5 calendar days
$516
|
| BBO-851H | 8 mm | 0.5 mm | SHG | 1030 nm - 1030 nm | T1 | 23.4 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$768
|
| BBO-852H | 8 mm | 1 mm | SHG | 1030 nm - 1030 nm | T1 | 23.4 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$672
|
| BBO-854H | 8 mm | 2 mm | SHG | 1030 nm - 1030 nm | T1 | 23.4 Deg | AR | 515 nm - 515 nm |
Out of stock
Ships in: 62–65 calendar days
$756
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Square |
| Width Upper Tolerance | 0.1 mm |
| Width Lower Tolerance | -0.1 mm |
| Height Upper Tolerance | 0.1 mm |
| Height Lower Tolerance | -0.1 mm |
| Applications | SHG |
| Pump Wavelength | 1030 nm - 1030 nm |
| Mounted | True |
| Material Type | Crystalline Material |
| Material | BBO |
| Product Type | T1 |
| Theta Angle | 23.4 Deg |
| Theta Angle Tolerance | 0.5 Deg |
| Phi Angle | 90 Deg |
| Phi Angle Tolerance | 0.5 Deg |
| TWD, fringes @633 nm | -(0.25) |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 0 min 20 sec |
Surface 1
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.25) |
| Clear Aperture, % | 90 % - 100 % |
Surface 1, Wavelength 1

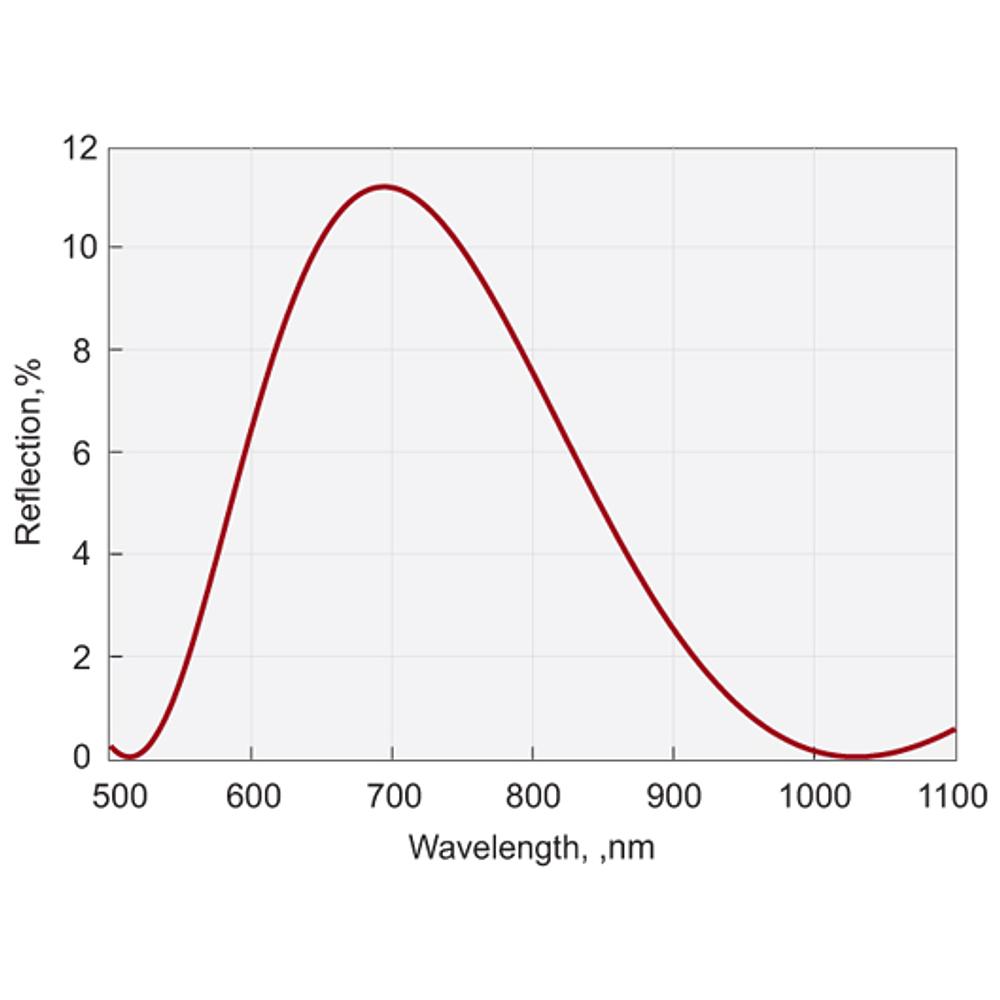

| Coating | AR |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Surface 1, Wavelength 2
| Coating | AR |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.25) |
| Clear Aperture, % | 90 % - 100 % |
Surface 2, Wavelength 1
| Coating | AR |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Surface 2, Wavelength 2
| Coating | AR |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Side Surface 1
| Perpendicularity | 0 deg 0 min 0 sec - 0 deg 5 min 0 sec |
Description
We recommend BBO crystals of the thickness indicated below for frequency conversion applications @ 1030 nm depending on fundamental wavelength pulse duration, assuming it's a spectrum limited Gaussian pulse.
- 50 fs: BBO SHG @ 1030 nm: 0.5 mm; BBO THG @ 1030 nm: 0.15 mm; BBO 4HG @ 1030 nm: 0.1 mm
- 100 fs: BBO SHG @ 1030 nm: 1 mm; BBO THG @ 1030 nm: 0.25 mm; BBO 4HG @ 1030 nm: 0.15 mm
- 150 fs: BBO SHG @ 1030 nm: 1.5 mm; BBO THG @ 1030 nm: 0.4 mm; BBO 4HG @ 1030 nm: 0.2 mm
- 200 fs: BBO SHG @ 1030 nm: 2 mm; BBO THG @ 1030 nm: 0.55 mm; BBO 4HG @ 1030 nm: 0.3 mm
