BBO Crystals for Yb:KGW/KYW Frequency Conversion SKU: BBO-852H
We recommend BBO crystals of the thickness indicated below for frequency conversion applications @ 1030 nm depending on fundamental wavelength pulse duration, assuming it's a spectrum limited Gaussian pulse. • 50 fs: BBO SHG @ 1030 nm: 0.5 mm; BBO THG @ 1030 nm: 0.15 mm; BBO…
Variant specifications
| Specification | Value |
|---|---|
| Aperture | 8 x 8 mm |
| Thickness | 1 mm |
| θ | 23.4 |
| φ | 90 |

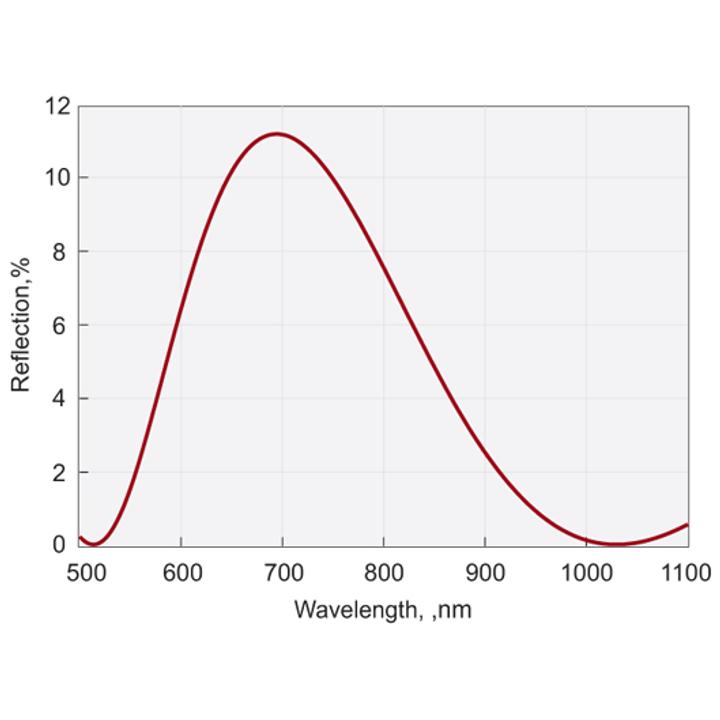

| Coating | AR/AR@515+1030 nm |
| Application | SHG @ 1030 nm |
| Pulse | 100 fs |
Shared product specifications
These specifications apply across the BBO Crystals for Yb:KGW/KYW Frequency Conversion product family.
STANDARD SPECIFICATIONS
| Flatness | λ / 8 @ 633 nm |
| Parallelism | < 20 arcsec |
| Perpendicularity | < 5 arcmin |
| Angle tolerance | < 30 arcmin |
| Aperture tolerance | ± 0.1 mm |
| Surface quality | 10 / 5 scratch & dig per MIL-O-13830A |
| Clear aperture | 90% of full aperture |
| Pulse duration | BBO SHG @ 1030 nm | BBO THG @ 1030 nm | BBO 4HG @ 1030 nm |
|---|---|---|---|
| 50 fs | 0.5 mm | 0.15 mm | 0.1 mm |
| 100 fs | 1 mm | 0.25 mm | 0.15 mm |
| 150 fs | 1.5 mm | 0.4 mm | 0.2 mm |
| 200 fs | 2 mm | 0.55 mm | 0.3 mm |
Classification
| Line | femtoline |
