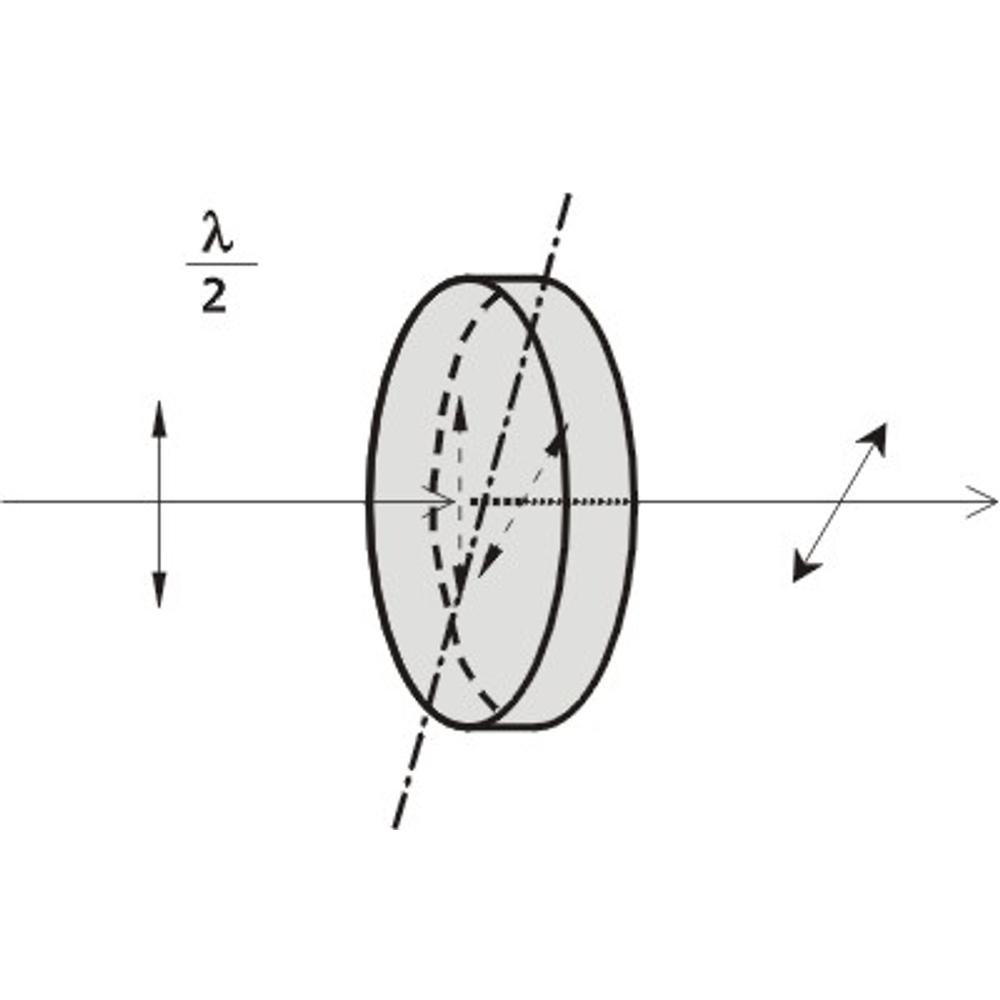

Multiple Order Wave Plates
• Made from a single crystalline plate • Polished to 1-1.5 mm thickness Made from high quallity optical grade crystalline quartz quarter wave and half wave retardation versions available suitable for high and low… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
Wavelength
Any
Retardation
Any
or
Diameter
Any
Clear aperture
Any
Mount
Any
or
60
catalog variants — refine the spec to narrow it down.
| SKU | Wavelength · Retardation · Diameter · Clear aperture · Mount · Group | |
|---|---|---|
| 462-4201 | 1550 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
7 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4201D12 | 1550 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$108
|
| 462-4205 | 1064 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4205D12 | 1064 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/2 |
104 in stock
Ships in: 2–5 calendar days
$108
|
| 462-4206 | 1053 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4206D12 | 1053 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/2 |
10 in stock
Ships in: 2–5 calendar days
$108
|
| 462-4208 | 1030 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
12 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4208D12 | 1030 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$108
|
| 462-4210 | 950 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4213 | 852 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4215 | 800 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
1 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4215D12 | 800 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$108
|
| 462-4220 | 780 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4220D12 | 780 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted |
Out of stock
Ships in: 58–61 calendar days
$108
|
| 462-4221 | 770 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
4 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4225 | 633 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
7 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4225D12 | 633 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/2 |
14 in stock
Ships in: 2–5 calendar days
$108
|
| 462-4228 | 589 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4230 | 532 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4230D12 | 532 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/2 |
98 in stock
Ships in: 2–5 calendar days
$108
|
| 462-4231 | 527 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
6 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4232 | 515 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4232D12 | 515 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted |
Out of stock
Ships in: 58–61 calendar days
$108
|
| 462-4233 | 488 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
9 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4235 | 400 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4240 | 355 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
26 in stock
Ships in: 2–5 calendar days
$172
|
| 462-4240D12 | 355 nm·λ/2·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/2 |
1 in stock
Ships in: 2–5 calendar days
$114
|
| 462-4241 | 343 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
3 in stock
Ships in: 2–5 calendar days
$172
|
| 462-4245 | 266 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
6 in stock
Ships in: 2–5 calendar days
$184
|
| 462-4246 | 257 nm·λ/2·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/2 |
Out of stock
Ships in: 62–65 calendar days
$184
|
| 462-4401 | 1550 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4401D12 | 1550 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$108
|
| 462-4405 | 1064 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
29 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4405D12 | 1064 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/4 |
36 in stock
Ships in: 2–5 calendar days
$108
|
| 462-4406 | 1053 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4406D12 | 1053 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$108
|
| 462-4408 | 1030 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4408D12 | 1030 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$108
|
| 462-4410 | 950 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4413 | 852 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4415 | 800 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4415D12 | 800 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted |
Out of stock
Ships in: 58–61 calendar days
$108
|
| 462-4420 | 780 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4420D12 | 780 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$108
|
| 462-4421 | 770 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4425 | 633 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4425D12 | 633 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$108
|
| 462-4428 | 589 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
6 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4430 | 532 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4430D12 | 532 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/4 |
14 in stock
Ships in: 2–5 calendar days
$108
|
| 462-4431 | 527 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
3 in stock
Ships in: 2–5 calendar days
$166
|
| 462-4432 | 515 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4432D12 | 515 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted |
Out of stock
Ships in: 58–61 calendar days
$108
|
| 462-4433 | 488 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4435 | 400 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 462-4440 | 355 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$172
|
| 462-4440D12 | 355 nm·λ/4·ø 12.7 mm·ø 11 mm·Unmounted·Retardation λ/4 |
8 in stock
Ships in: 2–5 calendar days
$114
|
| 462-4441 | 343 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
Out of stock
Ships in: 62–65 calendar days
$172
|
| 462-4445 | 266 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm·Retardation λ/4 |
1 in stock
Ships in: 2–5 calendar days
$184
|
| 462-4446 | 257 nm·λ/4·ø 20 mm·ø 17 mm·ø 25.4 mm |
Out of stock
Ships in: 58–61 calendar days
$184
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Material | Single crystal quartz | Single crystal quartz |
|---|---|---|
| Optical axis | Normal to facet on circumference of retarder | Normal to facet on circumference of retarder |
| Wavefront distortion | λ / 10 @ 633 nm | λ / 10 @ 633 nm |
| Parallelism | < 10 arcsec | < 10 arcsec |
| AR Coating | R < 0.4% | R < 0.4% |
| Laser damage threshold | 10 J / cm², 10 nsec, 1064 nm typical | 10 J / cm², 10 nsec, 1064 nm typical |
| Ø 20 mm Waveplate | Ø 17 mm Waveplate | |
|---|---|---|
| Clear aperture | Ø 17 mm | Ø 11 mm |
| Mounting | Ø25.4 mm +0.0 / -0.2 mm | Unmounted |
| Nominal thickness of waveplate | 1÷1.5 mm | 1÷1.5 mm |
Description
- Made from a single crystalline plate
- Polished to 1-1.5 mm thickness
Made from high quallity optical grade crystalline quartz quarter wave and half wave retardation versions available suitable for high and low power laser applications. Retardation plates are supplied mounted and have multilayer dielectric anti-reflection coating on both sides maximising transmission. Retardation of multiple order plates is only slightly more temperature dependent comparing with the zero order ones.
