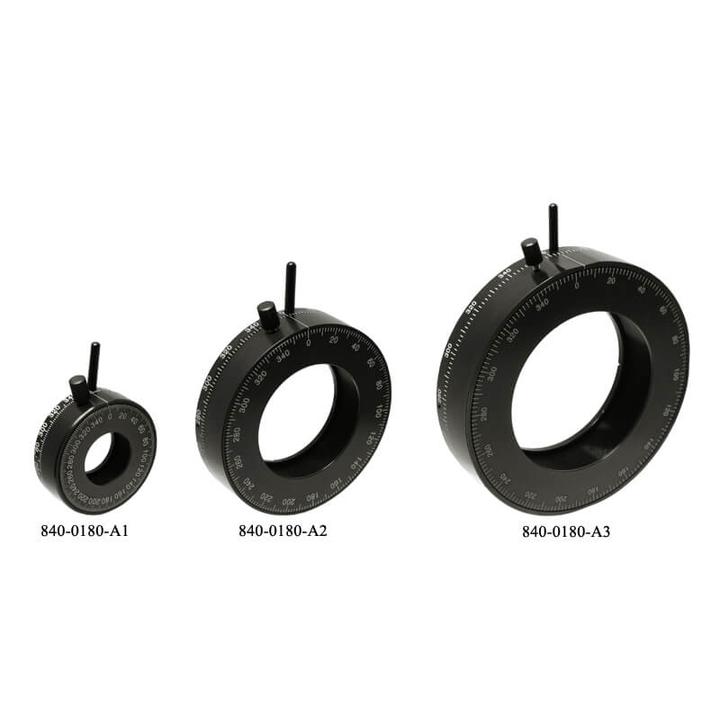

Polarizer Holders 840-0180-A, 840-0180-B SKU: 840-0180-A1
• 2 engraved scales located on face and outer surfaces • Compact design with roller bearings • Lockable • Continuous 360° rotation • Direct mounting of optics 1" , 2" or 3'' in diameter Polarizer Holders 840-0180-A are ideal for positioning rotation sensitive optics such as…
Variant specifications
| Specification | Value |
|---|---|
| D, mm | 51 / 23 |
| E, mm | 16.5 |
| H, mm | 17.5 |
| B, mm | 25.5 |
| L, mm | 25 |
| M, mm | M27x1 / 2.5 |
| F, mm | 7.5 |
Shared product specifications
These specifications apply across the Polarizer Holders 840-0180-A, 840-0180-B product family.
| Polarizer Holders - Solidworks file | |
| Polarizer Holders - DWG file | |
| Polarizer Holders - STEP file |
Variant files
Technical drawings, models and data files for SKU 840-0180-A1.
Product brochures
Shared documentation for the complete product family.
