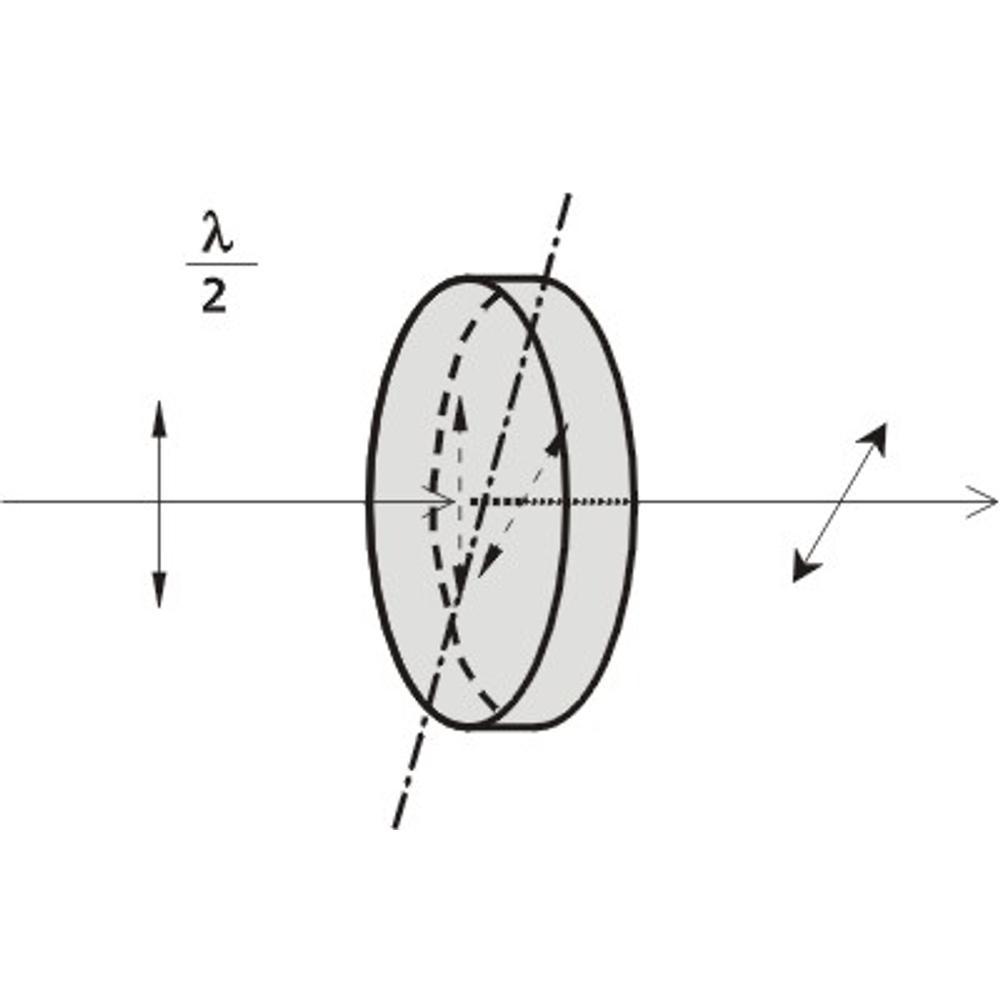

Multiple Order Dual Wavelength Wave Plates

Multiple Order Dual Wavelength Wave Plates

• Operate at both first and second Nd:YAG laser harmonics • Retardation tolerance <λ/100

From $258 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Wavelength 1

Design Wavelength Range 532 nm - 1064 nm · 3 values Any nm
nm
Retardation Any
16 catalog variants — refine the spec to narrow it down.
SKU Product Type Shape Type Diameter Mounted Material Design Wavelength Range Retardation Retardation Accuracy
463-4120 Multi Order Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L <L/100
8 in stock Ships in: 2–5 calendar days
$258
463-4121 Multi Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L <L/100
3 in stock Ships in: 2–5 calendar days
$258
463-4140 Multi Order Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L <L/100
Out of stock Ships in: 62–65 calendar days
$258
463-4141 Multi Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L <L/100
3 in stock Ships in: 2–5 calendar days
$258
463-4210 Multi Order Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L/2 <L/100
Out of stock Ships in: 62–65 calendar days
$258
463-4211 Multi Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L/2 <L/100
7 in stock Ships in: 2–5 calendar days
$258
463-4220 Multi Order Round 20 mm True Crystal Quartz 532 nm - 532 nm L/2 <L/100
Out of stock Ships in: 62–65 calendar days
$258
463-4221 Multi Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L/2 <L/100
8 in stock Ships in: 2–5 calendar days
$258
463-4240 Multi Order Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L/2 <L/100
5 in stock Ships in: 2–5 calendar days
$258
463-4241 Multi Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L/2 <L/100
7 in stock Ships in: 2–5 calendar days
$258
463-4410 Multi Order Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L/4 <L/100
Out of stock Ships in: 62–65 calendar days
$258
463-4411 Multi Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L/4 <L/100
Out of stock Ships in: 62–65 calendar days
$258
463-4420 Multi Order Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L/4 <L/100
5 in stock Ships in: 2–5 calendar days
$258
463-4421 Multi Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L/4 <L/100
Out of stock Ships in: 62–65 calendar days
$258
463-4440 Multi Order Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L/4 <L/100
3 in stock Ships in: 2–5 calendar days
$258
463-4441 Multi Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L/4 <L/100
Out of stock Ships in: 62–65 calendar days
$258

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type Multi Order
Shape Type Round
Diameter 20 mm
Mounted True
Mount Thickness 6 mm
Mount Outer Diameter 25.4 mm
Mount Clear Aperture 17 mm
Material Type Crystalline Material
Material Crystal Quartz
TWD, fringes @633 nm -(0.2)
Parallelism, angle 0 deg 0 min 0 sec - 0 deg 0 min 10 sec

Wavelength 1

Retardation Accuracy <L/100

Surface 1

Surface quality, ISO 20-10
Power and Irregularity, fringes @633 nm 0(0.2)

Surface 1, Wavelength 1

Coating AR
Reflectivity, % 0 % - 0.3 %
AOI (angle of incidence) 0 deg 0 min 0 sec - 0 deg 0 min 0 sec

Surface 2

Surface quality, ISO 20-10
Power and Irregularity, fringes @633 nm 0(0.2)

Surface 2, Wavelength 1

Coating AR
Reflectivity, % 0 % - 0.3 %
AOI (angle of incidence) 0 deg 0 min 0 sec - 0 deg 0 min 0 sec

Description

  • Operate at both first and second Nd:YAG laser harmonics
  • Retardation tolerance <λ/100
