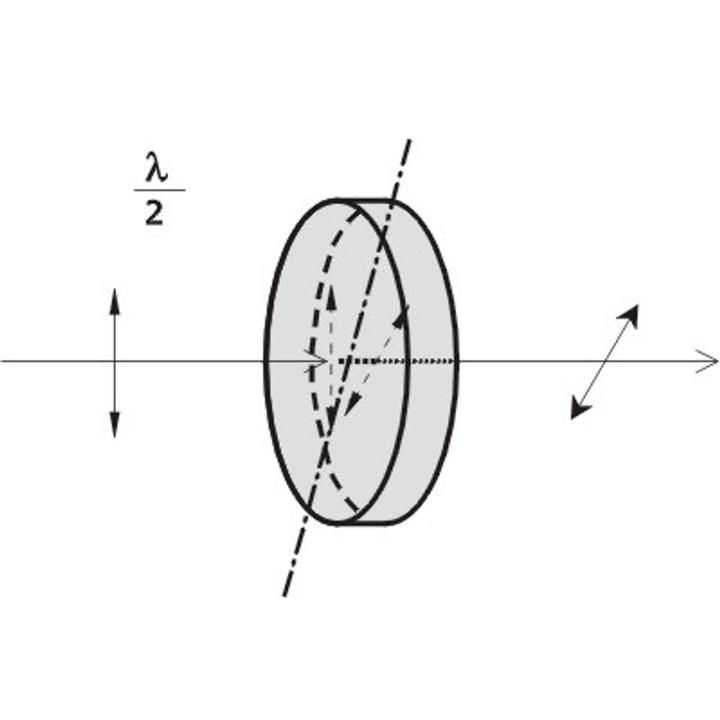

Multiple Order Dual Wavelength Wave Plates SKU: 463-4141
• Operate at both first and second Nd:YAG laser harmonics • Retardation tolerance <λ/100
Variant specifications
| Product | Value |
|---|---|
| Product Type | Multi Order |
| Shape Type | Round |
| Diameter | 20 mm |
| Thickness | 1 mm |
| Mounted | True |
| Mount Thickness | 6 mm |
| Mount Outer Diameter | 25.4 mm |
| Mount Clear Aperture | 17 mm |
| Material Type | Crystalline Material |
| Material | Crystal Quartz |
| TWD, fringes @633 nm | -(0.2) |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 0 min 10 sec |
| Wavelength 1 | Value |
|---|---|
| Design Wavelength Range | 800 nm - 800 nm |
| Retardation | L |
| Retardation Accuracy | <L/100 |
| Surface 1 | Value |
|---|---|
| Surface quality, ISO | 20-10 |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
| Surface 1, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 800 nm - 800 nm |
| Reflectivity, % | 0 % - 0.3 % |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
| Surface 2 | Value |
|---|---|
| Surface quality, ISO | 20-10 |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
| Surface 2, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 800 nm - 800 nm |
| Reflectivity, % | 0 % - 0.3 % |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
