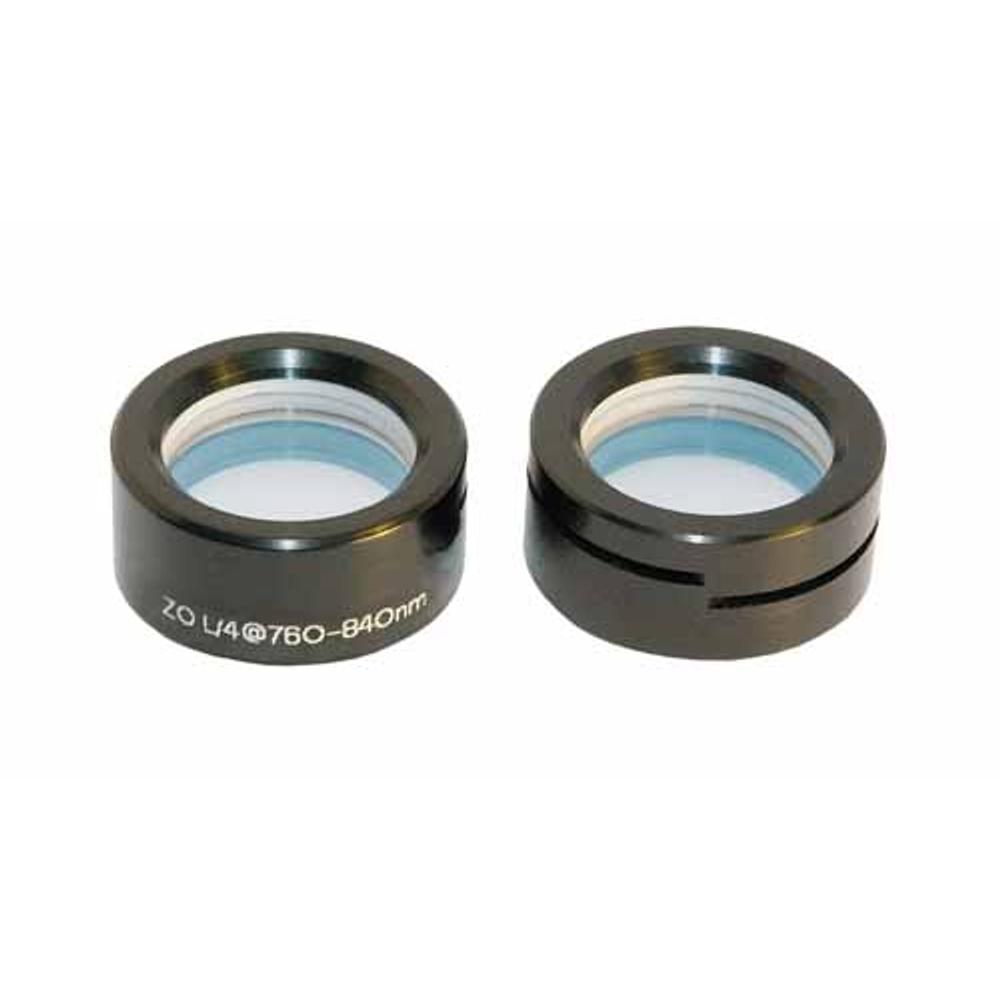

Zero Order Air-Spaced Wave Plates

Zero Order Air-Spaced Wave Plates

• For high power laser application. This Zero Order Air-Spaced Plate, made of single crystal quartz.

From $372 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 20 mm - 44 mm · 2 values Any mm
mm

Wavelength 1

Design Wavelength Range 257 nm - 1550 nm · 12 values Any nm
nm
Retardation Any
26 catalog variants — refine the spec to narrow it down.
SKU Product Type Cementing material or method Shape Type Diameter Mounted Material Design Wavelength Range Retardation Retardation Accuracy
464-4201 Zero Order Air spaced Round 20 mm True Crystal Quartz 1550 nm - 1550 nm L/2 <L/300
16 in stock Ships in: 2–5 calendar days
$372
464-4205 Zero Order Air spaced Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L/2 <L/300
17 in stock Ships in: 2–5 calendar days
$372
464-4208 Zero Order Air spaced Round 20 mm True Crystal Quartz 1030 nm - 1030 nm L/2 <L/300
53 in stock Ships in: 2–5 calendar days
$372
464-4215 Zero Order Air spaced Round 20 mm True Crystal Quartz 800 nm - 800 nm L/2 <L/300
35 in stock Ships in: 2–5 calendar days
$372
464-4215D50 Zero Order Air spaced Round 44 mm True Crystal Quartz 800 nm - 800 nm L/2 <L/300
4 in stock Ships in: 2–5 calendar days
$1,140
464-4220 Zero Order Air spaced Round 20 mm True Crystal Quartz 780 nm - 780 nm L/2 <L/300
10 in stock Ships in: 2–5 calendar days
$372
464-4230 Zero Order Air spaced Round 20 mm True Crystal Quartz 532 nm - 532 nm L/2 <L/300
Out of stock Ships in: 62–65 calendar days
$372
464-4232 Zero Order Air spaced Round 20 mm True Crystal Quartz 515 nm - 515 nm L/2 <L/300
Out of stock Ships in: 62–65 calendar days
$372
464-4235 Zero Order Air spaced Round 20 mm True Crystal Quartz 400 nm - 400 nm L/2 <L/300
Out of stock Ships in: 62–65 calendar days
$372
464-4240 Zero Order Air spaced Round 20 mm True Crystal Quartz 355 nm - 355 nm L/2 <L/300
4 in stock Ships in: 2–5 calendar days
$402
464-4241 Zero Order Air spaced Round 20 mm True Crystal Quartz 343 nm - 343 nm L/2 <L/300
2 in stock Ships in: 2–5 calendar days
$402
464-4245 Zero Order Air spaced Round 20 mm True Crystal Quartz 266 nm - 266 nm L/2 <L/300
Out of stock Ships in: 62–65 calendar days
$414
464-4246 Zero Order Air spaced Round 20 mm True Crystal Quartz 257 nm - 257 nm L/2 <L/300
7 in stock Ships in: 2–5 calendar days
$414
464-4401 Zero Order Air spaced Round 20 mm True Crystal Quartz 1550 nm - 1550 nm L/4 <L/300
8 in stock Ships in: 2–5 calendar days
$372
464-4405 Zero Order Air spaced Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L/4 <L/300
28 in stock Ships in: 2–5 calendar days
$372
464-4408 Zero Order Air spaced Round 20 mm True Crystal Quartz 1030 nm - 1030 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$372
464-4415 Zero Order Air spaced Round 20 mm True Crystal Quartz 800 nm - 800 nm L/4 <L/300
15 in stock Ships in: 2–5 calendar days
$372
464-4415D50 Zero Order Air spaced Round 44 mm True Crystal Quartz 800 nm - 800 nm L/4 <L/300
3 in stock Ships in: 2–5 calendar days
$1,140
464-4420 Zero Order Air spaced Round 20 mm True Crystal Quartz 780 nm - 780 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$372
464-4430 Zero Order Air spaced Round 20 mm True Crystal Quartz 532 nm - 532 nm L/4 <L/300
7 in stock Ships in: 2–5 calendar days
$372
464-4432 Zero Order Air spaced Round 20 mm True Crystal Quartz 515 nm - 515 nm L/4 <L/300
29 in stock Ships in: 2–5 calendar days
$372
464-4435 Zero Order Air spaced Round 20 mm True Crystal Quartz 400 nm - 400 nm L/4 <L/300
7 in stock Ships in: 2–5 calendar days
$372
464-4440 Zero Order Air spaced Round 20 mm True Crystal Quartz 355 nm - 355 nm L/4 <L/300
13 in stock Ships in: 2–5 calendar days
$402
464-4441 Zero Order Air spaced Round 20 mm True Crystal Quartz 343 nm - 343 nm L/4 <L/300
5 in stock Ships in: 2–5 calendar days
$402
464-4445 Zero Order Air spaced Round 20 mm True Crystal Quartz 266 nm - 266 nm L/4 <L/300
15 in stock Ships in: 2–5 calendar days
$414
464-4446 Zero Order Air spaced Round 20 mm True Crystal Quartz 257 nm - 257 nm L/4 <L/300
2 in stock Ships in: 2–5 calendar days
$414

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type Zero Order
Cementing material or method Air spaced
Shape Type Round
Mounted True
Material Type Crystalline Material
Material Crystal Quartz
TWD, fringes @633 nm -(0.2)
Parallelism, angle 0 deg 0 min 0 sec - 0 deg 0 min 10 sec

Wavelength 1

Retardation Accuracy <L/300

Surface 1

Power and Irregularity, fringes @633 nm 0(0.2)

Surface 1, Wavelength 1

Coating AR
AOI (angle of incidence) 0 deg 0 min 0 sec - 0 deg 0 min 0 sec

Surface 2

Power and Irregularity, fringes @633 nm 0(0.2)

Surface 2, Wavelength 1

Coating AR
AOI (angle of incidence) 0 deg 0 min 0 sec - 0 deg 0 min 0 sec

Description

  • For high power laser application.

This Zero Order Air-Spaced Plate, made of single crystal quartz.

Downloads

PDF
EKSMA_Optics_Zero_Order_Air-Spaced-Waveplates.pdf PDF · 137 KB
