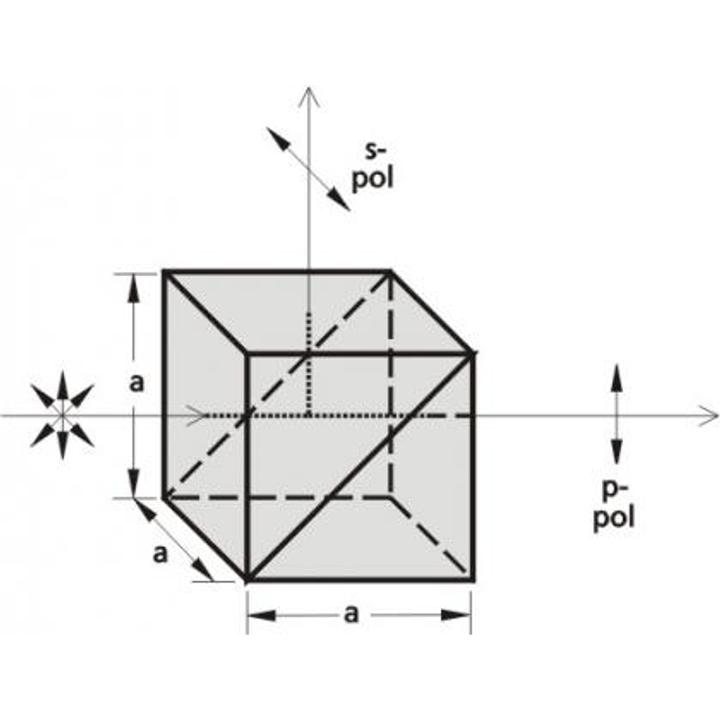

High Energy Polarizing Cube Beamsplitters SKU: 435-1127-M2Ps
• Optically contacted for high power applications • Typical damage threshold: >15 J/cm², 10 ns, 10 Hz at 1064 nm • Dimensions - 12.7 x 12.7 mm or 25.4 x 25.4 mm • Precision surface quality • High extinction ratio High Energy Polarizing Cube Beamsplitters are made of UV…
Variant specifications
| Specification | Value |
|---|---|
| Laser Damage Threshold | >3 J/cm² at 355 nm |
| Operating wavelength | 355 nm |
| Dimensions | 12.7 x 12.7 mm |
| Group | Mounted Cube Polarizing Beamsplitters |
Shared product specifications
These specifications apply across the High Energy Polarizing Cube Beamsplitters product family.
| Material | UV FS (laser line) or N-SF2 (broadband), or N-SF15 (dual wavelength) |
| Size tolerance | ±0.2 mm |
| Extinction ratio | >1:500 |
| Surface quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| Wavefront distrortion | λ / 10 @ 633 nm |
| Clear aperture | >85% of size |
| Beam deviation | <3 arcmin |
| Reflection s-polarization | >99.5% |
| Transmission p-polarization | >97% for laser line / >90% for broadband |
| Laser Damage Threshold | >15 J / cm²&ⁿbsp; 10 ns pulses at 1064 nm |
Classification
| Type | Glan-Taylor|Glan-Laser|prism |
