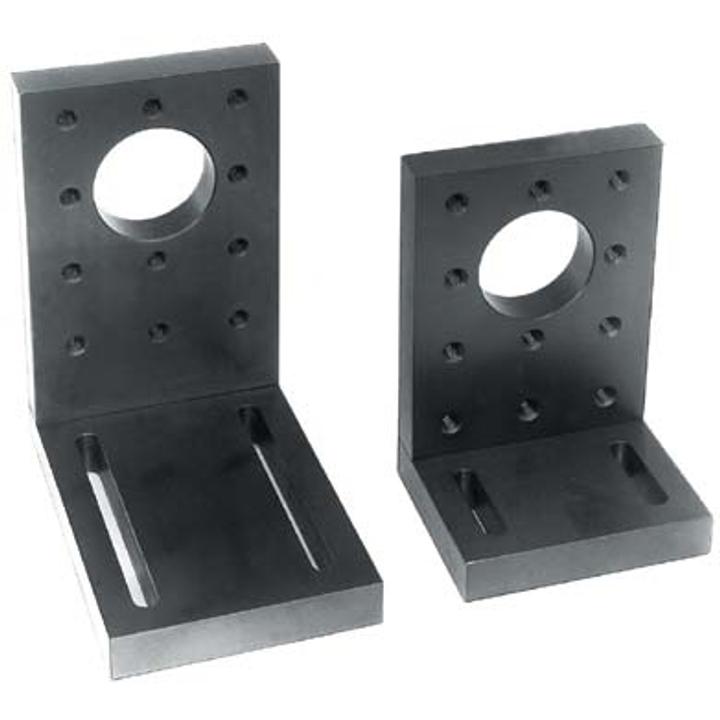

Angle Brackets 810-0080, 810-0090 SKU: 810-0080
The 810-0090 standard and 810-0080 large angle brackets have M6 tapped holes on 25 mm centers. The slots in the base allow longitudinal positioning on the table top. These brackets are especially useful for mounting of translators 860-0020, 860-0030, 860-0040 and…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Angle Bracket |
| Width | 76 mm |
| Length | 114 mm |
| Height | 125 mm |
| Thickness | 14 mm |
| Mount Material and Coating | Black Oxidized Steel |
| Weight | 1.6 kg |
| Mounting Thread | M6 |
| Hole spacing | 25 mm |
