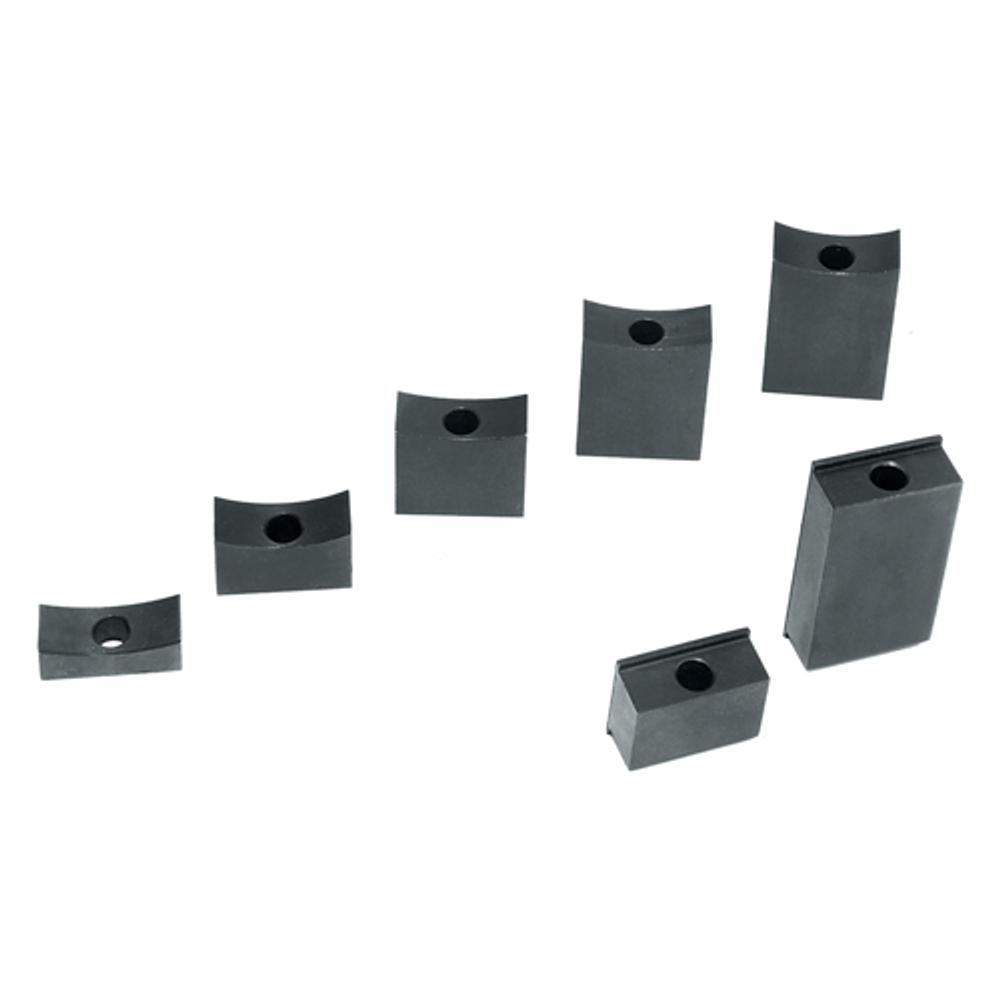

Riser Blocks 820-0160, 820-0170
The 820-0160 and 820-0170 series riser blocks interface with all our optical mounts and holders providing rigid mounting of components at desirable optical axis height. Finish: black anodized aluminium.
Listed in
Configure & order — pick a catalog variant or configure your own
Mountable Element
Any
or
Axis Height, mm
Any
A, mm
Any
B, mm
Any
R, mm
Any
Weight, kg
Any
7
catalog variants — refine the spec to narrow it down.
| SKU | A, mm · B, mm · Mountable Element · R, mm · Weight, kg · Axis Height, mm | |
|---|---|---|
| 820-0160-01 | 7·11·830-0010; 830-0080; 830-0030-02·34·0.01·50 |
Out of stock
$8
|
| 820-0160-02 | 32·36·830-0010; 830-0080; 830-0030-02·34·0.02·75 |
Out of stock
$10
|
| 820-0160-03 | 22·25.5·830-0020; 830-0030-04·44·0.01·75 |
Out of stock
$9
|
| 820-0160-04 | 13·17.6·830-0060; 830-0070·28·0.01·50 |
Out of stock
$8
|
| 820-0160-05 | 38·42.6·830-0060; 830-0070·28·0.02·75 |
Out of stock
$11
|
| 820-0170-01 | 16·19·840-0160; 840-0170; 840-0010; 840-0020; 840-0030·-·0.01·50 |
Out of stock
$7
|
| 820-0170-02 | 41·44·840-0160; 840-0170; 840-0010; 840-0020; 840-0030·-·0.03·75 |
Out of stock
$8
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Description
The 820-0160 and 820-0170 series riser blocks interface with all our optical mounts and holders providing rigid mounting of components at desirable optical axis height.
Finish: black anodized aluminium.
