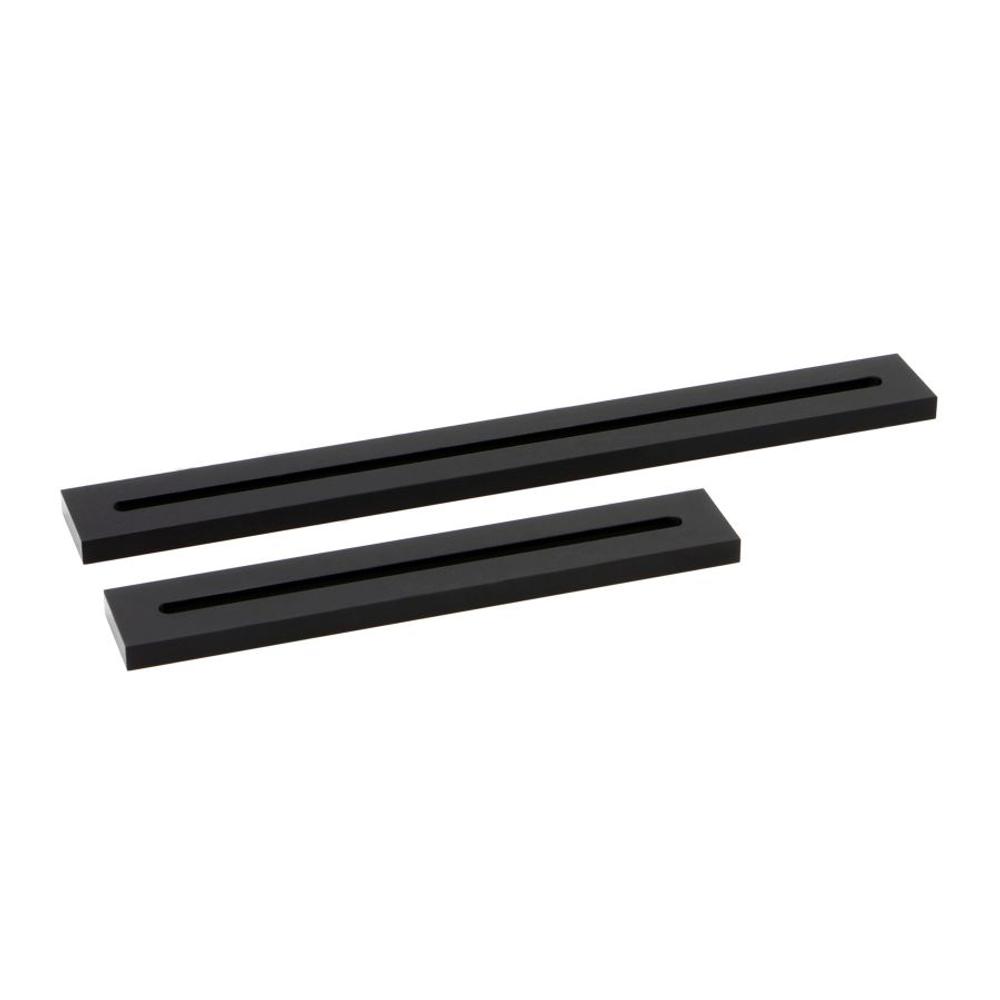

Multiple Mounting Plates 810-0035
Multiple Mounting Plates 810-0035 allow to assemble groups of accessories mounted in close proximity and acting as one unit (e.g. compound lens). For example, the slot of the plate 810-0035 allows to mount Lens Holders… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Length · Working length | |
|---|---|---|
| 810-0035-02 | 200 mm·165 mm |
Out of stock
$32
|
| 810-0035-03 | 300 mm·265 mm |
Out of stock
$35
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
Classification
| Type | brackets|rails |
Description
Multiple Mounting Plates 810-0035 allow to assemble groups of accessories mounted in close proximity and acting as one unit (e.g. compound lens). For example, the slot of the plate 810-0035 allows to mount Lens Holders 830-0035 using M6 screws from beneath. Their positions can be adjusted on the plate. 810-0035 can be attached to tables, breadboards, and rods of both metric and imperial standards at the desired height and orientation.
Material: black anodized aluminium.
