DP-SP Short-Pulse Cavity Dumping & Pulse Picking Pockels Cell Drivers
DP-SP series Pockels cell drivers can be used for single pulse selection in pulse picker applications for higher repetition rate lasers. While repetition rate can be up to 1 MHz, the standard range of possible pulse… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | REPETITION RATE · Max HV operating voltage · Repetition rate · MAX HV OPERATING VOLTAGE | |
|---|---|---|
| DP-SP-1000-1.8 | 1.8 kV·1000 kHz |
Out of stock
—
|
| DP-SP-1000-1.8-Al | 1.8 kV·1000 kHz |
Out of stock
—
|
| DP-SP-250-2.6 | 250 kHz·2.6 kV |
Out of stock
$2,412
|
| DP-SP-250-3.6 | 250 KHz·3.6 kV |
Out of stock
$2,760
|
| DP-SP-250-3.6-Al | 250 KHz·3.6 kV |
Out of stock
$2,905
|
| DP-SP-400-1.5 | 1.5 kV·400 kHz |
Out of stock
—
|
| DP-SP-50-3.6 | 50 kHz·3.6 kV |
Out of stock
$2,070
|
| DP-SP-50-3.6-Al | 50 kHz·3.6 kV |
Out of stock
$2,748
|
| DP-SP-500-2.6 | 500 kHz·2.6 kV |
Out of stock
$2,800
|
| DP-SP-500-2.6-Al | 500 kHz·2.6 kV |
Out of stock
$2,452
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| DP-SP-50-3.6-AI | DP-SP-250-2.5-AI | DP-SP-250-3.6-AI | DP-SP-400-1.5-AI | |
|---|---|---|---|---|
| Max / Min HV Operating Voltage | 3.6 kV / 1.8 kV | 2.5 kV / 1.25 kV | 3.6 kV / 1.8 kV kV | 1.5 kV / 0.75 kV |
| Maximal HV repetition rate¹⁾ | 50 kHz | 250 kHz | 250 kHz | 400 kHz |
| Pulse duration | 15-5000 ns | 15-1250 ns | 15-1250 ns | 15-620 ns |
| HV pulse rise time, typical | <7 ns | <6 ns | <7 ns | <5.5 ns |
| HV pulse fall time, typical | <7 ns | <6 ns | <7 ns | <5.5 ns |
| Output polarity | positive | positive | positive | positive |
| HV power consumption | <20 W | <40 W | <75 W | <20 W |
| 12V / 24V power consumption | 1 W | 4.5 W | 4 W | 5.5 W |
| Cooling | water | water | water | water |
| DP-SP-600-1.8-AI | DP-SP-600-2.5-Al | DP-SP-1000-1.8-AI | |
|---|---|---|---|
| Max / Min HV Operating Voltage | 1.8 kV / 0.9 kV | 2.5 kV / 1.25 kV | 1.8 kV / 0.9 kV |
| Maximal HV repetition rate¹⁾ | 600 kHz | 600 kHz | 1000 kHz |
| Pulse duration | 15-400 ns | 15-400 ns | 15-250 ns |
| HV pulse rise time, typical | <6 ns | <6.5 ns | <6 ns |
| HV pulse fall time, typical | <6 ns | <6.5 ns | <6 ns |
| Output polarity | positive | positive | positive |
| HV power consumption | <35 W | <100 W | <80 W |
| 12V / 24V power consumption | 7 W | 7 W | 9 W |
| Cooling | water | water | water |
Description

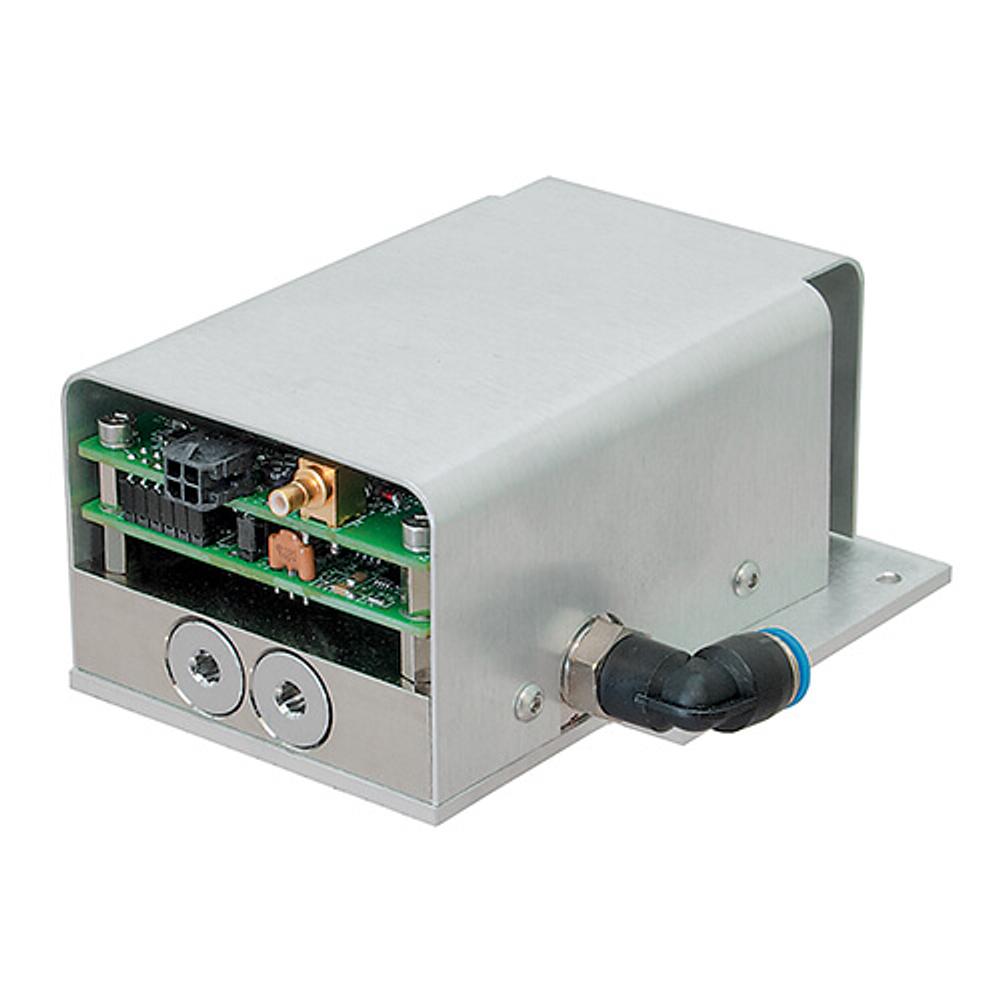

DP-SP series Pockels cell drivers can be used for single pulse selection in pulse picker applications for higher repetition rate lasers. While repetition rate can be up to 1 MHz, the standard range of possible pulse durations is from 15 ns to 5000 ns.
Features:
- Short circuit protection at driver output
- Driver pad overheat sensor stops operation when overheated
- Overheat optocoupled output signal
- LED for error indication (overheat and short circuit)
- Alternative aluminum case option featuring conductive cooling possibility and relocated water and HV output connectors (Option 1)
DP-SP series units are available in two versions: "open frame" which is ideal for OEM manufacturers incorporating drivers in their own systems and encased in aluminum housings. Encasing of Pockels cell driver in aluminum housing solves two problems: shields both humans and electronics from high voltage impact from operating Pockels cell driver, and protects driver itself from potentially harmful external contact - ensuring safe operation and driver longevity. The housed option is especially handy for researchers and custom product manufacturers who use these drivers during their own systems build-up.
