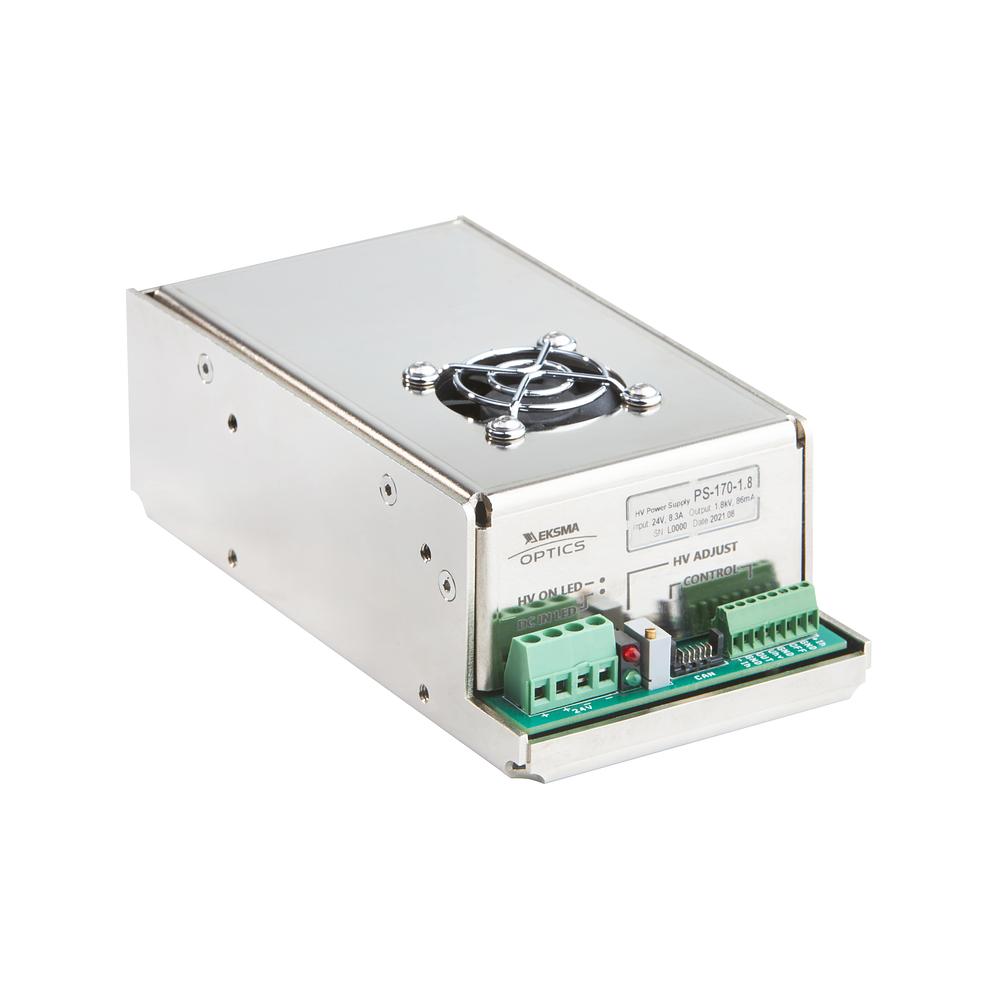

PS Series OEM High Voltage Power Supply
PS series Power supplies are designed for powering Pockels cell drivers with required power and voltage. Due to its performance and reliable design, PS is good choice for OEM customers. It features high stability low… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
Max output power
Any
or
Max HV output
Any
or
Voltage Control
Any
or
Voltage Control Limits
Any
or
52
catalog variants — refine the spec to narrow it down.
| SKU | Voltage Control Limits · Max HV output · Max output power · Group · Voltage Control | |
|---|---|---|
| EK-USBCAN | HV power supplies with maximal output power - 170 W |
Out of stock
$432
|
| PS-120-1.8 | 0.8-1.8 kV·1.8 kV·120W·HV power supplies with maximal output power - 120 W·Internal trimmer |
Out of stock
$1,686
|
| PS-120-2.6 | 1.6-2.6 kV·2.6 kV·120W·HV power supplies with maximal output power - 120 W·Internal trimmer |
Out of stock
$1,686
|
| PS-120-3.1 | 2.1-3.1 kV·3.1 kV·120W·Internal trimmer |
Out of stock
—
|
| PS-120-3.6 | 2.6-3.6 kV·3.6 kV·120W·HV power supplies with maximal output power - 120 W·Internal trimmer |
Out of stock
$1,686
|
| PS-120C-1.8 | 0.7-1.8 kV·1.8 kV·120W·CAN |
Out of stock
—
|
| PS-120C-2.6 | 1.0-2.6 kV·2.6 kV·120W·HV power supplies with maximal output power - 120 W·CAN |
1 in stock
Ships in: 2–5 calendar days
$1,782
|
| PS-120C-3.1 | 1.2-3.1 kV·3.1 kV·120W·CAN |
Out of stock
—
|
| PS-120C-3.6 | 1.4-3.6 kV·3.6 kV·120W·HV power supplies with maximal output power - 120 W·CAN |
Out of stock
$1,782
|
| PS-170-1.8 | 0.7-1.8 kV·1.8 kV·170W·Internal trimmer or CAN |
Out of stock
—
|
| PS-170-2.6 | 1.0-2.6 kV·2.6 kV·170W·Internal trimmer or CAN |
Out of stock
—
|
| PS-170-3.6 | 1.4-3.6 kV·3.6 kV·170W·Internal trimmer or CAN |
Out of stock
—
|
| PS-2x85-1.5 | ±0.6 - ±1.5 kV·±1.5 kV·2x85W·Internal trimmer or CAN |
Out of stock
—
|
| PS-2x85-1.8 | ±0.7 - ±1.8 kV·±1.8 kV·2x85W·Internal trimmer or CAN |
Out of stock
—
|
| PS-40-1.3 | 0.5-1.3 kV·1.3 kV·40 W·HV power supplies with maximal output power - 40 W·Internal trimmer |
Out of stock
$1,404
|
| PS-40-1.8 | 0.8-1.8 kV·1.8 kV·40 W·HV power supplies with maximal output power - 40 W·Internal trimmer |
Out of stock
$1,404
|
| PS-40-2.5 | 1.6-2.5 kV·2.5 kV·40 W·HV power supplies with maximal output power - 40 W·Internal trimmer |
Out of stock
$1,404
|
| PS-40-3.6 | 2.6-3.6 kV·3.6 kV·40 W·HV power supplies with maximal output power - 40 W·Internal trimmer |
Out of stock
$1,404
|
| PS-40-4.0 | 3.0-4.0 kV·4.0 kV·40 W·HV power supplies with maximal output power - 40 W·Internal trimmer |
Out of stock
$1,404
|
| PS-40C-1.3 | 0.5-1.3 kV·1.3 kV·40 W·HV power supplies with maximal output power - 40 W·CAN |
Out of stock
$1,482
|
| PS-40C-1.8 | 0.7-1.8 kV·1.8 kV·40 W·CAN |
Out of stock
—
|
| PS-40C-2.5 | 1.0-2.5 kV·2.5 kV·40 W·HV power supplies with maximal output power - 40 W·CAN |
Out of stock
$1,482
|
| PS-40C-3.6 | 1.4-3.6 kV·3.6 kV·40 W·HV power supplies with maximal output power - 40 W·CAN |
Out of stock
$1,482
|
| PS-40C-4.0 | 1.6-4.0 kV·4.0 kV·40 W·HV power supplies with maximal output power - 40 W·CAN |
Out of stock
$1,482
|
| PS-5-1.8 | 0.8-1.8 kV·1.8 kV·5 W·HV power supplies with maximal output power - 5 W·Internal trimmer |
Out of stock
$1,344
|
| PS-5-2.8 | 1.8-2.8 kV·2.8 kV·5 W·HV power supplies with maximal output power - 5 W·Internal trimmer |
Out of stock
$1,344
|
| PS-5-4.0 | 3.0-4.0 kV·4.0 kV·5 W·HV power supplies with maximal output power - 5 W·Internal trimmer |
Out of stock
$1,344
|
| PS-5-4.4 | 3.4-4.4 kV·4.4 kV·5 W·HV power supplies with maximal output power - 5 W·Internal trimmer |
Out of stock
$1,344
|
| PS-5-5.0 | 4.0-5.0 kV·5.0 kV·5 W·HV power supplies with maximal output power - 5 W·Internal trimmer |
Out of stock
$1,344
|
| PS-5C-1.8 | 0.7-1.8 kV·1.8 kV·5 W·HV power supplies with maximal output power - 5 W·CAN |
Out of stock
$1,404
|
| PS-5C-2.8 | 1.1-2.8 kV·2.8 kV·5 W·HV power supplies with maximal output power - 5 W·CAN |
2 in stock
Ships in: 2–5 calendar days
$1,404
|
| PS-5C-4.0 | 1.6-4.0 kV·4.0 kV·5 W·HV power supplies with maximal output power - 5 W·CAN |
Out of stock
$1,404
|
| PS-5C-4.4 | 1.8-4.4 kV·4.4 kV·5 W·HV power supplies with maximal output power - 5 W·CAN |
2 in stock
Ships in: 2–5 calendar days
$1,404
|
| PS-5C-5.0 | 2.0-5.0 kV·5.0 kV·5 W·HV power supplies with maximal output power - 5 W·CAN |
1 in stock
Ships in: 2–5 calendar days
$1,404
|
| PS-80-1.8 | 0.8-1.8 kV·1.8 kV·80 W·HV power supplies with maximal output power - 80 W·Internal trimmer |
Out of stock
$1,656
|
| PS-80-2.6 | 1.6-2.6 kV·2.6 kV·80 W·HV power supplies with maximal output power - 80 W·Internal trimmer |
Out of stock
$1,656
|
| PS-80-3.1 | 2.1-3.1 kV·3.1 kV·80 W·HV power supplies with maximal output power - 80 W·Internal trimmer |
Out of stock
$1,656
|
| PS-80-3.6 | 2.6-3.6 kV·3.6 kV·80 W·HV power supplies with maximal output power - 80 W·Internal trimmer |
Out of stock
$1,656
|
| PS-80-4.0 | 3.0-4.0 kV·4.0 kV·80 W·Internal trimmer |
Out of stock
—
|
| PS-80C-1.8 | 0.7-1.8 kV·1.8 kV·80 W·HV power supplies with maximal output power - 80 W·CAN |
Out of stock
$1,818
|
| PS-80C-2.6 | 1.0-2.6 kV·2.6 kV·80 W·HV power supplies with maximal output power - 80 W·CAN |
Out of stock
$1,818
|
| PS-80C-3.1 | 1.3-3.1 kV·3.1 kV·80 W·CAN |
Out of stock
—
|
| PS-80C-3.6 | 1.4-3.6 kV·3.6 kV·80 W·HV power supplies with maximal output power - 80 W·CAN |
Out of stock
$1,818
|
| PS-80C-4.0 | 1.6-4.0 kV·4.0 kV·80 W·CAN |
Out of stock
—
|
| PS2-60-1.4 | ±0.6 - ±1.4 kV·±1.4 kV·2x60W·HV power supplies with maximal output power - 120 W·Internal trimmer |
Out of stock
$1,710
|
| PS2-60-2.0 | ±1.0 - ±2.0 kV·±2.0 kV·2x60W·HV power supplies with maximal output power - 120 W·Internal trimmer |
Out of stock
$1,710
|
| PS2-60-2.6 | ±1.6-2.6 kV·±2.6 kV·2x60W·HV power supplies with maximal output power - 120 W·Internal trimmer |
Out of stock
$1,710
|
| PS2-60-3.6 | ±2.6-3.6 kV·±3.6 kV·2x60W·Internal trimmer |
Out of stock
—
|
| PS2-60C-1.4 | ±0.6 - ±1.4 kV·±1.4 kV·2x60W·HV power supplies with maximal output power - 120 W·CAN |
Out of stock
$1,818
|
| PS2-60C-2.0 | ±0.8 - ±2.0 kV·±2.0 kV·2x60W·HV power supplies with maximal output power - 120 W·CAN |
Out of stock
$1,818
|
| PS2-60C-2.6 | ±1.1-2.6 kV·±2.6 kV·2x60W·HV power supplies with maximal output power - 120 W·CAN |
2 in stock
Ships in: 2–5 calendar days
$1,818
|
| PS2-60C-3.6 | ±1.4-3.6 kV·±3.6 kV·2x60W·HV power supplies with maximal output power - 120 W·CAN |
Out of stock
$1,818
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| MODEL | PS-5 | PS-40 | PS-80 | PS-120 | PS2-60 | PS-170 | PS-2x85 |
|---|---|---|---|---|---|---|---|
| Maximal high voltage / output options¹⁾ | 1.8 kV / 2.8 kV / 4.0 kV / 4.4 kV / 5.0 kV | 1.3 kV / 1.8 kV / 2.5 kV / 3.6 kV / 4.0 kV | 1.8 kV / 2.6 kV / 3.1 kV / 3.6 kV / 4.0 kV | 1.8 kV / 2.6 kV / 3.1 kV / 3.6 kV | ±1.4 kV / ±2.0 kV / ±2.6 kV / ±3.6 kV | 1.8 kV / 2.6 kV / 3.6 kV | ±1.5 kV / ±1.8 kV |
| Maximal output power at / maximal output voltage²⁾ | 5 W | 40 W | 80 W | 120 W | 2 x 60 W | 170 W | 2 x 85 W |
| Voltage control limits | Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN) | Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN) | Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN) | Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN) | Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN) | 40% Umax to Umax | 40% Umax to Umax |
| Output voltage control options³⁾ | CAN interface⁴⁾, internal trimmer potentiometer | CAN interface⁴⁾, internal trimmer potentiometer | CAN interface⁴⁾, internal trimmer potentiometer | CAN interface⁴⁾, internal trimmer potentiometer | CAN interface⁴⁾, internal trimmer potentiometer | CAN interface⁴⁾, internal trimmer potentiometer | CAN interface⁴⁾, internal trimmer potentiometer |
| External powering | 24 V DV, / <15 W | 24 V DV, / <50 W | 24 V DV, / <90 W | 24 V DV, / <150 W | 24 V DV, / <150 W | 24 V DV, / <200 W | 24 V DV, / <200 W |
| Dimensions (LxWxH) mm | 135x70x30 | 160x70x40 | 175x70x45 | 175x110x45 | 175x110x45 | 152x80x58 | 152x80x58 |
| Mounting holes / ⌀3.4 mm location - mm | 125x35 | 150x60 | 165x60 | 165x100 | 165x100 |
Description
PS series Power supplies are designed for powering Pockels cell drivers with required power and voltage. Due to its performance and reliable design, PS is good choice for OEM customers. It features high stability low ripple output together with convenient voltage control by internal trimmer or CAN computer interface.
Schematics design is based on resonant technology that gives significantly lower EMI level in comparison to most of competitors.
Power supplies PS-120 and PS2-60 are equipped with overheat protection and LED indicator that stops operation and lights if ambient temperature exceeds 55 °C.
Features:
- Up to 170W at the output
- 24VDC powering
- 92% conversion efficiency
- Internal trimmer potentiometer and/or CAN interface control
Downloads
PDF
EKSMA_Optics_OEM_Type_High_Voltage_Power_Supply-PS.pdf
PDF · 201 KB
PDF
PS-5_PS-5C_series_HV_Power_supply_manual.pdf
PDF · 1.57 MB
PDF
PS-40_PS-40C_series_HV_Power_supply_manual.pdf
PDF · 1.44 MB
PDF
PS-80_PS-80C_series_HV_Power_supply_manual.pdf
PDF · 1.35 MB
PDF
EKSMA_Optics_Manual_PS-170_PS2-85.pdf
PDF · 1.5 MB
PDF
EKSMA_Optics_Manual_PS120_PS120C_PS2-60_PS2-60C.pdf
PDF · 822 KB
