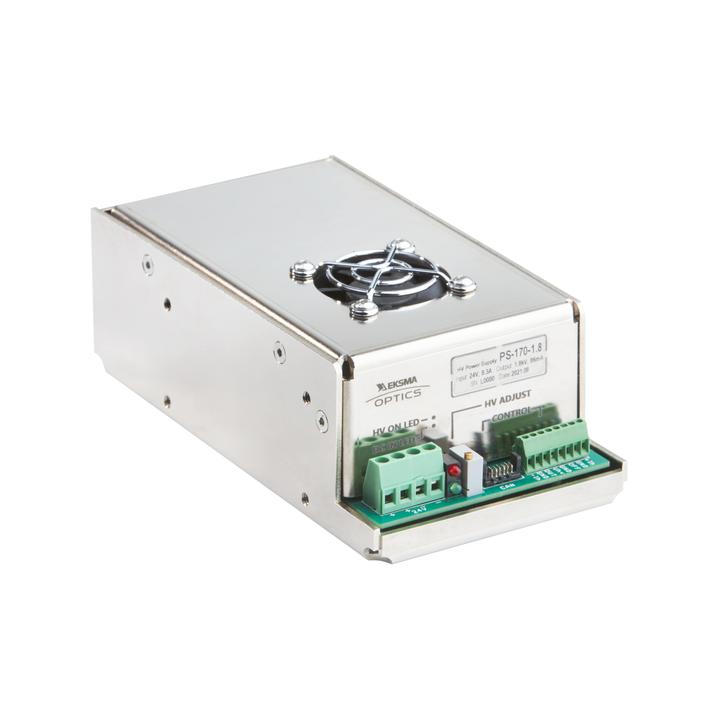

PS Series OEM High Voltage Power Supply SKU: PS2-60C-1.4

PS series Power supplies are designed for powering Pockels cell drivers with required power and voltage. Due to its performance and reliable design, PS is good choice for OEM customers. It features high stability low ripple output together with convenient voltage control by…

Variant specifications

Specification	Value
Max output power	2x60W
Max HV output	±1.4 kV
Voltage Control	CAN
Voltage Control Limits	±0.6 - ±1.4 kV
Group	HV power supplies with maximal output power - 120 W

Shared product specifications

These specifications apply across the PS Series OEM High Voltage Power Supply product family.

MODEL	PS-5	PS-40	PS-80	PS-120	PS2-60	PS-170	PS-2x85
Maximal high voltage / output options¹⁾	1.8 kV / 2.8 kV / 4.0 kV / 4.4 kV / 5.0 kV	1.3 kV / 1.8 kV / 2.5 kV / 3.6 kV / 4.0 kV	1.8 kV / 2.6 kV / 3.1 kV / 3.6 kV / 4.0 kV	1.8 kV / 2.6 kV / 3.1 kV / 3.6 kV	±1.4 kV / ±2.0 kV / ±2.6 kV / ±3.6 kV	1.8 kV / 2.6 kV / 3.6 kV	±1.5 kV / ±1.8 kV
Maximal output power at / maximal output voltage²⁾	5 W	40 W	80 W	120 W	2 x 60 W	170 W	2 x 85 W
Voltage control limits	Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN)	Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN)	Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN)	Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN)	Umax -1 kV to Umax (internal trimmer); / 40% Umax to Umax (CAN)	40% Umax to Umax	40% Umax to Umax
Output voltage control options³⁾	CAN interface⁴⁾, internal trimmer potentiometer	CAN interface⁴⁾, internal trimmer potentiometer	CAN interface⁴⁾, internal trimmer potentiometer	CAN interface⁴⁾, internal trimmer potentiometer	CAN interface⁴⁾, internal trimmer potentiometer	CAN interface⁴⁾, internal trimmer potentiometer	CAN interface⁴⁾, internal trimmer potentiometer
External powering	24 V DV, / <15 W	24 V DV, / <50 W	24 V DV, / <90 W	24 V DV, / <150 W	24 V DV, / <150 W	24 V DV, / <200 W	24 V DV, / <200 W
Dimensions (LxWxH) mm	135x70x30	160x70x40	175x70x45	175x110x45	175x110x45	152x80x58	152x80x58
Mounting holes / ⌀3.4 mm location - mm	125x35	150x60	165x60	165x100	165x100
