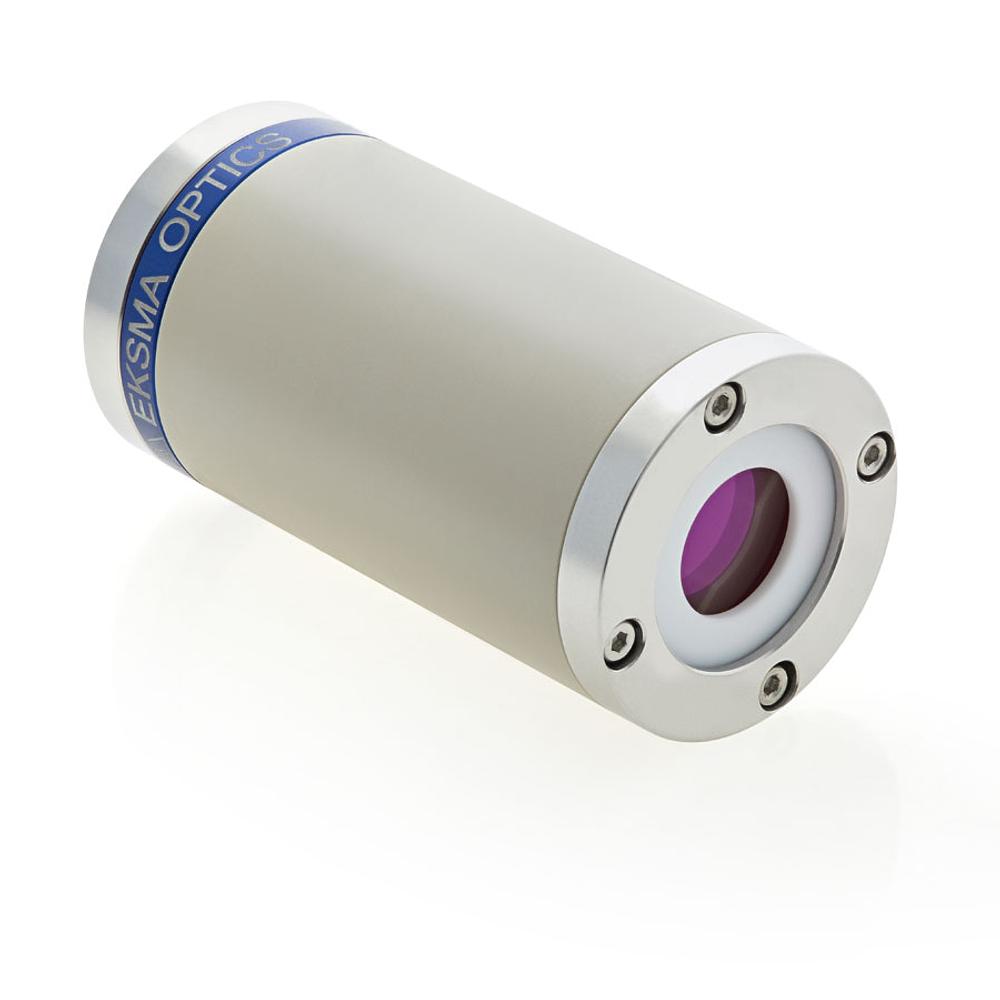

BBO Pockels Cells
Features: • minimal piezoelectric ringing • low absorption • ceramic aperture is available • broad transmission range from 200 nm to 2000 nm • compact size Applications: • high repetition rate DPSS… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Material | Shape Type | Design wavelength | Quarter-wave DC voltage | Sealing | |
|---|---|---|---|---|---|---|---|
| PCB3D-C-1030 | Transverse Field PC | BBO | Round | 1030 nm | 1.7 kV | Sealed |
5 in stock
Ships in: 2–5 calendar days
$2,904
|
| PCB3D-C-1064 | Transverse Field PC | BBO | Round | 1064 nm | 1.8 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$2,904
|
| PCB3D-C-800 | Transverse Field PC | BBO | Round | 800 nm | 1.3 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$3,768
|
| PCB3D/25-C-1030 | Transverse Field PC | BBO | Round | 1030 nm | 1.4 kV | Sealed |
2 in stock
Ships in: 2–5 calendar days
$3,960
|
| PCB3D/25-C-1064 | Transverse Field PC | BBO | Round | 1064 nm | 1.5 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$3,960
|
| PCB3S-C-1030 | Transverse Field PC | BBO | Round | 1030 nm | 3.4 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$1,860
|
| PCB3S-C-1064 | Transverse Field PC | BBO | Round | 1064 nm | 3.5 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$1,860
|
| PCB3S-C-800 | Transverse Field PC | BBO | Round | 800 nm | 2.6 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$3,120
|
| PCB3S/25-C-1030 | Transverse Field PC | BBO | Round | 1030 nm | 2.9 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$2,394
|
| PCB3S/25-C-1064 | Transverse Field PC | BBO | Round | 1064 nm | 3 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$2,394
|
| PCB4D-C-1030 | Transverse Field PC | BBO | Round | 1030 nm | 2.2 kV | Sealed |
13 in stock
Ships in: 2–5 calendar days
$3,912
|
| PCB4D-C-1064 | Transverse Field PC | BBO | Round | 1064 nm | 2.3 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$3,912
|
| PCB4D-C-800 | Transverse Field PC | BBO | Round | 800 nm | 1.7 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$5,268
|
| PCB4S-C-1030 | Transverse Field PC | BBO | Round | 1030 nm | 4.5 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$2,388
|
| PCB4S-C-1064 | Transverse Field PC | BBO | Round | 1064 nm | 4.6 kV | Sealed |
1 in stock
Ships in: 2–5 calendar days
$2,388
|
| PCB6.3D-C-1030 | Transverse Field PC | BBO | Round | 1030 nm | 3.75 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$9,900
|
| PCB6.3D-C-1064 | Transverse Field PC | BBO | Round | 1064 nm | 3.8 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$9,900
|
| PCB6.3S-C-1030 | Transverse Field PC | BBO | Round | 1030 nm | 7.4 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$5,100
|
| PCB6.3S-C-1064 | Transverse Field PC | BBO | Round | 1064 nm | 7.5 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$5,100
|
| PCB8D-C-1030 | Transverse Field PC | BBO | Round | 1030 nm | 4.5 kV | Sealed |
Out of stock
Ships in: 57–60 calendar days
$15,540
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Transverse Field PC |
| Material | BBO |
| Shape Type | Round |
| Transmission, % | 98 % - 100 % |
| Sealing | Sealed |
Description
Features:
- minimal piezoelectric ringing
- low absorption
- ceramic aperture is available
- broad transmission range from 200 nm to 2000 nm
- compact size
Applications:
- high repetition rate DPSS Q-switch
- high repetition rate regenerative amplifier control
- cavity dumping
- beam chopper
Pockels cell are used to change the polarization state of light passing through it when a voltage is applied to the electrodes of electro-optic crystals such as BBO. When used in conjunction with polarizer, Pockels cells can be used as fast optical switches. Typical applications include Q-switching of the laser cavity, laser cavity dumping and coupling light into and from regenerative amplifiers.
BBO based Pockels cells can be useful at wavelengths from the UV to more than 2 μm. Low piezoelectric ringing makes these Pockels cells attractive for the control of high-power and high pulse repetition rate lasers. Fast switching electronic drivers properly matched to the cell are available for Q-switching, cavity dumping and other applications. Pockels cells of PCB series are transverse field devices. Low electro-optical coefficient of BBO results in high operating voltages. The quarter-wave voltage is proportional to the ratio of electrode spacing and crystal length. As a result, smaller aperture devices have lower quarter-wave, however even for 2.5 mm aperture devices the quarter-wave voltage is as high as 4 kV @ 1064 nm. Double crystal design is employed to reduce required voltages and to allow operation in half-wave mode with fast switching times.
