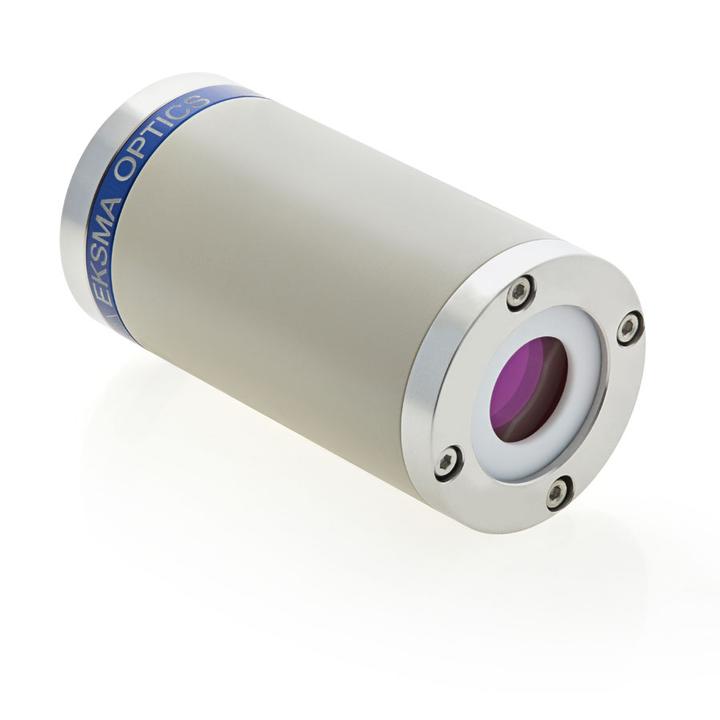

BBO Pockels Cells SKU: PCB4D-C-800

Features: • minimal piezoelectric ringing • low absorption • ceramic aperture is available • broad transmission range from 200 nm to 2000 nm • compact size Applications: • high repetition rate DPSS Q-switch • high repetition rate regenerative amplifier…

Variant specifications

Specification	Value
Central wavelength	800 nm
Quarter Wave Voltage*	<1.7 kV DC
Clear aperture	ø 3.5 mm
Application	Ti:Sapphire femtosecond lasers
Group	BBO Pockels Cells for 770-820 nm range

Shared product specifications

These specifications apply across the BBO Pockels Cells product family.

Model	PCB3S	PCB3D	PCB3S / 25	PCB3D / 25
Clear aperture diameter, mm	2.5	2.5	2.5	2.5
Crystal size (WxHxL), mm	3x3x20	3x3x20	3x3x25	3x3x25
Quantity of crystals	1	2	1	2
λ / 4 voltage (@ 1064 nm), kV DC	<3.5	<1.8	<3.0	<1.5
Capacitance, pF	4	6	4	6
Optical transmission, %	>98	>98	>98	>98
Contrast ratio ¹⁾	>1:1000	>1:500	>1:1000	>1:500
Cell size, mm	Ø25.4x37.2	Ø25.4x57.2	Ø25.4x42.2	Ø25.4x67.2

Model	PCB4S	PCB4D	PCB4Q-C
Clear aperture diameter, mm	3.5	3.5	3.5
Crystal size (WxHxL), mm	4x4x20	4x4x20	4x4x20
Quantity of crystals	1	2	4
λ / 4 voltage (@ 1064 nm), kV DC	<4.6	<2.3	< 2 x 1.3
Capacitance, pF	3	6	2×<6
Optical transmission, %	>98	>98	>98
Contrast ratio ¹⁾	>1:1000	>1:500	>1:500
Cell size, mm	Ø25.4x37.2	Ø25.4x57.2	Ø25.4x112

Model	PCB6.3S	PCB6.3D	PCB8D
Clear aperture diameter, mm	5.8	5.8	7.5
Crystal size (WxHxL), mm	6.3x6.3x20	6.3x6.3x20	8x8x20
Quantity of crystals	1	2	2
λ / 4 voltage (@ 1064 nm), kV DC	<7.5	<3,8	<4.6
Capacitance, pF	6	<8	<8
Optical transmission, %	>98	>98	>98
Contrast ratio ¹⁾	>1:1000	>1:500	>1:500
Cell size, mm	Ø35x42.2	Ø35x68	Ø35x64
