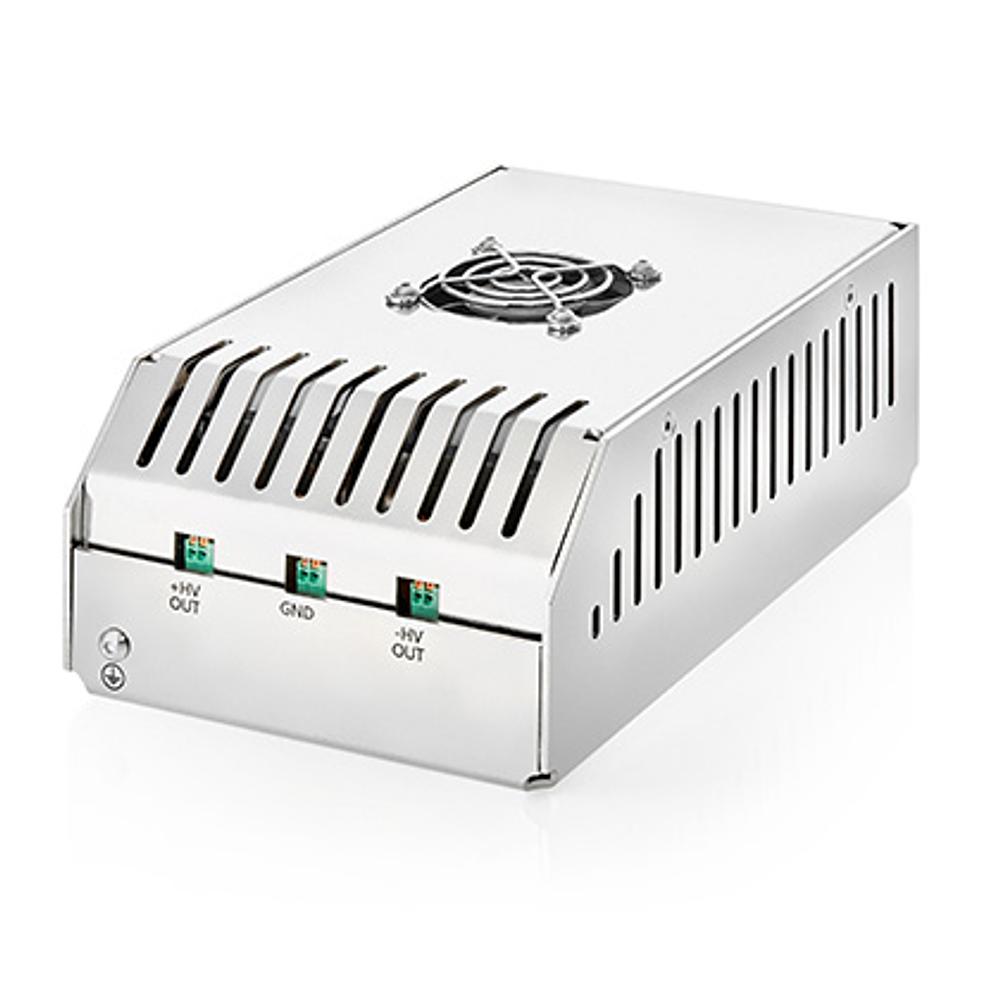

HV Series OEM High Voltage Power Supplies
OEM type HV series power supply modules are designed to be used with high power and high repetition rate Pockels cell drivers that require >120 W power from HV source. To extend the versatility of possible applications… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Max HV output · Max output power | |
|---|---|---|
| HV-200-1.8 | 1.8 kV·200 W |
Out of stock
—
|
| HV-200-2.6 | 2.6 kV·200 W |
Out of stock
$2,724
|
| HV-200-3.6 | 3.6 kV·200 W |
2 in stock
Ships in: 2–5 calendar days
$2,724
|
| HV-200-4.0 | 4.0 kV·200 W |
Out of stock
—
|
| HV-2x200-1.5 | +/- 1.5 kV·2x200 W |
Out of stock
$3,288
|
| HV-2x200-2.0 | +/- 2.0 kV·2x200 W |
Out of stock
$3,288
|
| HV-2x200-2.6 | +/- 2.6 kV·2x200 W |
Out of stock
—
|
| HV-2x200-3.6 | +/- 3.6 kV·2x200 W |
Out of stock
$3,288
|
| HV-400-1.8 | 1.8 kV·400 W |
Out of stock
$3,120
|
| HV-400-2.6 | 2.6 kV·400 W |
Out of stock
—
|
| HV-400-3.6 | 3.6 kV·400 W |
Out of stock
—
|
| HV-400-4.0 | 4.0 kV·400 W |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Model | HV-200 | HV-400 | HV-2x200 |
|---|---|---|---|
| Maximal high voltage output options | 1.8 kV / 2.6 kV / 3.6 kV / 4.0 kV¹⁾ ²⁾ | 1.8 kV / 2.6 kV / 3.6 kV / 4.0 kV¹⁾ ²⁾ | ±1.5 kV / ±2.0 kV / ±2.6 kV / ±3.6 kV |
| Maximal output | 200 W¹⁾ | 400 W²⁾ | 2 x 200 W |
| Voltage control range | 0 - Umax | 0 - Umax | 0 - Umax |
| Auxiliary output | CAN, RS232, internal trimmer potentiometer | CAN, RS232, internal trimmer potentiometer | CAN, RS232, internal trimmer potentiometer |
| Powering | 48 V, 4.5 A | 48 V, 9 A | 48 V, 9 A |
| Dimensions | 200 x 118 x 75 mm | 200 x 118 x 75 mm | 200 x 118 x 75 mm |
Description
OEM type HV series power supply modules are designed to be used with high power and high repetition rate Pockels cell drivers that require >120 W power from HV source. To extend the versatility of possible applications we offer both single (positive) polarity and bipolar HV series power supplies.
HV power supplies can also be used as universal HV power supplies for different applications where up to 200 – 400 W high voltage source is required. HV series module provides maximal power (200 W or 400 W) at the indicated maximal rated voltage only. Therefore, the required rated voltage should be noted when ordering (possible options are listed in the specifications table).
The input of HV series power supply is 48 VDC. 24 VDC auxiliary output is a convenient feature to use the module as a single power source (high plus low voltage) with one of Eksma Optics Pockels cell drivers. The output voltage can be tuned from zero to maximal value using an internal trimmer potentiometer, CAN or RS232 interfaces. Analog control (0-10V) is possible under request.
Features:
- Up to 400 W and 4 kV at the output
- Single polarity HV and bipolar HV-2x versions
- Computer control through CAN and RS232
- 48 VDC powering
- Auxiliary 24 VDC output for Pockels cell drivers
