Laser Harmonic Separators with High Transmission
• IBS coated for high power lasers • Laser damage threshold >10 J/cm², 8 nsec pulse, 1064 nm typical • Transmitted wavelength: T>99% • Back side anti-reflection coated
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Diameter
12.7 mm - 25.4 mm · 2 values
Any
mm
mm
Surface 1, Wavelength 1
Wavelength
266 nm - 1064 nm · 4 values
Any
nm
nm
Reflectivity, %
Any
%
%
AOI (angle of incidence)
Any
deg;min;sec
deg;min;sec
16
catalog variants — refine the spec to narrow it down.
| SKU | Shape Type | Diameter | Material | Surface Shape | Coating | Wavelength | Reflectivity, % | AOI (angle of incidence) | Polarization | |
|---|---|---|---|---|---|---|---|---|---|---|
| 041-2510HT | Round | 12.7 mm | UVFS | Plano | HR | 266 nm | > 99 % | 0 deg | avg |
27 in stock
Ships in: 2–5 calendar days
$234
|
| 041-2515HT | Round | 12.7 mm | UVFS | Plano | HR | 266 nm | > 99 % | 45 deg | avg |
Out of stock
Ships in: 62–65 calendar days
$234
|
| 041-3510HT | Round | 12.7 mm | UVFS | Plano | HR | 355 nm | > 99.5 % | 0 deg | avg |
1 in stock
Ships in: 2–5 calendar days
$222
|
| 041-3515HT | Round | 12.7 mm | UVFS | Plano | HR | 355 nm | > 99.5 % | 45 deg | avg |
11 in stock
Ships in: 2–5 calendar days
$222
|
| 041-5100HT | Round | 12.7 mm | UVFS | Plano | HR | 532 nm | > 99.9 % | 0 deg | — |
22 in stock
Ships in: 2–5 calendar days
$192
|
| 041-5105HT | Round | 12.7 mm | UVFS | Plano | HR | 532 nm | > 99.9 % | 45 deg | avg |
Out of stock
Ships in: 62–65 calendar days
$192
|
| 041-6500HT | Round | 12.7 mm | UVFS | Plano | HR | 1064 nm | > 99.9 % | 0 deg | — |
10 in stock
Ships in: 2–5 calendar days
$198
|
| 041-6505HT | Round | 12.7 mm | UVFS | Plano | HR | 1064 nm | > 99.5 % | 45 deg | avg |
41 in stock
Ships in: 2–5 calendar days
$198
|
| 042-2510HT | Round | 25.4 mm | UVFS | Plano | HR | 266 nm | > 99 % | 0 deg | avg |
8 in stock
Ships in: 2–5 calendar days
$294
|
| 042-2515HT | Round | 25.4 mm | UVFS | Plano | HR | 266 nm | > 99 % | 45 deg | avg |
2 in stock
Ships in: 2–5 calendar days
$294
|
| 042-3510HT | Round | 25.4 mm | UVFS | Plano | HR | 355 nm | > 99.5 % | 0 deg | avg |
44 in stock
Ships in: 2–5 calendar days
$282
|
| 042-3515HT | Round | 25.4 mm | UVFS | Plano | HR | 355 nm | > 99.5 % | 45 deg | avg |
137 in stock
Ships in: 2–5 calendar days
$282
|
| 042-5100HT | Round | 25.4 mm | UVFS | Plano | HR | 532 nm | > 99.9 % | 0 deg | — |
105 in stock
Ships in: 2–5 calendar days
$246
|
| 042-5105HT | Round | 25.4 mm | UVFS | Plano | HR | 532 nm | > 99.9 % | 45 deg | avg |
Out of stock
Ships in: 62–65 calendar days
$246
|
| 042-6500HT | Round | 25.4 mm | UVFS | Plano | HR | 1064 nm | > 99.9 % | 0 deg | — |
29 in stock
Ships in: 2–5 calendar days
$252
|
| 042-6505HT | Round | 25.4 mm | UVFS | Plano | HR | 1064 nm | > 99.5 % | 45 deg | avg |
19 in stock
Ships in: 2–5 calendar days
$252
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Material | UVFS |
| Parallelism, angle | 0 - 30 sec |
Surface 1
| Surface Shape | Plano |
| Power, fringes @633 nm | 0 fr |
Surface 1, Wavelength 1
| Coating | HR |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
Surface 2, Wavelength 1
| Coating | AR |
Description
- IBS coated for high power lasers
- Laser damage threshold >10 J/cm², 8 nsec pulse, 1064 nm typical

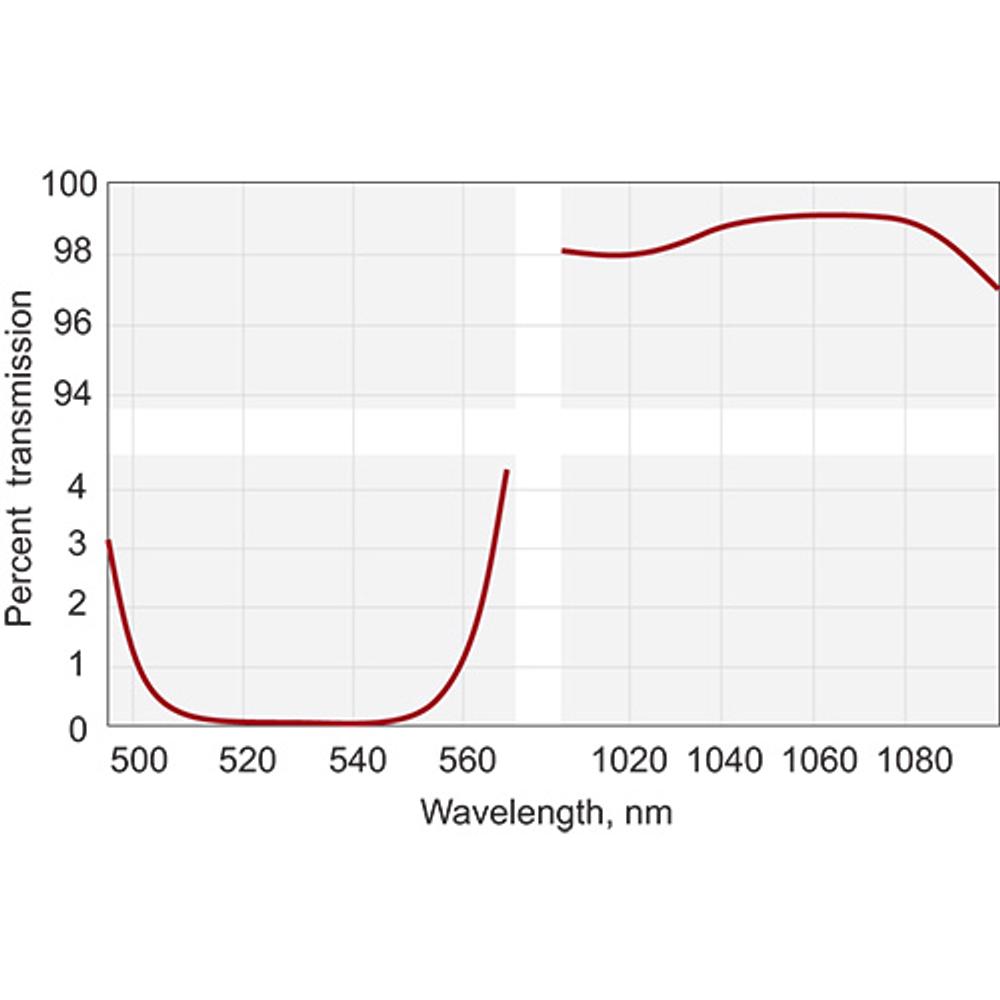

- Transmitted wavelength: T>99%
- Back side anti-reflection coated
