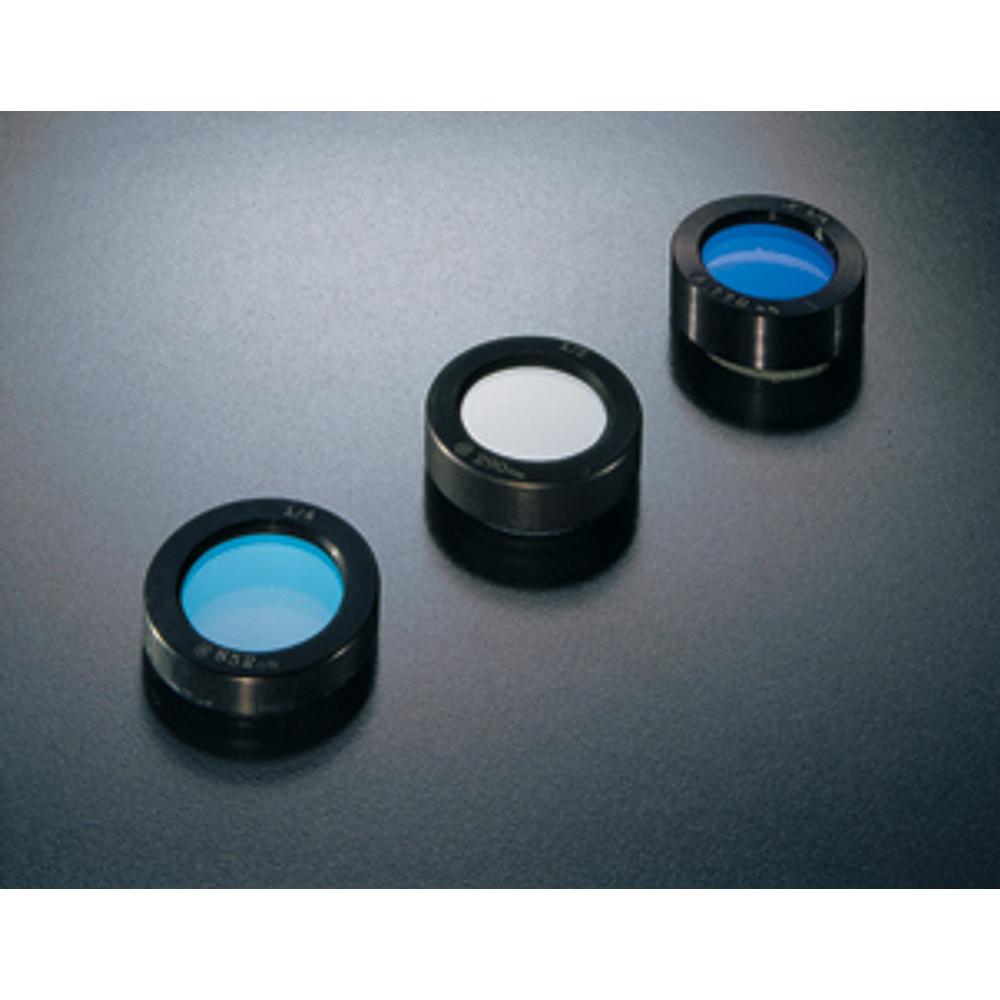

Low Order Wave Plates

Low Order Wave Plates

• Thinner than multiple order • Less than 8 order • Less temperature and wavelength dependent than multiple order Made from high quallity optical grade crystalline quartz quarter wave and half wave retardation… Read more →

From $126 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 12.7 mm - 20 mm · 2 values Any mm
mm
Mounted Any

Wavelength 1

Design Wavelength Range 257 nm - 1550 nm · 20 values Any nm
nm
Retardation Any
56 catalog variants — refine the spec to narrow it down.
SKU Product Type Shape Type Diameter Mounted Material Design Wavelength Range Retardation Retardation Accuracy
461-4201 Low Order Round 20 mm True Crystal Quartz 1550 nm - 1550 nm L/2 <L/300
3 in stock Ships in: 2–5 calendar days
$192
461-4201D12 Low Order Round 12.7 mm False Crystal Quartz 1550 nm - 1550 nm L/2 <L/300
27 in stock Ships in: 2–5 calendar days
$126
461-4205 Low Order Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L/2 <L/300
13 in stock Ships in: 2–5 calendar days
$192
461-4205D12 Low Order Round 12.7 mm False Crystal Quartz 1064 nm - 1064 nm L/2 <L/300
90 in stock Ships in: 2–5 calendar days
$126
461-4206 Low Order Round 20 mm True Crystal Quartz 1053 nm - 1053 nm L/2 <L/300
1 in stock Ships in: 2–5 calendar days
$192
461-4208 Low Order Round 20 mm True Crystal Quartz 1030 nm - 1030 nm L/2 <L/300
55 in stock Ships in: 2–5 calendar days
$192
461-4208D12 Low Order Round 12.7 mm False Crystal Quartz 1030 nm - 1030 nm L/2 <L/300
56 in stock Ships in: 2–5 calendar days
$126
461-4210 Low Order Round 20 mm True Crystal Quartz 950 nm - 950 nm L/2 <L/300
3 in stock Ships in: 2–5 calendar days
$192
461-4213 Low Order Round 20 mm True Crystal Quartz 852 nm - 852 nm L/2 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4215 Low Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L/2 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4215D12 Low Order Round 12.7 mm False Crystal Quartz 800 nm - 800 nm L/2 <L/300
2 in stock Ships in: 2–5 calendar days
$126
461-4220 Low Order Round 20 mm True Crystal Quartz 780 nm - 780 nm L/2 <L/300
10 in stock Ships in: 2–5 calendar days
$192
461-4220D12 Low Order Round 12.7 mm False Crystal Quartz 780 nm - 780 nm L/2 <L/300
14 in stock Ships in: 2–5 calendar days
$126
461-4221 Low Order Round 20 mm True Crystal Quartz 770 nm - 770 nm L/2 <L/300
8 in stock Ships in: 2–5 calendar days
$192
461-4225 Low Order Round 20 mm True Crystal Quartz 633 nm - 633 nm L/2 <L/300
9 in stock Ships in: 2–5 calendar days
$192
461-4225D12 Low Order Round 12.7 mm False Crystal Quartz 633 nm - 633 nm L/2 <L/300
9 in stock Ships in: 2–5 calendar days
$126
461-4228 Low Order Round 20 mm True Crystal Quartz 589 nm - 589 nm L/2 <L/300
11 in stock Ships in: 2–5 calendar days
$192
461-4230 Low Order Round 20 mm True Crystal Quartz 532 nm - 532 nm L/2 <L/300
1 in stock Ships in: 2–5 calendar days
$192
461-4230D12 Low Order Round 12.7 mm False Crystal Quartz 532 nm - 532 nm L/2 <L/300
11 in stock Ships in: 2–5 calendar days
$126
461-4231 Low Order Round 20 mm True Crystal Quartz 527 nm - 527 nm L/2 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4232 Low Order Round 20 mm True Crystal Quartz 515 nm - 515 nm L/2 <L/300
1 in stock Ships in: 2–5 calendar days
$192
461-4232D12 Low Order Round 12.7 mm False Crystal Quartz 515 nm - 515 nm L/2 <L/300
15 in stock Ships in: 2–5 calendar days
$126
461-4233 Low Order Round 20 mm True Crystal Quartz 488 nm - 488 nm L/2 <L/300
6 in stock Ships in: 2–5 calendar days
$192
461-4235 Low Order Round 20 mm True Crystal Quartz 400 nm - 400 nm L/2 <L/300
9 in stock Ships in: 2–5 calendar days
$192
461-4240 Low Order Round 20 mm True Crystal Quartz 355 nm - 355 nm L/2 <L/300
Out of stock Ships in: 62–65 calendar days
$231
461-4240D12 Low Order Round 12.7 mm False Crystal Quartz 355 nm - 355 nm L/2 <L/300
13 in stock Ships in: 2–5 calendar days
$138
461-4241 Low Order Round 20 mm True Crystal Quartz 343 nm - 343 nm L/2 <L/300
30 in stock Ships in: 2–5 calendar days
$231
461-4245 Low Order Round 20 mm True Crystal Quartz 266 nm - 266 nm L/2 <L/300
1 in stock Ships in: 2–5 calendar days
$236
461-4246 Low Order Round 20 mm True Crystal Quartz 257 nm - 257 nm L/2 <L/300
Out of stock Ships in: 58–61 calendar days
$236
461-4401 Low Order Round 20 mm True Crystal Quartz 1550 nm - 1550 nm L/4 <L/300
8 in stock Ships in: 2–5 calendar days
$192
461-4401D12 Low Order Round 12.7 mm False Crystal Quartz 1550 nm - 1550 nm L/4 <L/300
23 in stock Ships in: 2–5 calendar days
$126
461-4405 Low Order Round 20 mm True Crystal Quartz 1064 nm - 1064 nm L/4 <L/300
1 in stock Ships in: 2–5 calendar days
$192
461-4405D12 Low Order Round 12.7 mm False Crystal Quartz 1064 nm - 1064 nm L/4 <L/300
31 in stock Ships in: 2–5 calendar days
$126
461-4406 Low Order Round 20 mm True Crystal Quartz 1053 nm - 1053 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4406D12 Low Order Round 12.7 mm False Crystal Quartz 1053 nm - 1053 nm L/4 <L/300
9 in stock Ships in: 2–5 calendar days
$126
461-4408 Low Order Round 20 mm True Crystal Quartz 1030 nm - 1030 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4408D12 Low Order Round 12.7 mm False Crystal Quartz 1030 nm - 1030 nm L/4 <L/300
147 in stock Ships in: 2–5 calendar days
$126
461-4410 Low Order Round 20 mm True Crystal Quartz 950 nm - 950 nm L/4 <L/300
4 in stock Ships in: 2–5 calendar days
$192
461-4413 Low Order Round 20 mm True Crystal Quartz 852 nm - 852 nm L/4 <L/300
6 in stock Ships in: 2–5 calendar days
$192
461-4415 Low Order Round 20 mm True Crystal Quartz 800 nm - 800 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4415D12 Low Order Round 12.7 mm False Crystal Quartz 800 nm - 800 nm L/4 <L/300
4 in stock Ships in: 2–5 calendar days
$126
461-4420 Low Order Round 20 mm True Crystal Quartz 780 nm - 780 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4420D12 Low Order Round 12.7 mm False Crystal Quartz 780 nm - 780 nm L/4 <L/300
18 in stock Ships in: 2–5 calendar days
$126
461-4421 Low Order Round 20 mm True Crystal Quartz 770 nm - 770 nm L/4 <L/300
4 in stock Ships in: 2–5 calendar days
$192
461-4425 Low Order Round 20 mm True Crystal Quartz 633 nm - 633 nm L/4 <L/300
1 in stock Ships in: 2–5 calendar days
$192
461-4425D12 Low Order Round 12.7 mm False Crystal Quartz 633 nm - 633 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$126
461-4430 Low Order Round 20 mm True Crystal Quartz 532 nm - 532 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4430D12 Low Order Round 12.7 mm False Crystal Quartz 532 nm - 532 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$126
461-4431 Low Order Round 20 mm True Crystal Quartz 527 nm - 527 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4432 Low Order Round 20 mm True Crystal Quartz 515 nm - 515 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$192
461-4432D12 Low Order Round 12.7 mm False Crystal Quartz 515 nm - 515 nm L/4 <L/300
Out of stock Ships in: 58–61 calendar days
$126
461-4433 Low Order Round 20 mm True Crystal Quartz 488 nm - 488 nm L/4 <L/300
19 in stock Ships in: 2–5 calendar days
$192
461-4435 Low Order Round 20 mm True Crystal Quartz 400 nm - 400 nm L/4 <L/300
9 in stock Ships in: 2–5 calendar days
$192
461-4440 Low Order Round 20 mm True Crystal Quartz 355 nm - 355 nm L/4 <L/300
Out of stock Ships in: 62–65 calendar days
$231
461-4441 Low Order Round 20 mm True Crystal Quartz 343 nm - 343 nm L/4 <L/300
40 in stock Ships in: 2–5 calendar days
$231
461-4445 Low Order Round 20 mm True Crystal Quartz 266 nm - 266 nm L/4 <L/300
1 in stock Ships in: 2–5 calendar days
$236

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type Low Order
Shape Type Round
Material Type Crystalline Material
Material Crystal Quartz
Parallelism, angle 0 deg 0 min 0 sec - 0 deg 0 min 10 sec

Wavelength 1

Retardation Accuracy <L/300

Surface 1

Surface quality, ISO 20-10
Power and Irregularity, fringes @633 nm 0(0.2)

Surface 1, Wavelength 1

Coating AR
AOI (angle of incidence) 0 deg 0 min 0 sec - 0 deg 0 min 0 sec

Surface 2

Surface quality, ISO 20-10
Power and Irregularity, fringes @633 nm 0(0.2)

Surface 2, Wavelength 1

Coating AR
AOI (angle of incidence) 0 deg 0 min 0 sec - 0 deg 0 min 0 sec

Description

  • Thinner than multiple order
  • Less than 8 order
  • Less temperature and wavelength dependent than multiple order

Made from high quallity optical grade crystalline quartz quarter wave and half wave retardation versions available suitable for high and low power laser applications. Rotate the direction of polarization (λ/2) or convert linear into circular polarization or vice versa (λ/4). Eksma Optics quartz retardation plates are supplied mounted and have multilayer dielectric anti-reflection coating on both sides maximising transmission.

Downloads

PDF
EKSMA_Optics_Low_Order_Waveplates.pdf PDF · 178 KB
