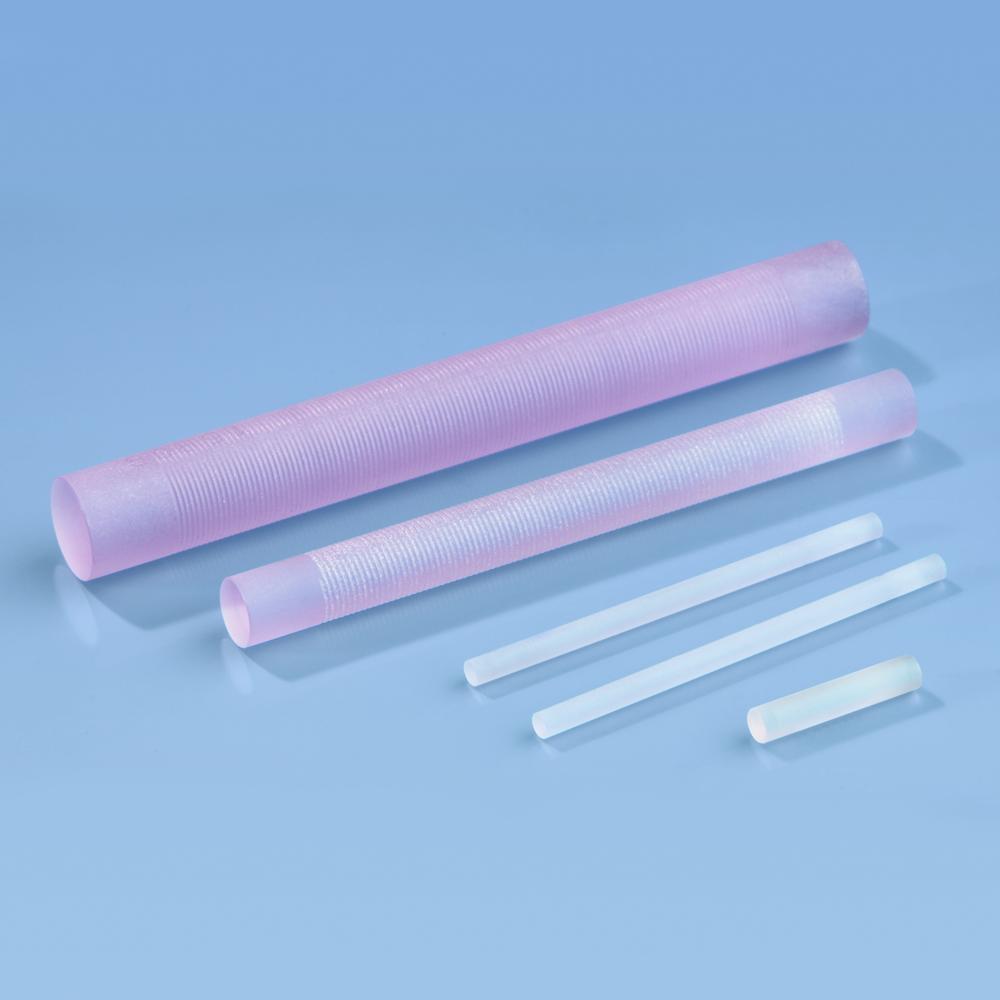

Nd:YAG Crystals
Neodymium Doped Yttrium Aluminum Garnet - Nd:YAG laser crystal is the most popular lasing media for solid-state lasers. Good fluorescence lifetime, thermal conductivity and robust nature make Nd:YAG laser crystal… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Diameter | Thickness | Design Wavelength Range | Material | Orientation | Concentration | Coating | |
|---|---|---|---|---|---|---|---|---|
| E-Y-10-1.1-A/A | 10 mm | 85 mm | 1064 nm - 1064 nm | Nd:YAG | 111 | 1.1 % | AR |
Out of stock
Ships in: 62–65 calendar days
$2,640
|
| E-Y-12-1.1-A/A | 12 mm | 100 mm | 1064 nm - 1064 nm | Nd:YAG | 111 | 1.1 % | AR |
Out of stock
Ships in: 62–65 calendar days
$5,688
|
| E-Y-3-0.8-A/A | 3 mm | 65 mm | 1064 nm - 1064 nm | Nd:YAG | 111 | 0.8 % | AR |
Out of stock
Ships in: 62–65 calendar days
$318
|
| E-Y-3-0.9-A/A | 3 mm | 53 mm | 1064 nm - 1064 nm | Nd:YAG | 111 | 0.9 % | AR |
Out of stock
Ships in: 62–65 calendar days
$258
|
| E-Y-3-1.1-A/A | 3 mm | 65 mm | 1064 nm - 1064 nm | Nd:YAG | 111 | 1.1 % | AR |
Out of stock
Ships in: 62–65 calendar days
$390
|
| E-Y-4-0.7-A/A | 4 mm | 20 mm | 1064 nm - 1064 nm | Nd:YAG | — | 0.7 % | AR |
Out of stock
Ships in: 62–65 calendar days
$396
|
| E-Y-4-0.8-A/A | 4 mm | 65 mm | 1064 nm - 1064 nm | Nd:YAG | 111 | 0.8 % | AR |
1 in stock
Ships in: 2–5 calendar days
$636
|
| E-Y-4-1.1-A/A | 4 mm | 65 mm | 1064 nm - 1064 nm | Nd:YAG | 111 | 1.1 % | AR |
1 in stock
Ships in: 2–5 calendar days
$636
|
| E-Y-6.35-1.1-A/A | 6.35 mm | 85 mm | 1064 nm - 1064 nm | Nd:YAG | 111 | 1.1 % | AR |
1 in stock
Ships in: 2–5 calendar days
$1,068
|
| E-Y-8-1.1-A/A | 8 mm | 85 mm | 1064 nm - 1064 nm | Nd:YAG | 111 | 1.1 % | AR |
Out of stock
Ships in: 62–65 calendar days
$1,608
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Design Wavelength Range | 1064 nm - 1064 nm |
| Material Type | Crystalline Material |
| Material | Nd:YAG |
| Laser Crystal Bonding Type | Non-bonded |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 0 min 10 sec |
Surface 1
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
Surface 1, Wavelength 1
| Coating | AR |
| Wavelength | 1064 nm - 1064 nm |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
Surface 2, Wavelength 1
| Coating | AR |
| Wavelength | 1064 nm - 1064 nm |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Description
Neodymium Doped Yttrium Aluminum Garnet - Nd:YAG laser crystal is the most popular lasing media for solid-state lasers. Good fluorescence lifetime, thermal conductivity and robust nature make Nd:YAG laser crystal suitable for high power continuous wave, high intensity q-switched and single mode operation. Eksma Optics offers high optical quality standard sizes Nd:YAG laser crystals - rods with high damage threshold AR@1064 nm coatings.
