High Power Laser Mirrors for Nanosecond Applications

High Power Laser Mirrors for Nanosecond Applications

New ultra high damage threshold laser mirrors are designed for applications with femtosecond lasers. These mirrors are produced using advanced IBS coating technology. Mirrors design wavelengths include fundamental… Read more →

From $100 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 12.7 mm - 50.8 mm · 3 values Any mm
mm

Surface 1, Wavelength 1

Wavelength 266 nm - 1064 nm · 7 values Any nm
nm
Reflectivity, % Any %
%
AOI (angle of incidence) Any deg;min;sec
deg;min;sec
Polarization Any
51 catalog variants — refine the spec to narrow it down.
SKU Shape Type Diameter Material Surface Shape Coating Wavelength Reflectivity, % AOI (angle of incidence) Polarization
041-0260HHR Round 12.7 mm UVFS Plano HR 266 nm > 99.5 % 45 deg avg
4 in stock Ships in: 2–5 calendar days
$192
041-0350T6HHR Round 12.7 mm UVFS Plano HR 351 nm - 361 nm > 99.9 % 45 deg avg
Out of stock Ships in: 62–65 calendar days
$146
041-0350T6HHR-i0 Round 12.7 mm UVFS Plano HR 351 nm - 361 nm > 99.9 % 0 deg avg
6 in stock Ships in: 2–5 calendar days
$146
041-0350UHHR Round 12.7 mm UVFS Plano HR 355 nm > 99.9 % 45 deg avg
6 in stock Ships in: 2–5 calendar days
$179
041-0530T6HHR Round 12.7 mm UVFS Plano HR 532 nm > 99.95 % 45 deg avg
Out of stock Ships in: 62–65 calendar days
$100
041-0530T6HHR-i0 Round 12.7 mm UVFS Plano HR 532 nm > 99.95 % 0 deg sp
20 in stock Ships in: 2–5 calendar days
$100
041-0530T6HHR-i0-45 Round 12.7 mm UVFS Plano HR 532 nm > 99.9 % 0 - 45 deg sp
2 in stock Ships in: 2–5 calendar days
$119
041-0530T6UHHR Round 12.7 mm UVFS Plano HR 532 nm > 99.95 % 45 deg avg
18 in stock Ships in: 2–5 calendar days
$146
041-0530T6UHHR-i0 Round 12.7 mm UVFS Plano HR 532 nm > 99.95 % 0 deg avg
4 in stock Ships in: 2–5 calendar days
$146
041-0800NT6UHHR Round 12.7 mm UVFS Plano HR 800 nm > 99.9 % 45 deg avg
4 in stock Ships in: 2–5 calendar days
$153
041-0800NT6UHHR-i0 Round 12.7 mm UVFS Plano HR 800 nm > 99.95 % 0 deg avg
18 in stock Ships in: 2–5 calendar days
$153
041-1060NT6UHHR Round 12.7 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 45 deg avg
22 in stock Ships in: 2–5 calendar days
$153
041-1060NT6UHHR-i0 Round 12.7 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 0 deg avg
2 in stock Ships in: 2–5 calendar days
$153
041-1060T6HHR Round 12.7 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 45 deg avg
26 in stock Ships in: 2–5 calendar days
$100
041-1060T6HHR-i0 Round 12.7 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 0 deg avg
16 in stock Ships in: 2–5 calendar days
$100
041-1060T6HHR-i0-45 Round 12.7 mm UVFS Plano HR 1047 nm - 1064 nm > 99.7 % 0 - 45 deg sp
5 in stock Ships in: 2–5 calendar days
$119
042-0260HHR Round 25.4 mm UVFS Plano HR 266 nm > 99.5 % 45 deg avg
6 in stock Ships in: 2–5 calendar days
$251
042-0260HHR-i0 Round 25.4 mm UVFS Plano HR 266 nm > 99.5 % 0 deg avg
14 in stock Ships in: 2–5 calendar days
$251
042-0350HHR Round 25.4 mm UVFS Plano HR 351 nm - 361 nm > 99.9 % 45 deg avg
Out of stock Ships in: 62–65 calendar days
$172
042-0350HHR-i0 Round 25.4 mm UVFS Plano HR 351 nm - 361 nm > 99.9 % 0 deg avg
Out of stock Ships in: 62–65 calendar days
$172
042-0350UHHR Round 25.4 mm UVFS Plano HR 355 nm > 99.9 % 45 deg avg
27 in stock Ships in: 2–5 calendar days
$238
042-0350UHHR-i0 Round 25.4 mm UVFS Plano HR 355 nm > 99.8 % 0 deg avg
6 in stock Ships in: 2–5 calendar days
$238
042-0530HHR Round 25.4 mm UVFS Plano HR 532 nm > 99.95 % 45 deg avg
88 in stock Ships in: 2–5 calendar days
$140
042-0530HHR-i0 Round 25.4 mm UVFS Plano HR 532 nm > 99.95 % 0 deg avg
11 in stock Ships in: 2–5 calendar days
$140
042-0530HHR-i0-45 Round 25.4 mm UVFS Plano HR 532 nm > 99.9 % 0 - 45 deg sp
6 in stock Ships in: 2–5 calendar days
$159
042-0530UHHR Round 25.4 mm UVFS Plano HR 532 nm > 99.95 % 45 deg avg
68 in stock Ships in: 2–5 calendar days
$206
042-0530UHHR-i0 Round 25.4 mm UVFS Plano HR 532 nm > 99.95 % 0 deg avg
5 in stock Ships in: 2–5 calendar days
$206
042-0800NUHHR Round 25.4 mm UVFS Plano HR 800 nm > 99.95 % 45 deg avg
14 in stock Ships in: 2–5 calendar days
$219
042-0800NUHHR-i0 Round 25.4 mm UVFS Plano HR 800 nm > 99.95 % 0 deg avg
2 in stock Ships in: 2–5 calendar days
$219
042-1060HHR Round 25.4 mm UVFS Plano HR 1047 nm - 1064 nm > 99.9 % 45 deg avg
55 in stock Ships in: 2–5 calendar days
$140
042-1060HHR-i0 Round 25.4 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 0 deg avg
14 in stock Ships in: 2–5 calendar days
$140
042-1060HHR-i0-45 Round 25.4 mm UVFS Plano HR 1047 nm - 1064 nm > 99.7 % 0 - 45 deg sp
7 in stock Ships in: 2–5 calendar days
$159
042-1060NUHHR Round 25.4 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 45 deg avg
31 in stock Ships in: 2–5 calendar days
$219
042-1060NUHHR-i0 Round 25.4 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 0 deg avg
29 in stock Ships in: 2–5 calendar days
$219
045-0260HHR Round 50.8 mm UVFS Plano HR 266 nm > 99.5 % 45 deg avg
Out of stock Ships in: 62–65 calendar days
$774
045-0350T12HHR-i0 Round 50.8 mm UVFS Plano HR 351 nm - 361 nm > 99.9 % 0 deg avg
2 in stock Ships in: 2–5 calendar days
$552
045-0350UHHR Round 50.8 mm UVFS Plano HR 355 nm > 99.9 % 45 deg avg
17 in stock Ships in: 2–5 calendar days
$552
045-0350UHHR-i0 Round 50.8 mm UVFS Plano HR 355 nm > 99.95 % 0 deg avg
Out of stock Ships in: 58–61 calendar days
$552
045-0530T12HHR Round 50.8 mm UVFS Plano HR 527 nm - 532 nm > 99.95 % 45 deg avg
1 in stock Ships in: 2–5 calendar days
$492
045-0530T12HHR-i0 Round 50.8 mm UVFS Plano HR 532 nm > 99.95 % 0 deg avg
4 in stock Ships in: 2–5 calendar days
$492
045-0530T12HHR-i0-45 Round 50.8 mm UVFS Plano HR 532 nm > 99.9 % 0 - 45 deg sp
5 in stock Ships in: 2–5 calendar days
$564
045-0530T12UHHR Round 50.8 mm UVFS Plano HR 532 nm > 99.95 % 45 deg avg
18 in stock Ships in: 2–5 calendar days
$636
045-0530T12UHHR-i0 Round 50.8 mm UVFS Plano HR 532 nm > 99.95 % 0 deg avg
Out of stock Ships in: 62–65 calendar days
$636
045-0800NT12UHHR-i0 Round 50.8 mm UVFS Plano HR 800 nm > 99.95 % 45 deg avg
2 in stock Ships in: 2–5 calendar days
$660
045-1060NT12HHR-i0-45 Round 50.8 mm UVFS Plano HR 1047 nm - 1064 nm > 99.7 % 0 - 45 deg sp
7 in stock Ships in: 2–5 calendar days
$564
045-1060NT12UHHR Round 50.8 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 45 deg avg
19 in stock Ships in: 2–5 calendar days
$660
045-1060NT12UHHR-i0 Round 50.8 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 0 deg avg
11 in stock Ships in: 2–5 calendar days
$660
045-1060T12HHR Round 50.8 mm UVFS Plano HR 1047 nm - 1064 nm > 99.95 % 45 deg avg
Out of stock Ships in: 62–65 calendar days
$492
061-5306HHR-i0 Round 12.7 mm UVFS Plano HR 532 nm > 99.95 % 0 deg avg
5 in stock Ships in: 2–5 calendar days
$197
062-5306UHHR Round 25.4 mm UVFS Plano HR 532 nm > 99.5 % 45 deg avg
29 in stock Ships in: 2–5 calendar days
$298
062-5306UHHR-i0 Round 25.4 mm UVFS Plano HR 532 nm > 99.5 % 0 deg avg
20 in stock Ships in: 2–5 calendar days
$298

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Shape Type Round
Diameter Upper Tolerance 0 mm
Material UVFS

Surface 1

Surface Shape Plano
Power, fringes @633 nm 0 fr
Irregularity, fringes @633 nm 0.2 fr

Surface 1, Wavelength 1

Coating HR

Surface 2

Surface Shape Plano
Surface quality, grind or polish Polished

Description

New ultra high damage threshold laser mirrors are designed for applications with femtosecond lasers. These mirrors are produced using advanced IBS coating technology. Mirrors design wavelengths include fundamental Nd:YAG laser 1064 nm, its frequency-doubled 532 nm and 800 nm with reflection values R>99.9%.

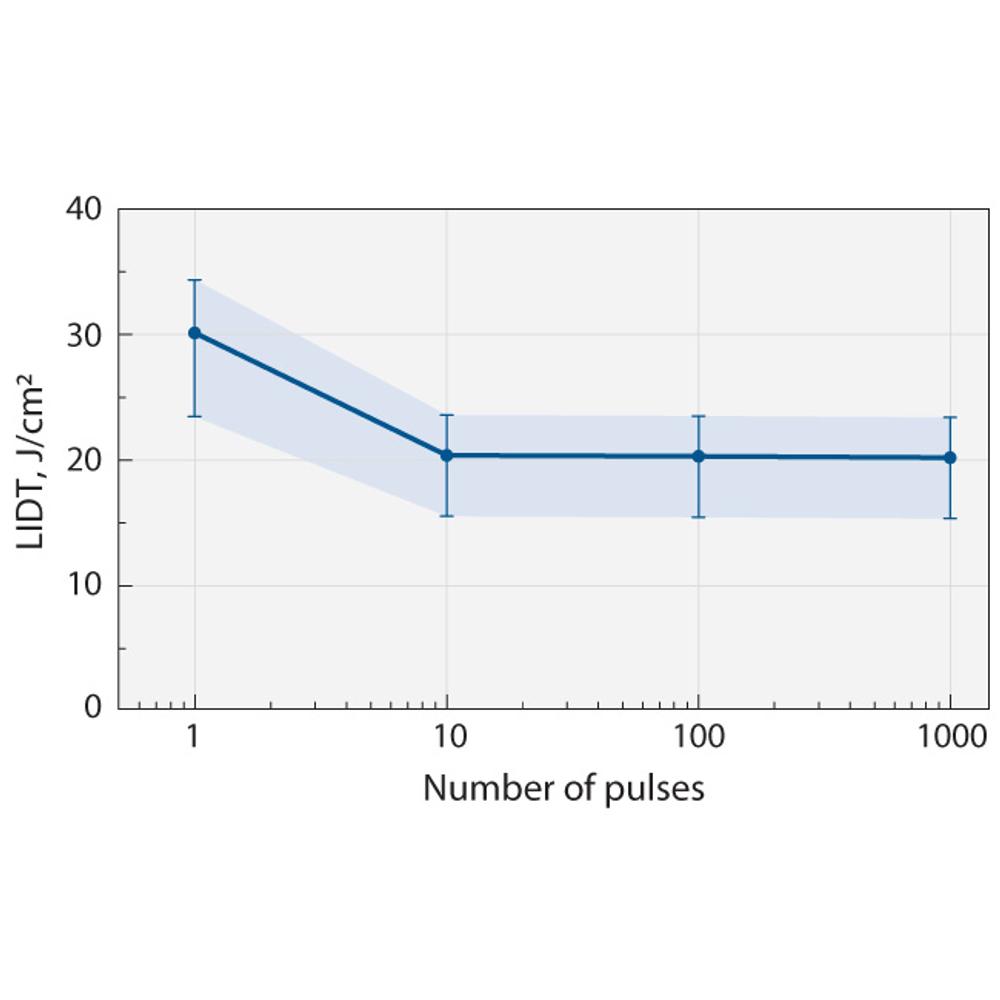

Laser induced damage threshold was measured at mirror design wavelength with 10 ns pulse, 100 Hz under ISO standard 21254-2 1000-on-1 conditions.

Downloads

PDF
EKSMA_Optics_High_Power_IBS_Coated_Laser_Mirrors_Nd-YAG.pdf PDF · 98.4 KB
