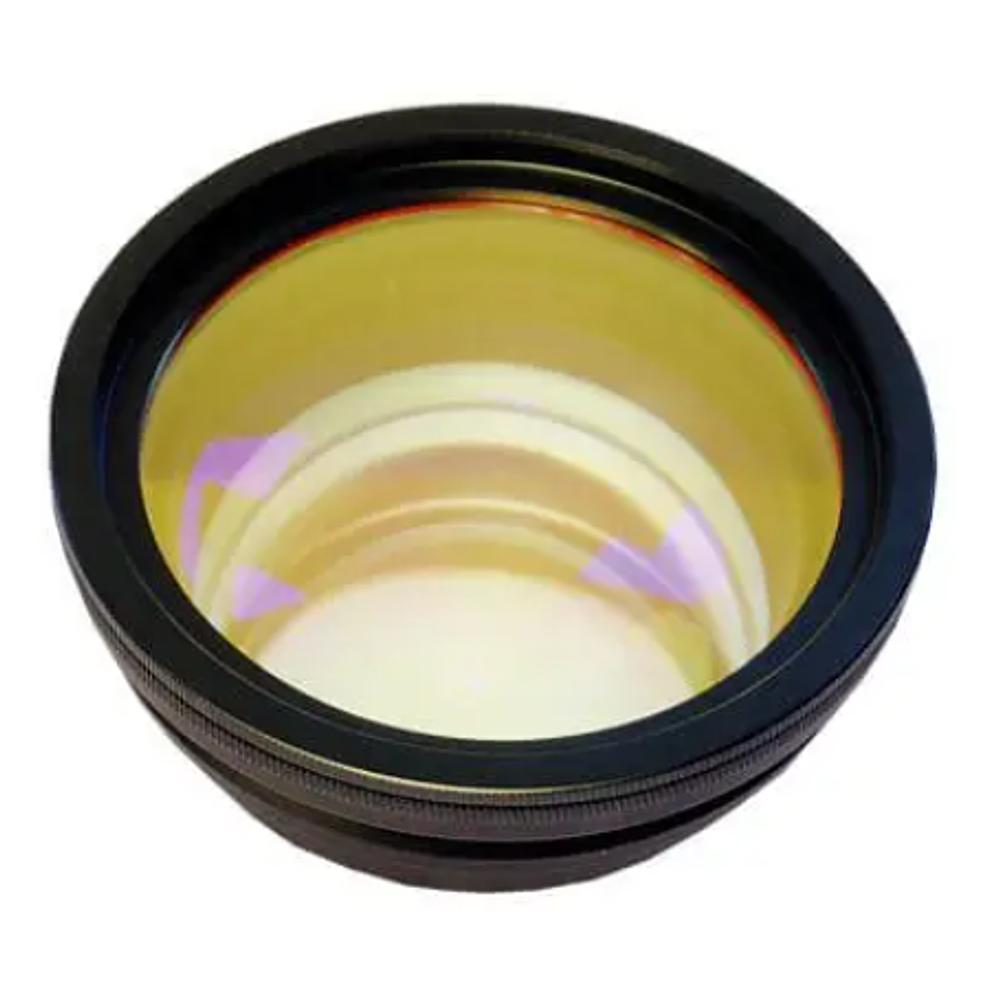

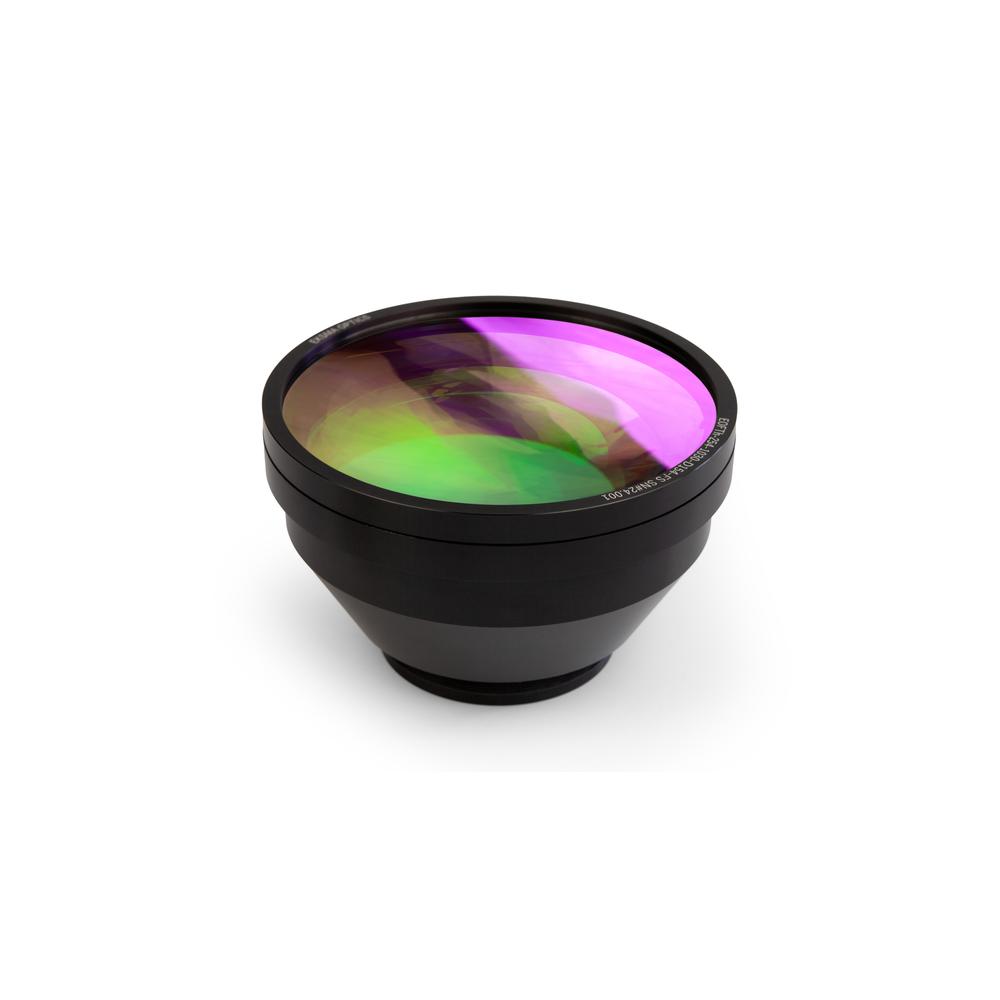

F-Theta Lens for 1064 nm

• Designed for Nd:YAG laser 1064 nm • F-theta lenses for 532 nm or 355 nm are also available • Lens diameter of 90 or 104 mm F-Theta lenses are designed to provide a flat field on the image plane for scanning and… Read more →

From $504 Configure & order →

Volume discount

5–9 units −5%
10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Focal Length 100 mm - 650 mm · 9 values Any mm

Scan Field Any

Spot Size 16 µm - 85 µm · 10 values Any µm

µm

12 catalog variants — refine the spec to narrow it down.

SKU	Product Type	Material Type	Focal Length	Scan Field	Spot Size	Coating	Wavelength
150-1001	Standard	BK7	100 mm	70x70	16 µm	AR	1064 nm - 1064 nm	1 in stock Ships in: 2–5 calendar days $504
150-1601	Standard	BK7	160 mm	110x110	26 µm	AR	1064 nm - 1064 nm	3 in stock Ships in: 2–5 calendar days $504
150-2101	Standard	BK7	210 mm	145x145	34 µm	AR	1064 nm - 1064 nm	Out of stock $504
150-2541	Standard	BK7	254 mm	175x175	31 µm	AR	1064 nm - 1064 nm	2 in stock Ships in: 2–5 calendar days $504
150-2901	Standard	BK7	290 mm	200x200	31 µm	AR	1064 nm - 1064 nm	1 in stock Ships in: 2–5 calendar days $504
150-3301	Standard	BK7	330 mm	230x230	40 µm	AR	1064 nm - 1064 nm	3 in stock Ships in: 2–5 calendar days $504
150-4201	Standard	BK7	420 mm	300x300	50 µm	AR	1064 nm - 1064 nm	1 in stock Ships in: 2–5 calendar days $504
151-1631	Standard	BK7	163 mm	110x110	17 µm	AR	1064 nm - 1064 nm	Out of stock $624
151-2101	Standard	BK7	210 mm	150x150	24 µm	AR	1064 nm - 1064 nm	1 in stock Ships in: 2–5 calendar days $624
151-2541	Standard	BK7	254 mm	175x175	31 µm	AR	1064 nm - 1064 nm	1 in stock Ships in: 2–5 calendar days $624
151-4201	Standard	BK7	420 mm	300x300	55 µm	AR	1064 nm - 1064 nm	1 in stock Ships in: 2–5 calendar days $624
151-6501	Standard	BK7	650 mm	400x400	85 µm	AR	1064 nm - 1064 nm	Out of stock $624

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type	Standard
Material Type	BK7
Design Wavelength Range	1064 nm - 1064 nm
Mounting method	M85x1 Thread

Wavelength 1

Coating	AR
Wavelength	1064 nm - 1064 nm

Description

Designed for Nd:YAG laser 1064 nm
F-theta lenses for 532 nm or 355 nm are also available
Lens diameter of 90 or 104 mm

F-Theta lenses are designed to provide a flat field on the image plane for scanning and engraving applications where a high power laser and set of rotating mirrors are used to scan across a given field.
