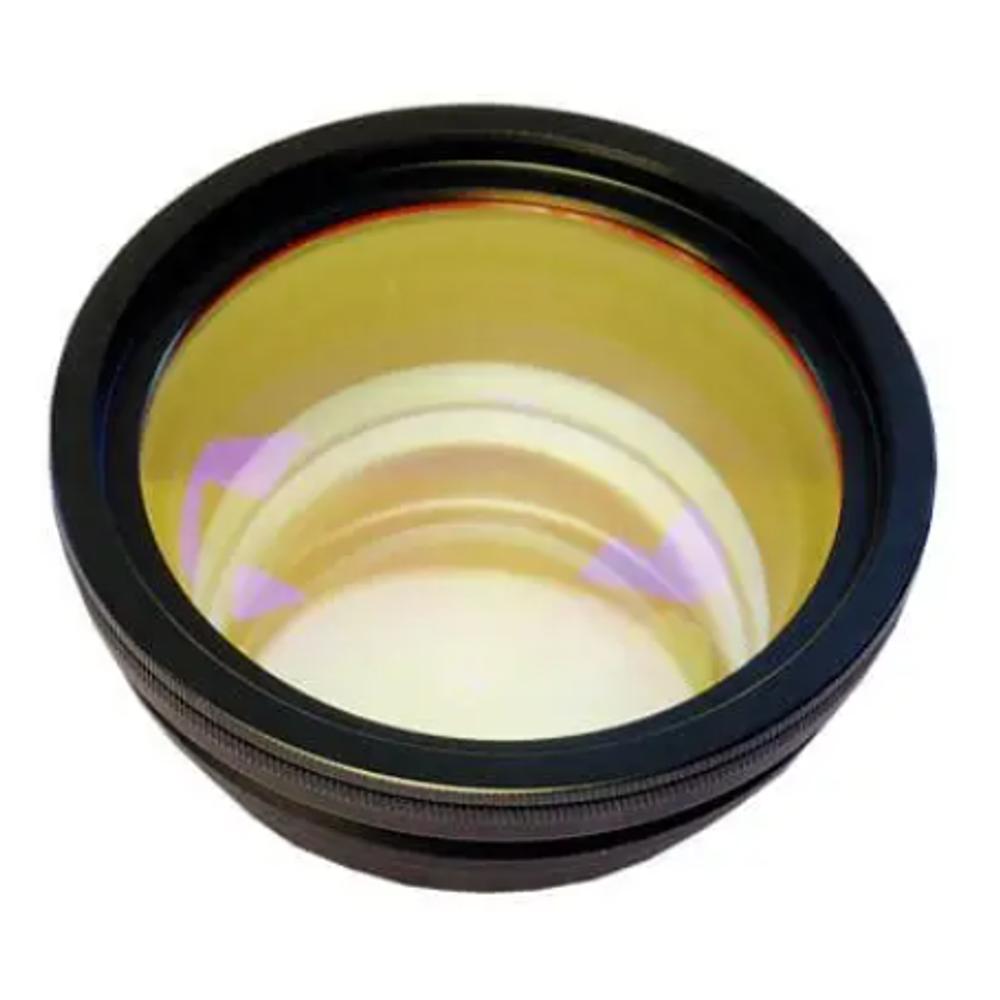

F-Theta Lens for 532 nm
• Designed for 532 nm wavelength • 1064 nm and 355 nm are available • Lens diameter - 90 mm The F-Theta Lens is designed to provide a flat field on the image plane for scanning and engraving applications where a… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Focal Length
100 mm - 160 mm · 2 values
Any
mm
mm
Scan Field
Any
Spot Size
13 µm - 16 µm · 2 values
Any
µm
µm
2
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Material Type | Focal Length | Scan Field | Spot Size | Coating | Wavelength | |
|---|---|---|---|---|---|---|---|---|
| 150-1002 | Standard | BK7 | 100 mm | 70x70 | 16 µm | AR | 532 nm - 532 nm |
1 in stock
Ships in: 2–5 calendar days
$552
|
| 150-1602 | Standard | BK7 | 160 mm | 100x100 | 13 µm | AR | 532 nm - 532 nm |
1 in stock
Ships in: 2–5 calendar days
$552
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Standard |
| Material Type | BK7 |
| Design Wavelength Range | 532 nm - 532 nm |
| Input Beam Diameter | 12 mm |
| Diameter | 90 mm |
| Mounting method | M85x1 Thread |
Wavelength 1
| Coating | AR |
| Wavelength | 532 nm - 532 nm |
| LIDT | 3J/cm2 @ 1064nm 10ps100Khz |
