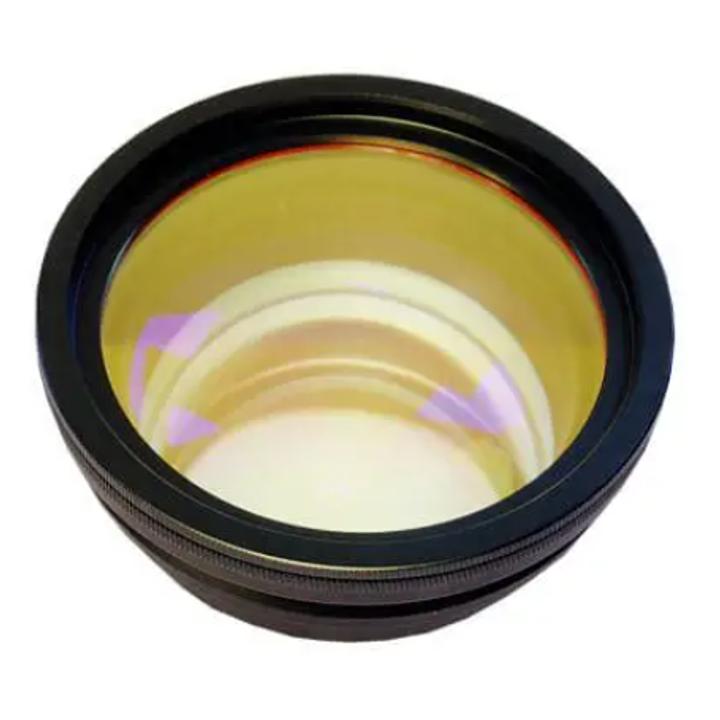

F-Theta Lens for 532 nm SKU: 150-1602
• Designed for 532 nm wavelength • 1064 nm and 355 nm are available • Lens diameter - 90 mm The F-Theta Lens is designed to provide a flat field on the image plane for scanning and engraving applications where a high power laser and set of rotating mirrors are used to scan…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Standard |
| Material Type | BK7 |
| Design Wavelength Range | 532 nm - 532 nm |
| Focal Length | 160 mm |
| Scan Field | 100x100 |
| Scan Angle | 50 deg 0 min 0 sec |
| Input Beam Diameter | 12 mm |
| Working Distance | 180 mm |
| Diameter | 90 mm |
| Mounting method | M85x1 Thread |
| Spot Size | 13 µm |
| Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 532 nm - 532 nm |
| LIDT | 3J/cm2 @ 1064nm 10ps100Khz |
