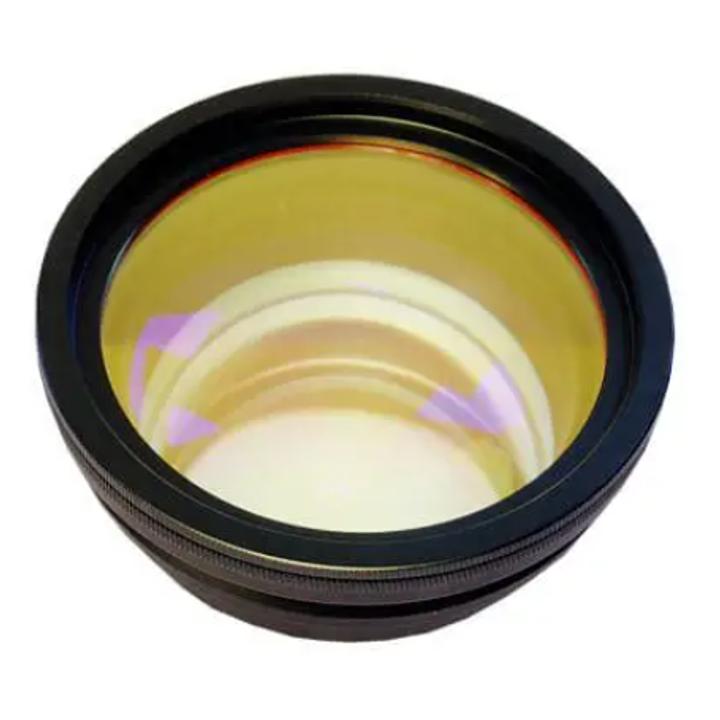

F-Theta Lens for 1064 nm SKU: 150-2541
• Designed for Nd:YAG laser 1064 nm • F-theta lenses for 532 nm or 355 nm are also available • Lens diameter of 90 or 104 mm F-Theta lenses are designed to provide a flat field on the image plane for scanning and engraving applications where a high power laser and set of…
Variant specifications
| Specification | Value |
|---|---|
| Focus length | 254 mm |
| Working distance | 287 mm |
| Scan field | 175x175 mm2 |
| Max. Scan angle | ±28° |
| Spot size | 31 µm |
| Group | Lens Diameter - 90 mm |
