Femtoline Laser Output Couplers

Femtoline Laser Output Couplers

• Low Group Delay Dispersion (GDD) An output is a partially reflecting dielectric mirror used in a laser cavity. It trasmits a part of the circulating intracavity power for generating a useful output from the laser. A… Read more →

From $146 Configure & order →

Volume discount

  • 5–9 units −10%
  • 10+ units −15%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 12.7 mm - 50.8 mm · 3 values Any mm
mm
Material Any

Surface 1, Wavelength 1

Wavelength 800 nm - 1030 nm · 2 values Any nm
nm
Reflectivity, % 47 % - 99.5 % · 13 values Any %
%
62 catalog variants — refine the spec to narrow it down.
SKU Shape Type Diameter Material Surface Shape Coating Wavelength Reflectivity, % AOI (angle of incidence)
041-0150 Round 12.7 mm UVFS Plano PR 1030 nm 47 % - 53 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$146
041-0170 Round 12.7 mm UVFS Plano PR 1030 nm 67 % - 73 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$146
041-0175 Round 12.7 mm UVFS Plano PR 1030 nm 72 % - 78 % 0 deg 0 min 0 sec
7 in stock Ships in: 2–5 calendar days
$146
041-0180 Round 12.7 mm UVFS Plano PR 1030 nm 77 % - 83 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$146
041-0185 Round 12.7 mm UVFS Plano PR 1030 nm 82 % - 88 % 0 deg 0 min 0 sec
3 in stock Ships in: 2–5 calendar days
$146
041-0190 Round 12.7 mm UVFS Plano PR 1030 nm 88 % - 92 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$155
041-0195 Round 12.7 mm UVFS Plano PR 1030 nm 93 % - 97 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$155
041-0197 Round 12.7 mm UVFS Plano PR 1030 nm 96 % - 98 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
041-0198 Round 12.7 mm UVFS Plano PR 1030 nm 97 % - 99 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
041-0199 Round 12.7 mm UVFS Plano PR 1030 nm 98.5 % - 99.5 % 0 deg 0 min 0 sec
7 in stock Ships in: 2–5 calendar days
$174
041-1150 Round 12.7 mm UVFS Plano PR 800 nm 47 % - 53 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$146
041-1160 Round 12.7 mm UVFS Plano PR 800 nm 57 % - 63 % 0 deg 0 min 0 sec
5 in stock Ships in: 2–5 calendar days
$146
041-1165 Round 12.7 mm UVFS Plano PR 800 nm 62 % - 68 % 0 deg 0 min 0 sec
4 in stock Ships in: 2–5 calendar days
$146
041-1170 Round 12.7 mm UVFS Plano PR 800 nm 67 % - 73 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$146
041-1175 Round 12.7 mm UVFS Plano PR 800 nm 72 % - 78 % 0 deg 0 min 0 sec
6 in stock Ships in: 2–5 calendar days
$146
041-1180 Round 12.7 mm UVFS Plano PR 800 nm 77 % - 83 % 0 deg 0 min 0 sec
4 in stock Ships in: 2–5 calendar days
$146
041-1185 Round 12.7 mm UVFS Plano PR 800 nm 82 % - 88 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$146
041-1190 Round 12.7 mm UVFS Plano PR 800 nm 88 % - 92 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$155
041-1195 Round 12.7 mm UVFS Plano PR 800 nm 93 % - 97 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$155
041-1197 Round 12.7 mm UVFS Plano PR 800 nm 96 % - 98 % 0 deg 0 min 0 sec
8 in stock Ships in: 2–5 calendar days
$165
041-1198 Round 12.7 mm UVFS Plano PR 800 nm 97 % - 99 % 0 deg 0 min 0 sec
18 in stock Ships in: 2–5 calendar days
$165
041-1199 Round 12.7 mm UVFS Plano PR 800 nm 98.5 % - 99.5 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$174
042-0150 Round 25.4 mm UVFS Plano PR 1030 nm 47 % - 53 % 0 deg 0 min 0 sec
3 in stock Ships in: 2–5 calendar days
$173
042-0160 Round 25.4 mm UVFS Plano PR 1030 nm 57 % - 63 % 0 deg 0 min 0 sec
4 in stock Ships in: 2–5 calendar days
$173
042-0165 Round 25.4 mm FS Plano PR 1030 nm 62 % - 68 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$173
042-0170 Round 25.4 mm UVFS Plano PR 1030 nm 67 % - 73 % 0 deg 0 min 0 sec
4 in stock Ships in: 2–5 calendar days
$173
042-0175 Round 25.4 mm UVFS Plano PR 1030 nm 72 % - 78 % 0 deg 0 min 0 sec
4 in stock Ships in: 2–5 calendar days
$173
042-0180 Round 25.4 mm UVFS Plano PR 1030 nm 77 % - 83 % 0 deg 0 min 0 sec
3 in stock Ships in: 2–5 calendar days
$173
042-0185 Round 25.4 mm UVFS Plano PR 1030 nm 82 % - 88 % 0 deg 0 min 0 sec
11 in stock Ships in: 2–5 calendar days
$173
042-0190 Round 25.4 mm UVFS Plano PR 1030 nm 88 % - 92 % 0 deg 0 min 0 sec
9 in stock Ships in: 2–5 calendar days
$183
042-0195 Round 25.4 mm UVFS Plano PR 1030 nm 93 % - 97 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$183
042-0197 Round 25.4 mm UVFS Plano PR 1030 nm 96 % - 98 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$192
042-0198 Round 25.4 mm UVFS Plano PR 1030 nm 97.5 % - 98.5 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$192
042-0199 Round 25.4 mm UVFS Plano PR 1030 nm 98.5 % - 99.5 % 0 deg 0 min 0 sec
9 in stock Ships in: 2–5 calendar days
$202
042-1150 Round 25.4 mm UVFS Plano PR 800 nm 47 % - 53 % 0 deg 0 min 0 sec
10 in stock Ships in: 2–5 calendar days
$173
042-1160 Round 25.4 mm UVFS Plano PR 800 nm 57 % - 63 % 0 deg 0 min 0 sec
12 in stock Ships in: 2–5 calendar days
$173
042-1165 Round 25.4 mm UVFS Plano PR 800 nm 62 % - 68 % 0 deg 0 min 0 sec
5 in stock Ships in: 2–5 calendar days
$173
042-1170 Round 25.4 mm UVFS Plano PR 800 nm 67 % - 73 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$173
042-1175 Round 25.4 mm UVFS Plano PR 800 nm 72 % - 78 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$173
042-1180 Round 25.4 mm UVFS Plano PR 800 nm 77 % - 83 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$173
042-1185 Round 25.4 mm UVFS Plano PR 800 nm 82 % - 88 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$173
042-1190 Round 25.4 mm UVFS Plano PR 800 nm 88 % - 92 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$183
042-1195 Round 25.4 mm UVFS Plano PR 800 nm 93 % - 97 % 0 deg 0 min 0 sec
10 in stock Ships in: 2–5 calendar days
$183
042-1197 Round 25.4 mm UVFS Plano PR 800 nm 96 % - 98 % 0 deg 0 min 0 sec
7 in stock Ships in: 2–5 calendar days
$192
042-1198 Round 25.4 mm UVFS Plano PR 800 nm 97 % - 99 % 0 deg 0 min 0 sec
10 in stock Ships in: 2–5 calendar days
$192

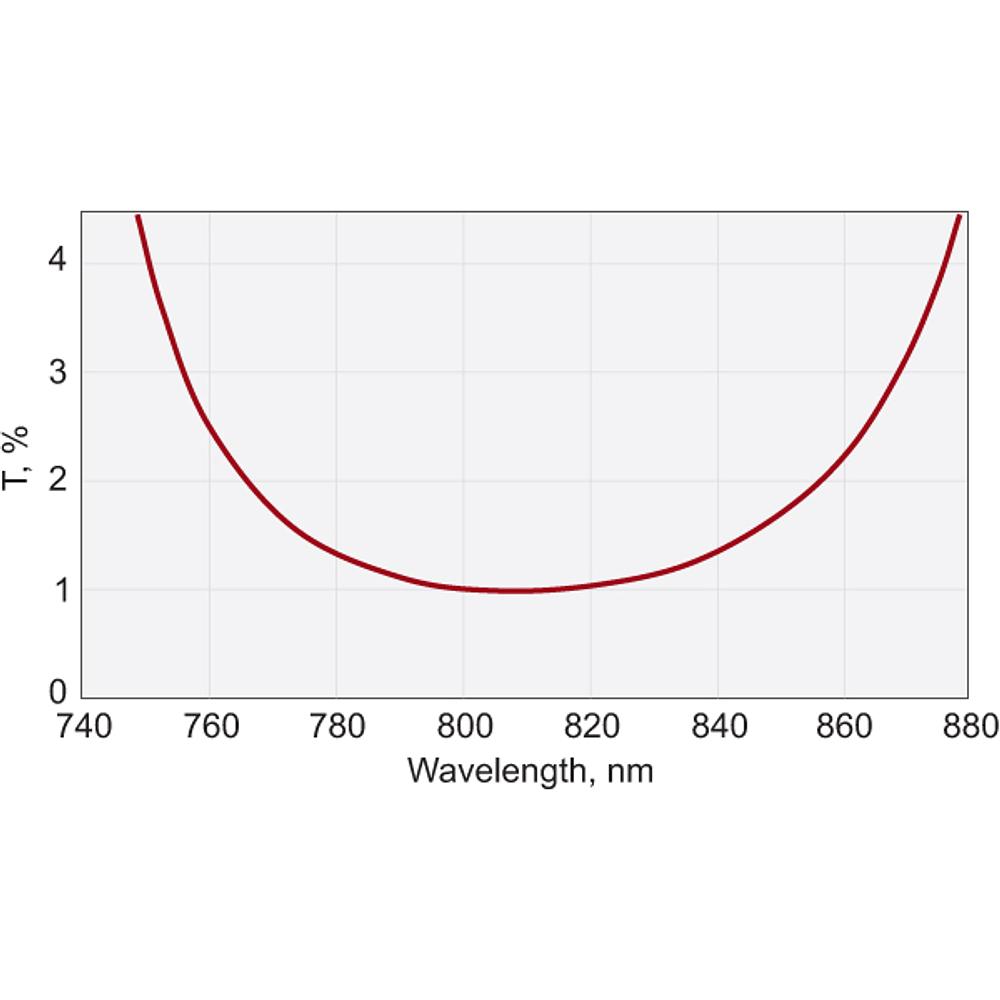

042-1199 Round 25.4 mm UVFS Plano PR 800 nm 98.5 % - 99.5 % 0 deg 0 min 0 sec
29 in stock Ships in: 2–5 calendar days
$202
045-0180 Round 50.8 mm UVFS Plano PR 1030 nm 77 % - 83 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$284
045-0185 Round 50.8 mm UVFS Plano PR 1030 nm 82 % - 88 % 0 deg 0 min 0 sec
5 in stock Ships in: 2–5 calendar days
$284
045-0190 Round 50.8 mm UVFS Plano PR 1030 nm 88 % - 92 % 0 deg 0 min 0 sec
3 in stock Ships in: 2–5 calendar days
$304
045-0195 Round 50.8 mm UVFS Plano PR 1030 nm 93 % - 97 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$304
045-0197 Round 50.8 mm UVFS Plano PR 1030 nm 96 % - 98 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$339
045-0199 Round 50.8 mm UVFS Plano PR 1030 nm 98.5 % - 99.5 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$352
045-1150 Round 50.8 mm UVFS Plano PR 800 nm 47 % - 53 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$284
045-1160 Round 50.8 mm UVFS Plano PR 800 nm 57 % - 63 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$284
045-1165 Round 50.8 mm UVFS Plano PR 800 nm 62 % - 68 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$284
045-1170 Round 50.8 mm UVFS Plano PR 800 nm 67 % - 73 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$284
045-1175 Round 50.8 mm UVFS Plano PR 800 nm 72 % - 78 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$284
045-1180 Round 50.8 mm UVFS Plano PR 800 nm 77 % - 83 % 0 deg 0 min 0 sec
3 in stock Ships in: 2–5 calendar days
$284
045-1185 Round 50.8 mm UVFS Plano PR 800 nm 82 % - 88 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$284
045-1190 Round 50.8 mm UVFS Plano PR 800 nm 88 % - 92 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$304
045-1195 Round 50.8 mm UVFS Plano PR 800 nm 93 % - 97 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$304
045-1199 Round 50.8 mm UVFS Plano PR 800 nm 98.5 % - 99.5 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$352

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Shape Type Round
Diameter Upper Tolerance 0 mm
Diameter Lower Tolerance -0.12 mm
Parallelism, angle 0 deg 0 min 0 sec - 0 deg 0 min 30 sec

Surface 1

Surface Shape Plano
Surface quality, grind or polish Polished
Power and Irregularity, fringes @633 nm 0(0.2)
Clear Aperture, % > 85 %

Surface 1, Wavelength 1

Coating PR
AOI (angle of incidence) 0 deg 0 min 0 sec

Surface 2

Surface Shape Plano
Surface quality, grind or polish Polished
Power and Irregularity, fringes @633 nm 0(0.2)
Clear Aperture, % > 85 %

Surface 2, Wavelength 1

Coating AR
AOI (angle of incidence) 0 deg 0 min 0 sec

Description

  • Low Group Delay Dispersion (GDD)

An output is a partially reflecting dielectric mirror used in a laser cavity. It trasmits a part of the circulating intracavity power for generating a useful output from the laser.

A low transmission output coupler leads to low laser threshold, and possibly to poor laser efficiency if the losses due to output coupling do not dominate other parasitic losses in the laser cavity. The output coupler transmission is often chosen to maximize the output power, although its optimum value may be lower or higher if there are other design purposes (minimizing intracavity intensities or suppressing Q-switching instabilities in a passively mode-locked laser).

The standard substrates are parralel within 30 arcsec. If you need wedged substrates, please, choose from Wedge Prisms.

Downloads

PDF
EKSMA_Optics_Femtoline_Laser_Output_Couplers.pdf PDF · 75.8 KB
