Femtoline Laser Rear Mirrors @ 800 nm

Femtoline Laser Rear Mirrors @ 800 nm

• Coated @ 800±20 nm • Laser damage threshold: >100 mJ/cm², 50 fsec pulse, 800 nm typical • Manufactured from UVFS or BK7 • 25.4 or 50.8 mm sizes available High reflectivity (R>99.7%) dielectric coatings with high… Read more →

From $137 Configure & order →

Volume discount

  • 5–9 units −10%
  • 10+ units −15%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 25.4 mm - 50.8 mm · 2 values Any mm
mm
Material Any

Surface 1

Surface Shape Any

Surface 1, Wavelength 1

Wavelength 770 nm - 830 nm · 3 values Any nm
nm
Reflectivity, % 99 % - 100 % · 4 values Any %
%
50 catalog variants — refine the spec to narrow it down.
SKU Shape Type Diameter Material Surface Shape Coating Wavelength Reflectivity, % AOI (angle of incidence)
062-8010 Round 25.4 mm BK7 Concave HR 780 nm - 820 nm > 99.7 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$137
062-8015 Round 25.4 mm BK7 Concave HR 780 nm - 820 nm > 99.7 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$137
062-8020 Round 25.4 mm BK7 Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 58–61 calendar days
$137
062-8025 Round 25.4 mm BK7 Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$137
062-8050 Round 25.4 mm BK7 Concave HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$137
062-8100 Round 25.4 mm BK7 Concave HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$137
062-8200 Round 25.4 mm BK7 Concave HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$137
062-8250 Round 25.4 mm BK7 Concave HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$137
062-8400 Round 25.4 mm BK7 Concave HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
5 in stock Ships in: 2–5 calendar days
$137
062-9010 Round 25.4 mm BK7 Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$142
062-9020 Round 25.4 mm BK7 Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$142
062-9050 Round 25.4 mm BK7 Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$142
062-9100 Round 25.4 mm BK7 Convex HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$142
062-9200 Round 25.4 mm BK7 Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$142
062-9400 Round 25.4 mm BK7 Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$142
065-8005 Round 50.8 mm BK7 Concave HR 780 nm - 820 nm > 99.7 % 0 deg 0 min 0 sec
4 in stock Ships in: 2–5 calendar days
$201
065-8100 Round 50.8 mm BK7 Concave HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$201
065-8200 Round 50.8 mm BK7 Concave HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$201
065-8250 Round 50.8 mm BK7 Concave HR 780 nm - 820 nm > 99.5 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$201
065-8500 Round 50.8 mm BK7 Concave HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$201
065-9010 Round 50.8 mm BK7 Convex HR 780 nm - 820 nm > 99 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$214
065-9020 Round 50.8 mm BK7 Convex HR 780 nm - 820 nm > 99 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$214
065-9050 Round 50.8 mm BK7 Convex HR 780 nm - 820 nm > 99.5 % 0 deg 0 min 0 sec
Out of stock Ships in: 58–61 calendar days
$214
065-9100 Round 50.8 mm BK7 Convex HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$214
065-9200 Round 50.8 mm BK7 Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$214
065-9400 Round 50.8 mm BK7 Convex HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$214
082-8010 Round 25.4 mm UVFS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
082-8015 Round 25.4 mm FS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
082-8020 Round 25.4 mm FS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
082-8025 Round 25.4 mm UVFS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$165
082-8050 Round 25.4 mm FS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
082-8100 Round 25.4 mm UVFS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
082-8200 Round 25.4 mm UVFS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
082-8250 Round 25.4 mm UVFS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
082-8400 Round 25.4 mm FS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$165
082-8500 Round 25.4 mm UVFS Concave HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$165
082-9010 Round 25.4 mm FS Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$170
082-9020 Round 25.4 mm UVFS Convex HR 780 nm - 820 nm > 99.7 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$170
082-9050 Round 25.4 mm UVFS Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$170
082-9100 Round 25.4 mm UVFS Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$170
082-9200 Round 25.4 mm UVFS Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$170
082-9400 Round 25.4 mm FS Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$170
085-8050 Round 50.8 mm UVFS Concave HR 780 nm - 820 nm > 99.7 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$288
085-8100 Round 50.8 mm UVFS Concave HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$288
085-8200 Round 50.8 mm UVFS Concave HR 780 nm - 820 nm > 99.7 % 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$288
085-8500 Round 50.8 mm UVFS Concave HR 780 nm - 820 nm > 99.7 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$288
085-9010 Round 50.8 mm UVFS Convex HR 780 nm - 820 nm > 99.7 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$303
085-9050 Round 50.8 mm UVFS Convex HR 770 nm - 830 nm > 99.7 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$303
085-9100 Round 50.8 mm UVFS Convex HR 800 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$303
085-9400 Round 50.8 mm UVFS Convex HR 780 nm - 820 nm > 99.8 % 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$303

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Shape Type Round
Diameter Upper Tolerance 0 mm
Diameter Lower Tolerance -0.12 mm

Surface 1

Surface quality, grind or polish Polished
Clear Aperture, % > 85 %

Surface 1, Wavelength 1

Coating HR
AOI (angle of incidence) 0 deg 0 min 0 sec

Surface 2

Surface Shape Plano
Surface quality, grind or polish Polished

Description

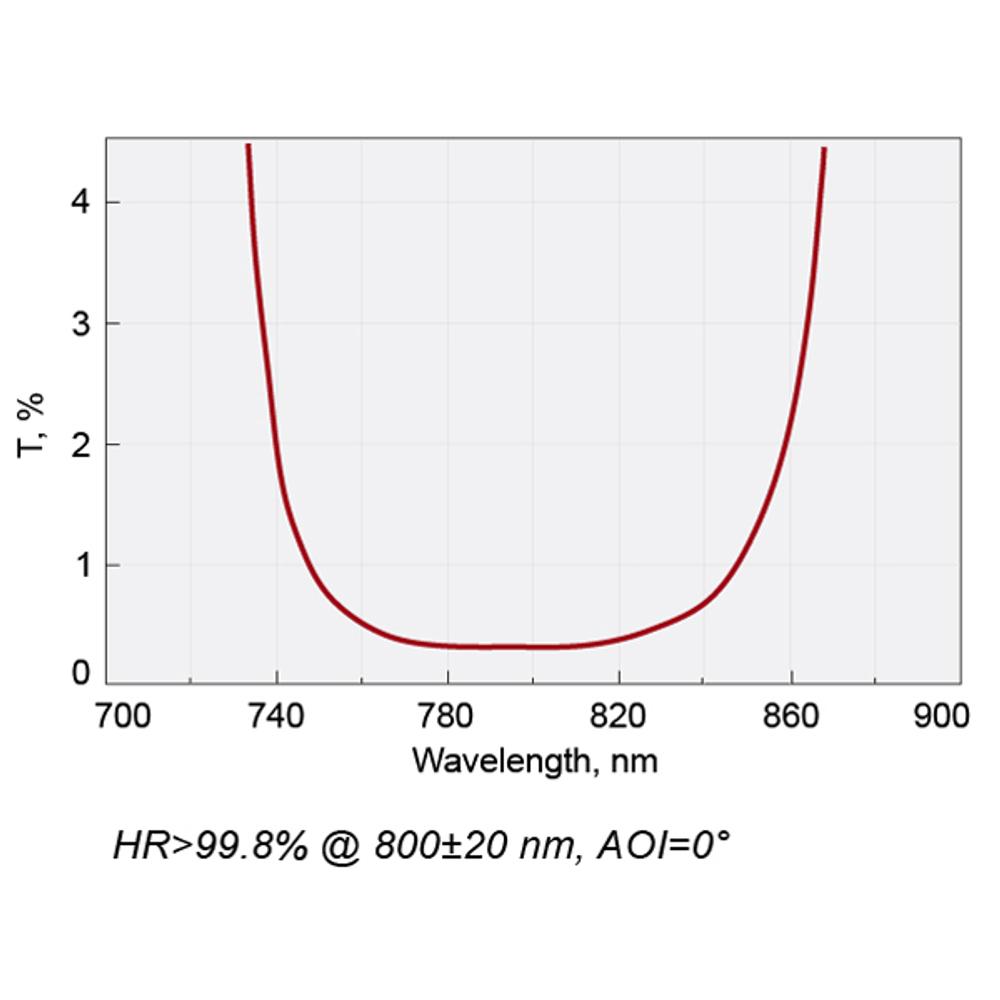

  • Coated @ 800±20 nm
  • Laser damage threshold: >100 mJ/cm², 50 fsec pulse, 800 nm typical
  • Manufactured from UVFS or BK7
  • 25.4 or 50.8 mm sizes available

High reflectivity (R>99.7%) dielectric coatings with high laser damage threshold are applied on laser rear mirrors. UVFS substrates are recommended for high power laser applications. Back side can be AR coated to avoid back reflection from second surface on request.

Downloads

PDF
EKSMA_Optics_Femtoline_Laser_Rear_Mirrors.pdf PDF · 91.7 KB
