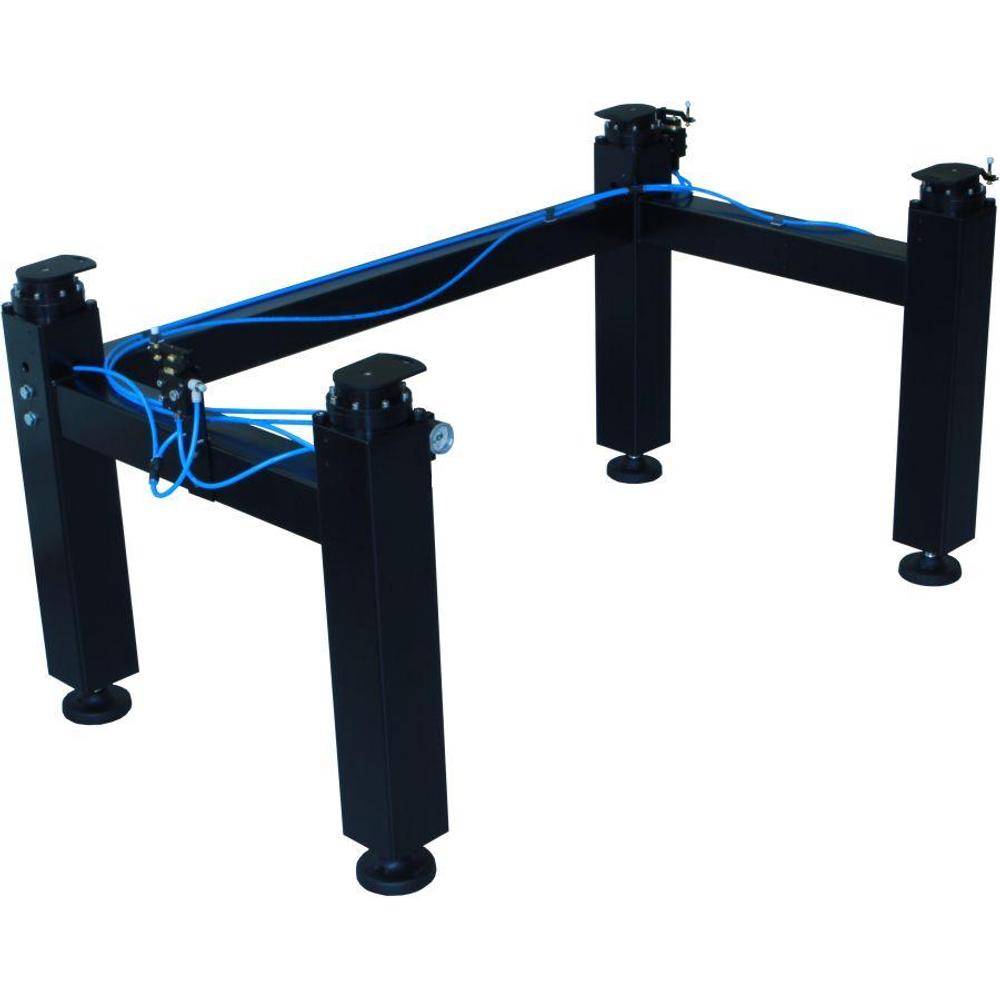

Pneumatic Vibration Isolation System 740
Pneumatic Vibration Isolation System 740 is a very convenient foundation for equipment which is sensitive to vibration, e. g. microscopes, scales, interferometers and similar devices. • Vertical resonance frequency:… Read more →
Configure & order — pick a catalog variant or configure your own
Product
Width
500 mm - 800 mm · 3 values
Any
mm
mm
Length
700 mm - 1800 mm · 3 values
Any
mm
mm
5
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Width | Length | Height | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 740-5127 | Pneumatic Vibration Isolation System Connected | 500 mm | 1200 mm | 700 mm | 672 kg |
Out of stock
—
|
| 740-5707 | Pneumatic Vibration Isolation System Connected | 500 mm | 700 mm | 700 mm | 672 kg |
Out of stock
—
|
| 740-6127 | Pneumatic Vibration Isolation System Connected | 650 mm | 1200 mm | 700 mm | 672 kg |
Out of stock
—
|
| 740-6187 | Pneumatic Vibration Isolation System Connected | 650 mm | 1800 mm | 700 mm | 672 kg |
Out of stock
—
|
| 740-8127 | Pneumatic Vibration Isolation System Connected | 800 mm | 1200 mm | 700 mm | 672 kg |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Pneumatic Vibration Isolation System Connected |
| Height | 700 mm |
| Load Capacity Horizontal | 672 kg |
| Vertical Natural Frequency | 1.5 Hz |
| Horizontal Natural Frequency | 1.7 Hz |
| Maximum Air Pressure | 6 Bar |
Description
Pneumatic Vibration Isolation System 740 is a very convenient foundation for equipment which is sensitive to vibration, e. g. microscopes, scales, interferometers and similar devices.
- Vertical resonance frequency: 1.5 Hz (average load)
- Horizontal resonance frequency: 1.7 Hz (average load)
- Air source pressure: up to 600 KPa (6 bar) (87 PSI)
- Maximum load capacity of each support leg: 168 kg.
- Working pressure of the system: 0.5-6 atm (bar)
The system features solid and light supports that come in various dimensions to support a wide range of table top sizes.
