High Power Laser Mirrors for Picosecond Applications
New ultra high damage threshold laser mirrors are designed for applications with picosecond lasers. These mirrors are produced using advanced IBS coating technology. Mirrors design wavelengths are 515 nm or 1030 nm with… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
Wavelength
Any
or
Size
Any
or
AOI
Any
or
R, % (s+p)/2
Any
LIDT
Any
or
Material
UV FS
45
catalog variants — refine the spec to narrow it down.
| SKU | LIDT · Wavelength · Size · AOI · R, % (s+p)/2 · Group · Material | |
|---|---|---|
| 041-0515PHR | >1 J/cm²·515 nm·ø12.7 x 6 mm·45°·99.9%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$100
|
| 041-0515PHR-i0 | >1 J/cm²·515 nm·ø12.7 x 6 mm·0°·99.95%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$100
|
| 041-0515PHR-i0-45 | >1 J/cm²·515 nm·ø12.7 x 6 mm·0-45°·99.9%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
11 in stock
Ships in: 2–5 calendar days
$119
|
| 041-0515PUHR | >2.5 J/cm²·515 nm·ø12.7 x 6 mm·45°·99.9%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
9 in stock
Ships in: 2–5 calendar days
$146
|
| 041-0515PUHR-i0 | >2.5 J/cm²·515 nm·ø12.7 x 6 mm·0°·99.95%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
19 in stock
Ships in: 2–5 calendar days
$146
|
| 041-1030PHR | >1.5 J/cm²·1030 nm·ø12.7 x 6 mm·45°·99.9%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$100
|
| 041-1030PHR-i0 | >1.5 J/cm²·1030 nm·ø12.7 x 6 mm·0°·99.95%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$100
|
| 041-1030PHR-i0-45 | >1.5 J/cm²·1030 nm·ø12.7 x 6 mm·0-45°·99.9%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
5 in stock
Ships in: 2–5 calendar days
$119
|
| 041-1030PUHR | >3 J/cm²·1030 nm·ø12.7 x 6 mm·45°·99.9%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
12 in stock
Ships in: 2–5 calendar days
$153
|
| 041-1030PUHR-i0 | >3 J/cm²·1030 nm·ø12.7 x 6 mm·0°·99.95%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$153
|
| 042-0515PHR | >1 J/cm²·515 nm·ø25.4 x 6 mm·45°·99.9%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
1 in stock
Ships in: 2–5 calendar days
$140
|
| 042-0515PHR-i0 | >1 J/cm²·515 nm·ø25.4 x 6 mm·0°·99.95%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$140
|
| 042-0515PHR-i0-45 | >1 J/cm²·515 nm·ø25.4 x 6 mm·0-45°·99.9%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
8 in stock
Ships in: 2–5 calendar days
$159
|
| 042-0515PUHR | >2.5 J/cm²·515 nm·ø25.4 x 6 mm·45°·99.9%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
25 in stock
Ships in: 2–5 calendar days
$206
|
| 042-0515PUHR-i0 | >2.5 J/cm²·515 nm·ø25.4 x 6 mm·0°·99.95%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
10 in stock
Ships in: 2–5 calendar days
$206
|
| 042-1030PHR | >1.5 J/cm²·1030 nm·ø25.4 x 6 mm·45°·99.9%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
Out of stock
Ships in: 62–65 calendar days
$140
|
| 042-1030PHR-i0 | >1.5 J/cm²·1030 nm·ø25.4 x 6 mm·0°·99.95%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
12 in stock
Ships in: 2–5 calendar days
$140
|
| 042-1030PHR-i0-45 | >1.5 J/cm²·1030 nm·ø25.4 x 6 mm·0-45°·99.9%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 042-1030PUHR | >3 J/cm²·1030 nm·ø25.4 x 6 mm·45°·99.9%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
7 in stock
Ships in: 2–5 calendar days
$219
|
| 042-1030PUHR-i0 | >3 J/cm²·1030 nm·ø25.4 x 6 mm·0°·99.95%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
5 in stock
Ships in: 2–5 calendar days
$219
|
| 045-0515PHR | >1 J/cm²·515 nm·ø50.8 x 12 mm·45°·99.9%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
5 in stock
Ships in: 2–5 calendar days
$492
|
| 045-0515PHR-i0 | >1 J/cm²·515 nm·ø50.8 x 12 mm·0°·99.95%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$492
|
| 045-0515PHR-i0-45 | >1 J/cm²·515 nm·ø50.8 x 12 mm·0-45°·99.9%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
1 in stock
Ships in: 2–5 calendar days
$564
|
| 045-0515PUHR | >2.5 J/cm²·515 nm·ø50.8 x 12 mm·45°·99.9%·Design wavelength - 515 nm, LIDT @ 10 ps, 20 kHz·UV FS |
1 in stock
Ships in: 2–5 calendar days
$636
|
| 045-0515PUHR-i0 | >2.5 J/cm²·515 nm·ø50.8 x 12 mm·0°·99.95%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$636
|
| 045-1030PHR | >1.5 J/cm²·1030 nm·ø50.8 x 12 mm·45°·99.9%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
5 in stock
Ships in: 2–5 calendar days
$492
|
| 045-1030PHR-i0 | >1.5 J/cm²·1030 nm·ø50.8 x 12 mm·0°·99.95%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
2 in stock
Ships in: 2–5 calendar days
$492
|
| 045-1030PHR-i0-45 | >1.5 J/cm²·1030 nm·ø50.8 x 12 mm·0-45°·99.9%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
2 in stock
Ships in: 2–5 calendar days
$564
|
| 045-1030PUHR | >3 J/cm²·1030 nm·ø50.8 x 12 mm·45°·99.9%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
2 in stock
Ships in: 2–5 calendar days
$660
|
| 045-1030PUHR-i0 | >3 J/cm²·1030 nm·ø50.8 x 12 mm·0°·99.95%·Design wavelength - 1030 nm, LIDT @ 10 ps, 20 kHz·UV FS |
6 in stock
Ships in: 2–5 calendar days
$660
|
| 061-3513PHR | >0.5 J/cm²·343+515+1030 nm·ø12.7 x 6 mm·45°·99.5%·UV FS |
26 in stock
Ships in: 2–5 calendar days
$222
|
| 061-5103PHR | >1 J/cm²·515+1030 nm·ø12.7 x 6 mm·45°·99.9%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
21 in stock
Ships in: 2–5 calendar days
$172
|
| 061-5103PHR-i0 | >1 J/cm²·515+1030 nm·ø12.7 x 6 mm·0°·99.9%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
Out of stock
Ships in: 62–65 calendar days
$172
|
| 061-5103PUHR | >2 J/cm²·515+1030 nm·ø12.7 x 6 mm·45°·99.5%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$219
|
| 061-5103PUHR-i0 | >2 J/cm²·515+1030 nm·ø12.7 x 6 mm·0°·99.5%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
Out of stock
Ships in: 62–65 calendar days
$219
|
| 062-3513PHR | >0.5 J/cm²·343+515+1030 nm·ø25.4 x 6 mm·45°·99.5%·UV FS |
22 in stock
Ships in: 2–5 calendar days
$330
|
| 062-5103PHR | >1 J/cm²·515+1030 nm·ø25.4 x 6 mm·45°·99.9%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
13 in stock
Ships in: 2–5 calendar days
$238
|
| 062-5103PHR-i0 | >1 J/cm²·515+1030 nm·ø25.4 x 6 mm·0°·99.9%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
18 in stock
Ships in: 2–5 calendar days
$238
|
| 062-5103PUHR | >2 J/cm²·515+1030 nm·ø25.4 x 6 mm·45°·99.5%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
11 in stock
Ships in: 2–5 calendar days
$298
|
| 062-5103PUHR-i0 | >2 J/cm²·515+1030 nm·ø25.4 x 6 mm·45°·99.5%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
9 in stock
Ships in: 2–5 calendar days
$298
|
| 065-3513PHR | >0.5 J/cm²·343+515+1030 nm·ø50.8 x 12 mm·45°·99.5%·UV FS |
3 in stock
Ships in: 2–5 calendar days
$834
|
| 065-5103PHR | >1 J/cm²·515+1030 nm·ø50.8 x 12 mm·45°·99.9%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
9 in stock
Ships in: 2–5 calendar days
$540
|
| 065-5103PHR-i0 | >1 J/cm²·515+1030 nm·ø50.8 x 12 mm·0°·99.9%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
12 in stock
Ships in: 2–5 calendar days
$540
|
| 065-5103PUHR | >2 J/cm²·515+1030 nm·ø50.8 x 12 mm·45°·99.5%·Design wavelength - 515+1030 nm, LIDT @ 10 ps, 50 kHz·UV FS |
1 in stock
Ships in: 2–5 calendar days
$780
|
| 065-5103PUHR-i0 | >2 J/cm²·515+1030 nm·ø50.8 x 12 mm·0°·99.5%·UV FS |
Out of stock
Ships in: 58–61 calendar days
$780
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
Substrate
| Material | UV grade fused silica |
| S1 Surface flatness | λ / 10 at 633 nm |
| S1 Surface quality | 20-10 scratch&dig (MIL-PRF-13830B) |
| S2 Surface quality | Commercial polish |
| Diameter tolerance | +0.00 mm / -0.12 mm |
| Thickness tolerance | ±0.25 mm |
| Wedge | < 3 min |
| Chamfer | 0.3 mm at 45° typical |
Coating
| Technology | Ion Beam Sputtering (IBS) |
| Adhesion and Durability | Per MIL-C-675A, Insoluble in lab solvents |
| Clear apterture | Exceeds 85% of diameter |
| Coated surface flatness | λ / 8 at 633 nm over 80% of diameter |
| Laser Induced Damage Threshold | Measured at design wavelength, 10 ps pulse, 20 kHz |
Classification
| Coating | dielectric |
Description
New ultra high damage threshold laser mirrors are designed for applications with picosecond lasers. These mirrors are produced using advanced IBS coating technology. Mirrors design wavelengths are 515 nm or 1030 nm with reflection values R>99.9%.

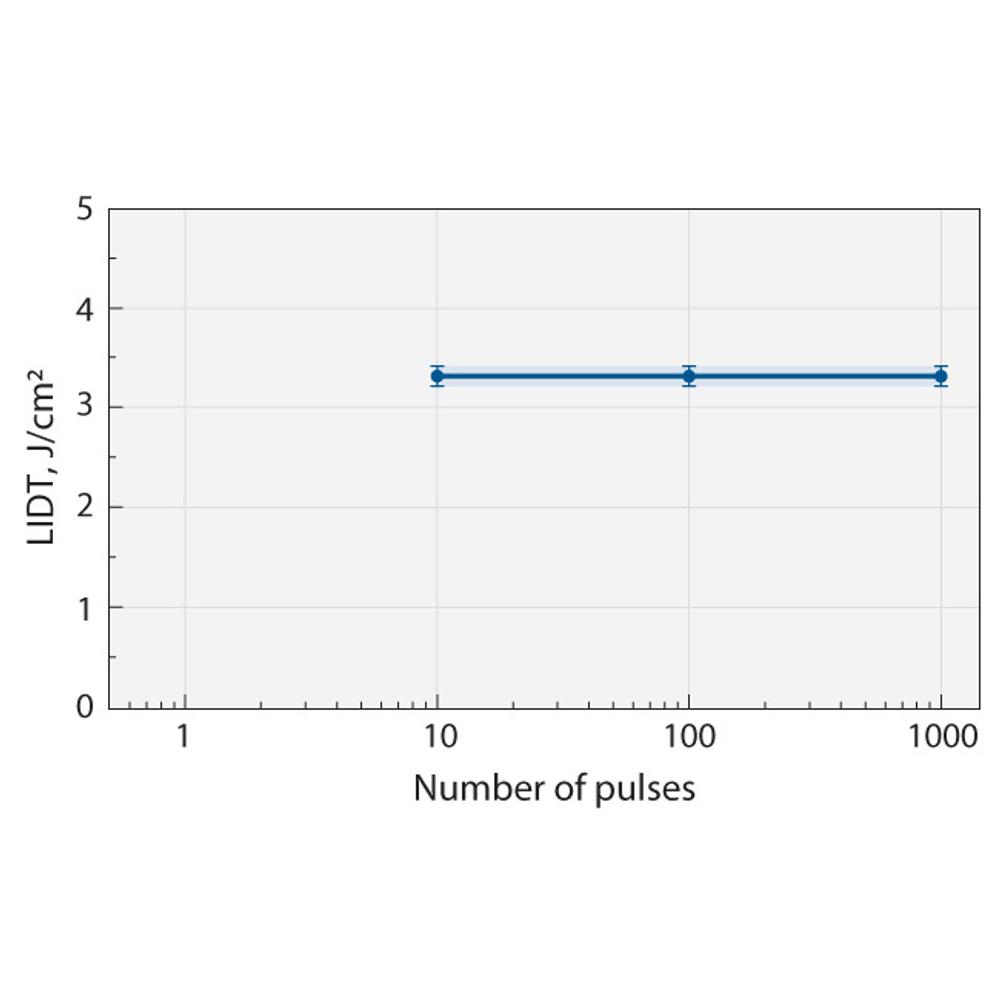

Laser induced damage threshold was measured at mirror design wavelength with 10 ps pulse, 20 kHz under ISO standard 21254-2 1000-on-1 conditions.
