Cylindrical Lens Kits

Configure & order — pick a catalog variant or configure your own

Material Any

or

Coating Any

or

16 catalog variants — refine the spec to narrow it down.

SKU	Coating · Material · Group
140-0212	uncoated·BK7·BK7 Lens Kits	Out of stock Ships in: 62–65 calendar days $1,206
140-0212-AR1050-1700	BBAR @ 1050-1700 nm, R<0.7 %·BK7	Out of stock —
140-0212-AR1064	AR @ 1064 nm, R<0.25 %·BK7·BK7 Lens Kits	Out of stock Ships in: 62–65 calendar days $1,967
140-0212-AR400-700	BBAR @ 400-700 nm, R<0.9 %·BK7	Out of stock —
140-0212-AR650-1100	BBAR @ 650-1100 nm, R<0.7 %·BK7·BK7 Lens Kits	Out of stock Ships in: 62–65 calendar days $2,304
140-0212-ARD1064	AR @ 532 + 1064 nm, R<0.5 %·BK7	Out of stock —
140-1212	uncoated·UVFS·UV FS Lens Kits	Out of stock Ships in: 62–65 calendar days $2,158
140-1212-AR1030	AR @ 1000-1060 nm, R<0.3 %·UVFS	Out of stock —
140-1212-ARB1000HT	BBAR @ 900-1100 nm, R<0.1 %·UVFS	Out of stock —
140-1212-ARB300	BBAR @ 210-400 nm, R<2 %·UVFS·UV FS Lens Kits	Out of stock Ships in: 62–65 calendar days $3,452
140-1212-ARB625	BBAR @ 350-900 nm, R<1.5 %·UVFS·UV FS Lens Kits	Out of stock Ships in: 62–65 calendar days $3,338
140-1212-ARB800	BBAR @ 700-900 nm, R<0.5 %·UVFS	Out of stock —
140-1212-ARB800HT	BBAR @ 700-900 nm, R<0.1 %·UVFS·UV FS Lens Kits	Out of stock Ships in: 62–65 calendar days $4,315
140-1212-ARB825	BBAR @ 650-1100 nm, R<0.7 %·UVFS	Out of stock —
140-1212-ARD1030	AR @ 515 + 1030 nm, R<0.5 %·UVFS	Out of stock —
140-1212-ARD1030HT	AR @ 515 + 1030 nm, R<0.1 %·UVFS·UV FS Lens Kits	Out of stock Ships in: 62–65 calendar days $4,188

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.

Specifications

Code	Material	Type	Size	Focus length
120-1205E	UVFS	plano-convex	25.4 x 50.8 mm	50 mm
120-1210E	UVFS	plano-convex	25.4 x 50.8 mm	75 mm
120-1215E	UVFS	plano-convex	25.4 x 50.8 mm	100 mm
120-1220E	UVFS	plano-convex	25.4x 50.8 mm	150 mm
120-1225E	UVFS	plano-convex	25.4 x 50.8 mm	200 mm
120-1230E	UVFS	plano-convex	25.4 x 50.8 mm	300 mm
120-1235E	UVFS	plano-convex	25.4 x 50.8 mm	500 mm
120-1240E	UVFS	plano-convex	25.4 x 50.8 mm	1000 mm
122-1205E	UVFS	plano-concave	25.4 x 50.8 mm	-50 mm
122-1210E	UVFS	plano-concave	25.4 x 50.8 mm	-75 mm
122-1215E	UVFS	plano-concave	25.4 x 50.8 mm	-100 mm
122-1220E	UVFS	plano-concave	25.4 x 50.8 mm	-150 mm

Code	Material	Type	Size	Focus length
120-0205E	BK7	plano-convex	25.4 x 50.8 mm	50 mm
120-0210E	BK7	plano-convex	25.4 x 50.8 mm	75 mm
120-0215E	BK7	plano-convex	25.4 x 50.8 mm	100 mm
120-0220E	BK7	plano-convex	25.4x 50.8 mm	150 mm
120-0225E	BK7	plano-convex	25.4 x 50.8 mm	200 mm
120-0230E	BK7	plano-convex	25.4 x 50.8 mm	300 mm
120-0235E	BK7	plano-convex	25.4 x 50.8 mm	500 mm
120-0240E	BK7	plano-convex	25.4 x 50.8 mm	1000 mm
122-0205E	BK7	plano-concave	25.4 x 50.8 mm	-50 mm
122-0210E	BK7	plano-concave	25.4 x 50.8 mm	-75 mm
122-0215E	BK7	plano-concave	25.4 x 50.8 mm	-100 mm
122-0220E	BK7	plano-concave	25.4 x 50.8 mm	-150 mm

Material	BK7, UV FS
Surface quality	40-20 scratch & dig (MIL-PRF-13830B)
Clear aperture	90% of the diameter
Size tolerance	±0.5 mm
Thickness tolerance	±0.5 mm
Surface irregularity	λ / 8 @ 633 nm
Concentricity	3 arcmin
Paraxial focal length: / UV FS / BK7	±2% @ 355 nm / ±2% @ 546 nm

Description

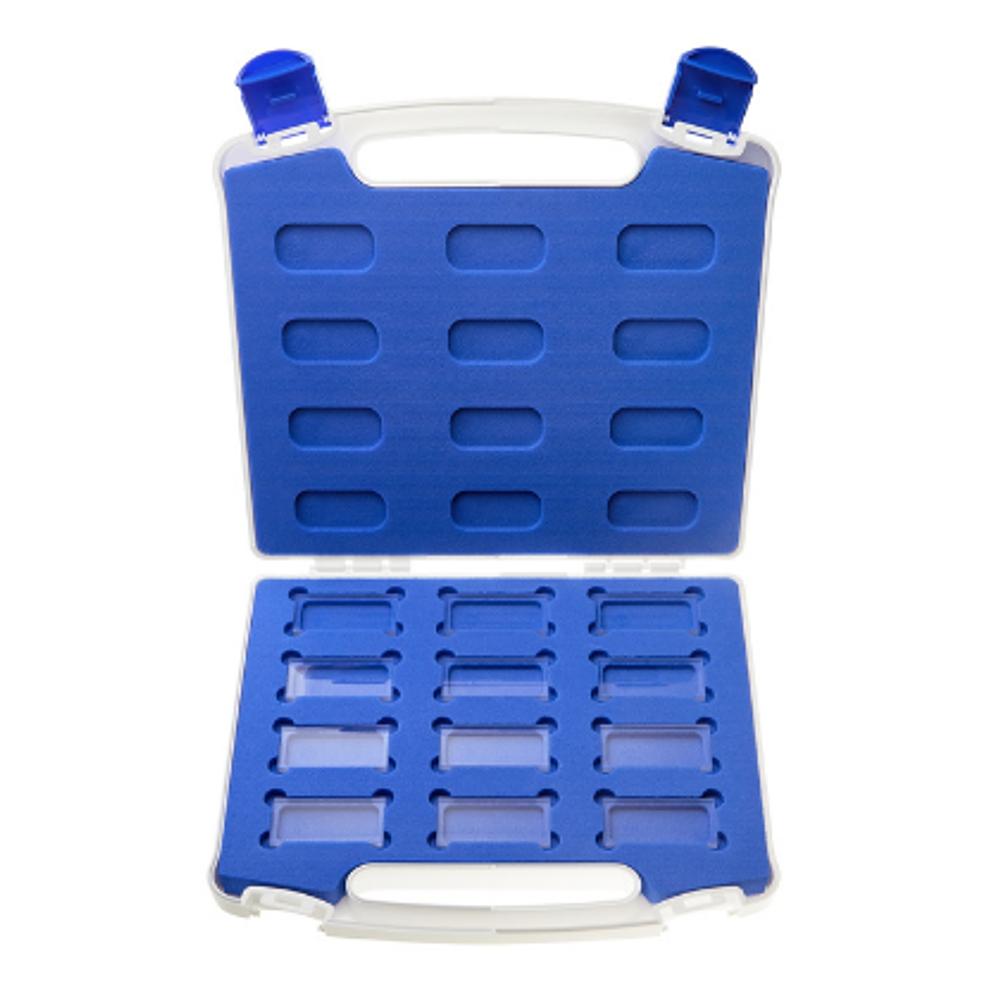

Cylindrical lens kits include 12 pieces of our most popular cylindrical lenses packed into a plastic box for safe handling and storage. These lens kits are handy for research purposes where lenses of different focal lengths are needed. Kits contain both plano-convex and plano-concave lenses of 25.4 mm x 50.8 mm (1" x 2") dimensions.

We offer cylindrical lens kits made of N-BK7 glass or UV fused silica. Lenses can be supplied uncoated or with anti-reflection coatings.
