Nd:YAG Laser Rear Mirrors

Nd:YAG Laser Rear Mirrors

Laser rear mirrors with hard dielectric coatings for pulsed and CW high power fundamental Nd:YAG laser applications. High reflectivity (R>99.7%) coatings are applied on laser rear mirrors. The UVFS substrates are… Read more →

From $123 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Material Any

Surface 1

Surface Shape Any

Surface 1, Wavelength 1

Reflectivity, % 99.7 % - 100 % · 2 values Any %
%
36 catalog variants — refine the spec to narrow it down.
SKU Shape Type Diameter Material Surface Shape Coating Wavelength Reflectivity, % AOI (angle of incidence)
032-8005 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$123
032-8010 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.7 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$123
032-8015 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$123
032-8020 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$123
032-8025 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.7 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$123
032-8050 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.7 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
3 in stock Ships in: 2–5 calendar days
$123
032-8100 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$123
032-8200 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
4 in stock Ships in: 2–5 calendar days
$123
032-8250 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$123
032-8400 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$123
032-8500 Round 25.4 mm BK7 Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$123
032-9010 Round 25.4 mm BK7 Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$129
032-9020 Round 25.4 mm BK7 Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$129
032-9050 Round 25.4 mm BK7 Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$129
032-9100 Round 25.4 mm BK7 Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$129
032-9200 Round 25.4 mm BK7 Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$129
032-9400 Round 25.4 mm BK7 Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$129
042-8005 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$150
042-8010 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$150
042-8015 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$150
042-8020 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
4 in stock Ships in: 2–5 calendar days
$150
042-8025 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$150
042-8050 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$150
042-8100 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
9 in stock Ships in: 2–5 calendar days
$150
042-8200 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
20 in stock Ships in: 2–5 calendar days
$150
042-8250 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$150
042-8400 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
9 in stock Ships in: 2–5 calendar days
$150
042-8500 Round 25.4 mm UVFS Concave HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
3 in stock Ships in: 2–5 calendar days
$150
042-9010 Round 25.4 mm UVFS Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$156
042-9020 Round 25.4 mm UVFS Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$156
042-9030 Round 25.4 mm UVFS Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
1 in stock Ships in: 2–5 calendar days
$156
042-9050 Round 25.4 mm UVFS Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
2 in stock Ships in: 2–5 calendar days
$156
042-9100 Round 25.4 mm UVFS Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$156
042-9200 Round 25.4 mm UVFS Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$156
042-9300 Round 25.4 mm UVFS Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
Out of stock Ships in: 62–65 calendar days
$156
042-9400 Round 25.4 mm UVFS Convex HR 1064 nm - 1064 nm 99.8 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec
7 in stock Ships in: 2–5 calendar days
$156

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Shape Type Round
Diameter 25.4 mm
Diameter Upper Tolerance 0 mm
Diameter Lower Tolerance -0.12 mm

Surface 1

Surface quality, grind or polish Polished
Power and Irregularity, fringes @633 nm 0(0.2)
Clear Aperture, % 85 % - 100 %

Surface 1, Wavelength 1

Coating HR
Wavelength 1064 nm - 1064 nm
AOI (angle of incidence) 0 deg 0 min 0 sec - 0 deg 0 min 0 sec

Surface 2

Surface Shape Plano
Surface quality, grind or polish Polished

Description

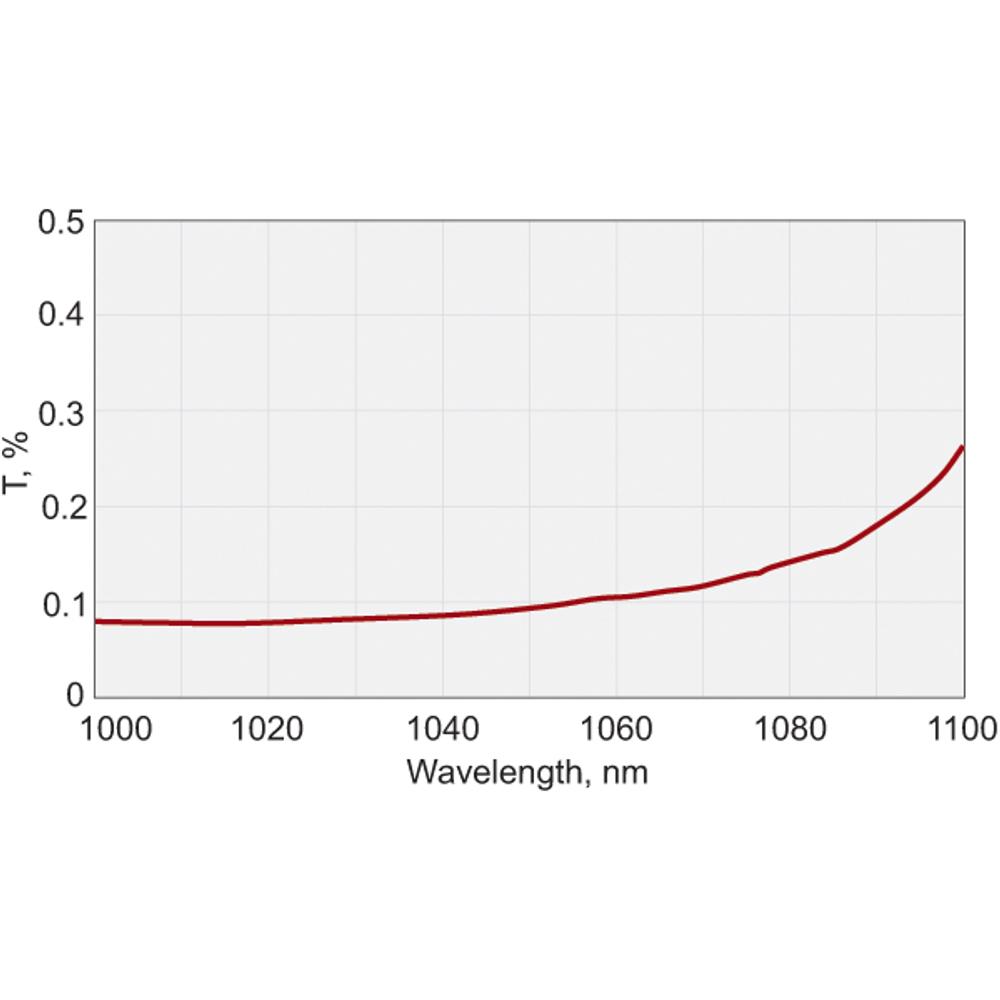

Laser rear mirrors with hard dielectric coatings for pulsed and CW high power fundamental Nd:YAG laser applications. High reflectivity (R>99.7%) coatings are applied on laser rear mirrors. The UVFS substrates are suggested for pulsed and CW high power fundamental Nd:YAG laser application.

Downloads

PDF
EKSMA_Optics_Laser_Rear_Mirrors_Nd-YAG.pdf PDF · 64.8 KB
