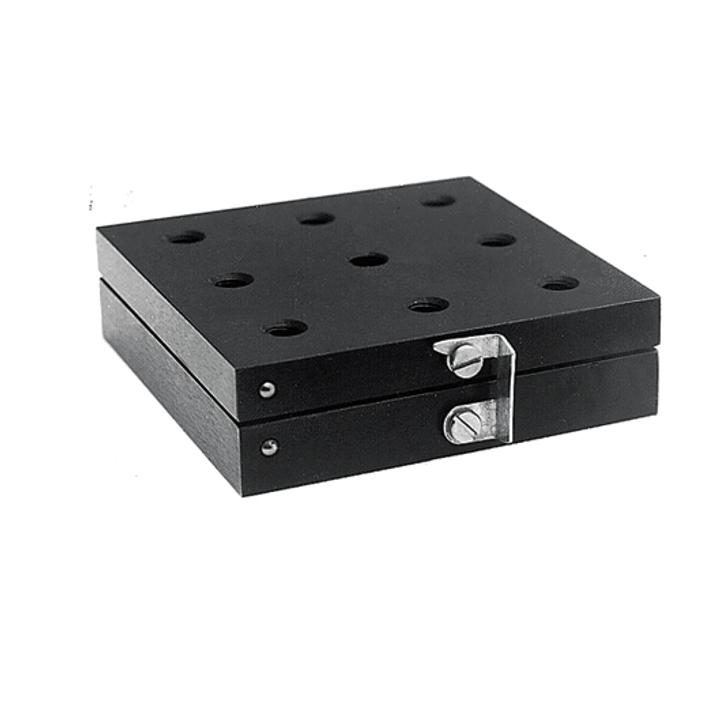

Kinematic Bases 850-0020, 850-0022 SKU: 850-0022
• Kinematic repositioning with repeatability of several arcsec • Exclusive mounting disk for extra freedom in positioning (850-0020 only) • Hooks of spring steel for reliable locking and quick-release These Kinematic Bases are used for repeated positioning of groups of units…
Variant specifications
| Specification | Value |
|---|---|
| Dimensions | 50x50 mm |
Shared product specifications
These specifications apply across the Kinematic Bases 850-0020, 850-0022 product family.
| 850-0020 Kinematic Bases - DWG file | |
| 850-0020 Kinematic Bases - STEP file / 850-0022 Kinematic Bases - STEP file |
Classification
| Type | base-positioner |
Variant files
Technical drawings, models and data files for SKU 850-0022.
Product brochures
Shared documentation for the complete product family.
