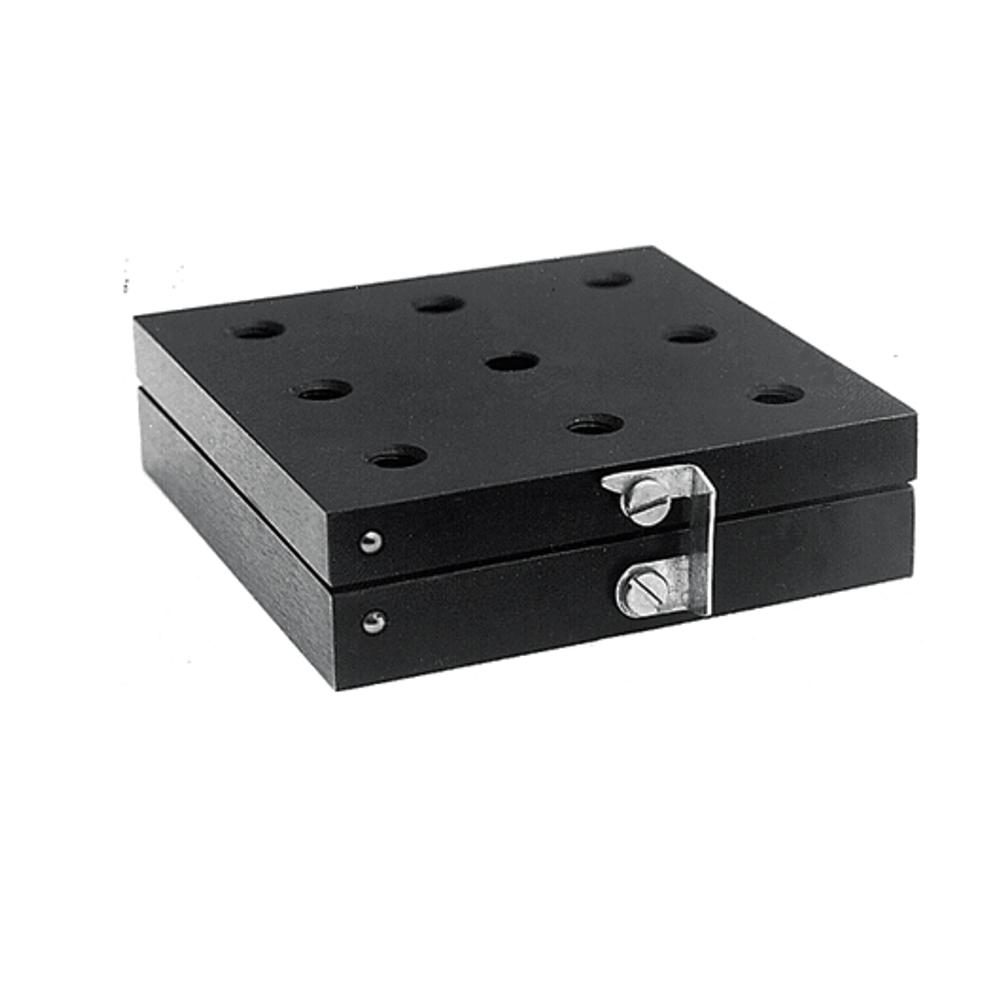

Kinematic Bases 850-0020, 850-0022
• Kinematic repositioning with repeatability of several arcsec • Exclusive mounting disk for extra freedom in positioning (850-0020 only) • Hooks of spring steel for reliable locking and quick-release These Kinematic… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| 850-0020 Kinematic Bases - DWG file | |
| 850-0020 Kinematic Bases - STEP file / 850-0022 Kinematic Bases - STEP file |
Classification
| Type | base-positioner |
Description
- Kinematic repositioning with repeatability of several arcsec
- Exclusive mounting disk for extra freedom in positioning (850-0020 only)
- Hooks of spring steel for reliable locking and quick-release
These Kinematic Bases are used for repeated positioning of groups of units mounted on their platforms, using M6 mounting holes. Alternatively, M6 screw can be fit through a clearance hole from beneath.
Platform can be unhooked from the bottom plate together with all the units still mounted on it. It can later be replaced just as it was, with a repeatability of several arcsec.
The bases use a kinematic scheme, where three steel balls register with a cone, a v-groove, and a flat. The balls and registers are of hardened polished steel. Hooks prevent the platform from accidental movements. The bottom plate is fastened through clearance holes or a slot. 850-0020 has a revolving mounting disk – a degree of freedom of positioning.
Material - aluminium.
Finish - black anodized.
