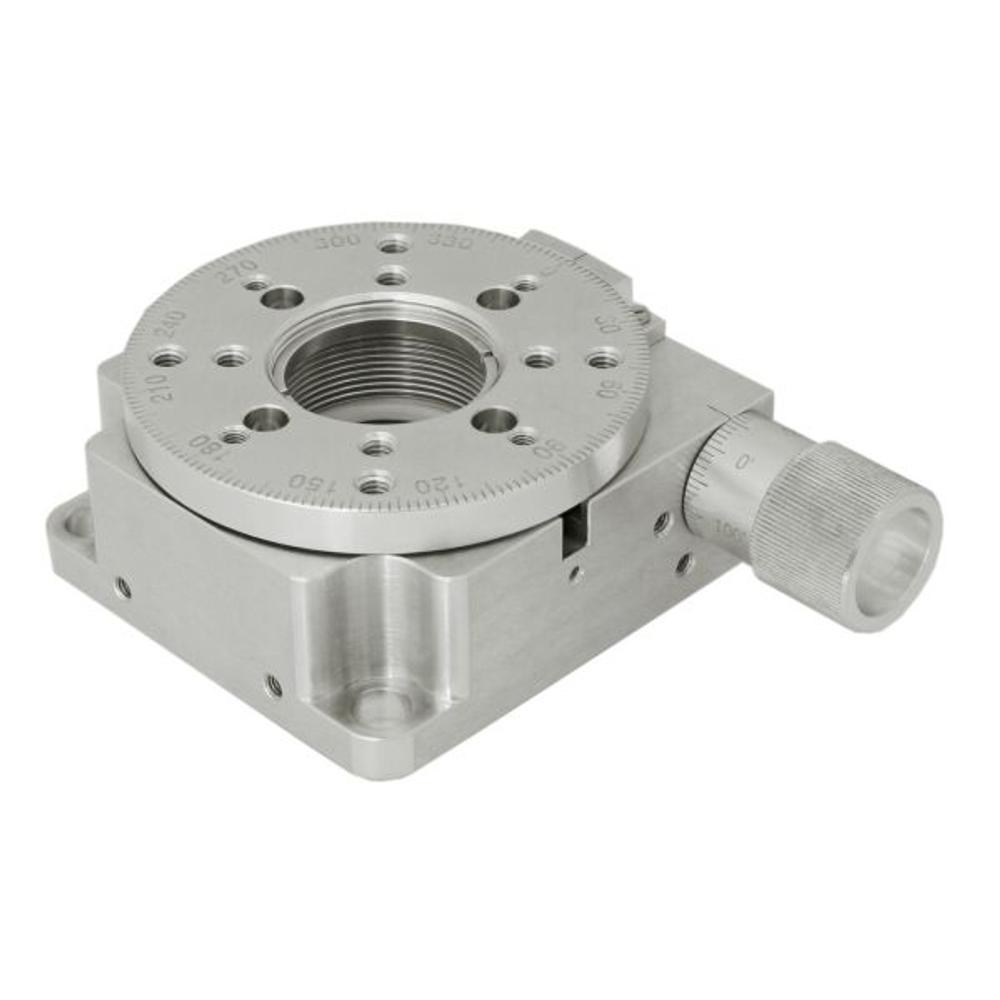

Vacuum Compatible Rotation Stage 860-0155V
• Continuous rotation • Very compact design • No need to use extra adapter plate • Non vacuum version • Motorized version of the Stages The main advantage of this precise rotation stage is that it has very compact… Read more →
Order
| SKU | Product Type | Vacuum Compatibility | Rotation Range, coarse | Load Capacity Horizontal | Mount Clear Aperture | |
|---|---|---|---|---|---|---|
| 860-0155EV-01 | Manual Rotation Stage | True | 360 deg | 8 kg | 23 mm |
Out of stock
—
|
| 860-0155V-01 | Manual Rotation Stage | True | 360 deg | 8 kg | 23 mm |
Out of stock
—
|
Specifications
| Product Type | Manual Rotation Stage |
| Vacuum Compatibility | True |
| Rotation Range, coarse | 360 deg |
| Reading Accuracy - Angular | 2 min |
| Wobble | 36 sec |
| Eccentricity | 10 µm |
| Load Capacity Horizontal | 8 kg |
| Load Capacity Vertical | 1.7 kg |
| Weight | 0.55 kg |
| Mount Clear Aperture | 23 mm |
| Rotation Resolution | 2 min |
| Rotation Sensitivity | 24 sec |
Description
- Continuous rotation
- Very compact design
- No need to use extra adapter plate
- Non vacuum version
- Motorized version of the Stages
The main advantage of this precise rotation stage is that it has very compact dimensions and low-profile together with the great aperture in the middle. This rotation stage has two modifications with different apertures: M27x1 or 30 mm. 860-0155V doesn't need additional adapter plate to be mounted on any surface as it has 3 M6 holes on bottom.
