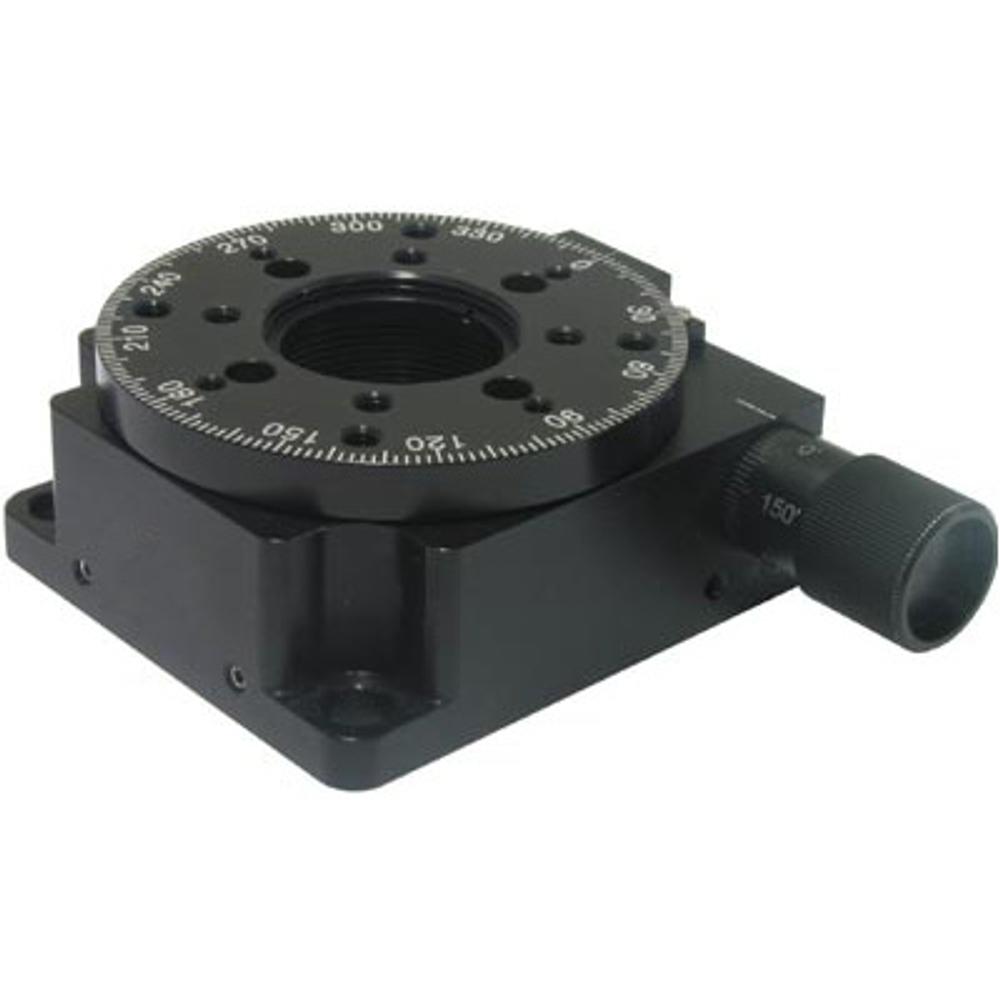

Rotation Stages 860-0155
The main advantage of this precise rotation stage is that it has very compact dimensions and low-profile together with the great aperture in the middle. This rotation stage has two modifications with different… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 860-0155-01 | M27x1; Metric version |
Out of stock
$482
|
| 860-0155-01E | M27x1; Inch version |
Out of stock
$482
|
| 860-0155-02 | 30 mm; Metric version |
Out of stock
$482
|
| 860-0155-02E | 30 mm; Inch version |
Out of stock
$482
|
Specifications
| Rotation range | 360° |
| Resolution | 2 arcmin |
| Reading accuracy | 2 arcmin |
| Sensitivity | 0.4 arcmin |
| Wobble | 0.6 arcmin |
| Eccentricity | 10 µm |
| Load capacity: / horizontal / radial | 8 kg / 1.7 kg |
Classification
| Type | translation|rotation |
Description
The main advantage of this precise rotation stage is that it has very compact dimensions and low-profile together with the great aperture in the middle. This rotation stage has two modifications with different apertures: M27x1 or 30 mm. 860-0155 doesn't need additional adapter plate to be mounted on any surface as it has 3 M6 holes on bottom.
Vacuum Compatible Rotation Stage 860-0155V is also available.
