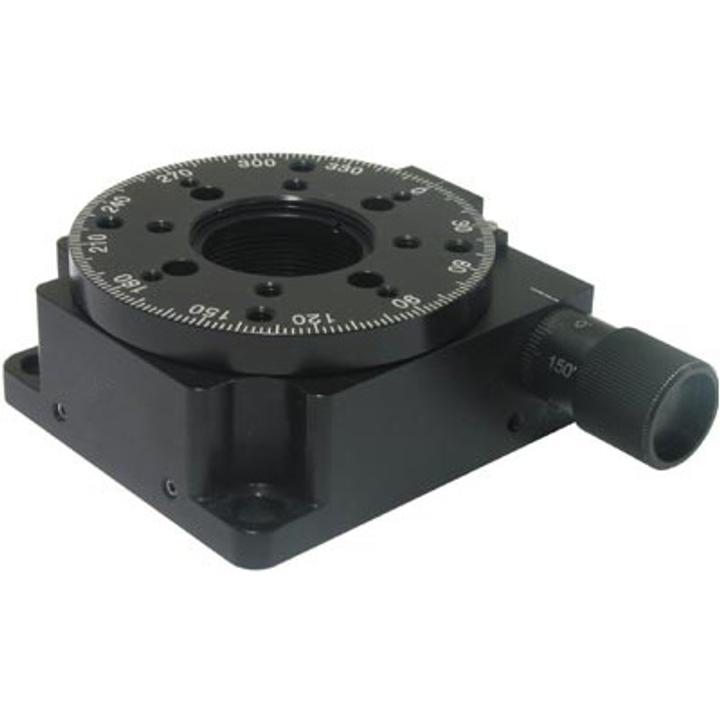

Rotation Stages 860-0155 SKU: 860-0155-01
The main advantage of this precise rotation stage is that it has very compact dimensions and low-profile together with the great aperture in the middle. This rotation stage has two modifications with different apertures: M27x1 or 30 mm. 860-0155 doesn't need additional adapter…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Rotation Stage |
| Vacuum Compatibility | False |
| Rotation Range, coarse | 360 deg |
| Reading Accuracy - Angular | 2 min |
| Wobble | 36 sec |
| Eccentricity | 10 µm |
| Platform Size, mm | Ø60.6 |
| Load Capacity Horizontal | 8 kg |
| Load Capacity Vertical | 1.7 kg |
| Weight | 0.55 kg |
| Mount Clear Aperture | 23 mm |
| Width | 64 mm |
| Length | 61 mm |
| Height | 29 mm |
| Rotation Resolution | 2 min |
| Rotation Sensitivity | 24 sec |
