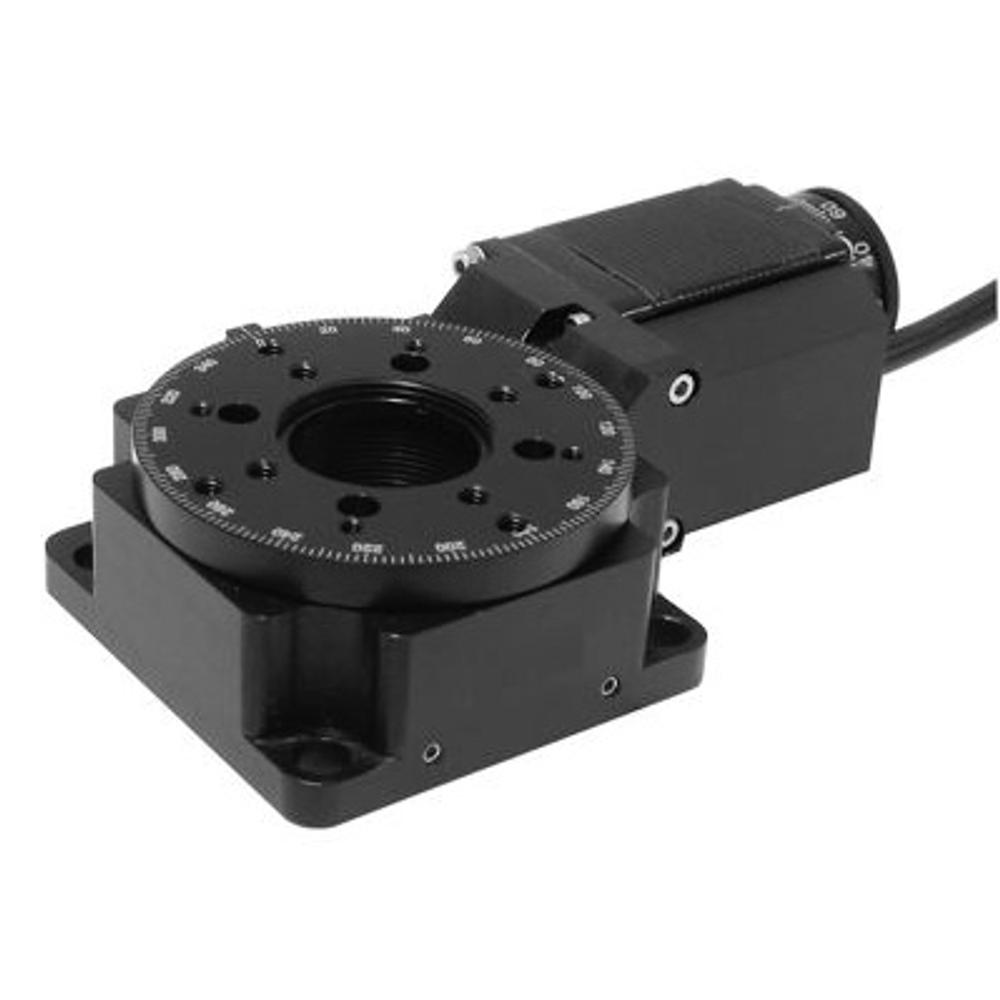

Motorized Rotation Stages 960-0160
• 360° rotation with 0.6 arcmin resolution. • 960-0161 has an M27×1 mounting hole for 1" optics (Ø23 mm clear aperture). 960-0162 has a Ø30 mm aperture. • Imperial version availabe on request. • Encoders or Revolution… Read more →
Listed in
Order
Specifications
| Rotation range | 360° |
| Resolution: / in full step mode / in 1 / 8 step mode | 0.6 arcmin / 4.5 arcsec |
| Max. rotation speed* | 50 deg / s |
| Wobble | 0.6 arcmin |
| Eccentricity | 10 µm |
| Load capacity: / horizontal / radial / torque | 6 kg / 1.7 kg / 0.5 N / m |
| Cable | integrated, 1.6 m length |
| Motor connector | HDB15(M) |
| Stepper motor | 28 |
| Optocoupler reference home switch | 1 |
| Switch polarity | Pushed is open, sensor schematic |
Description
- 360° rotation with 0.6 arcmin resolution.
- 960-0161 has an M27×1 mounting hole for 1" optics (Ø23 mm clear aperture). 960-0162 has a Ø30 mm aperture.
- Imperial version availabe on request.
- Encoders or Revolution sensors are available on request. More information
