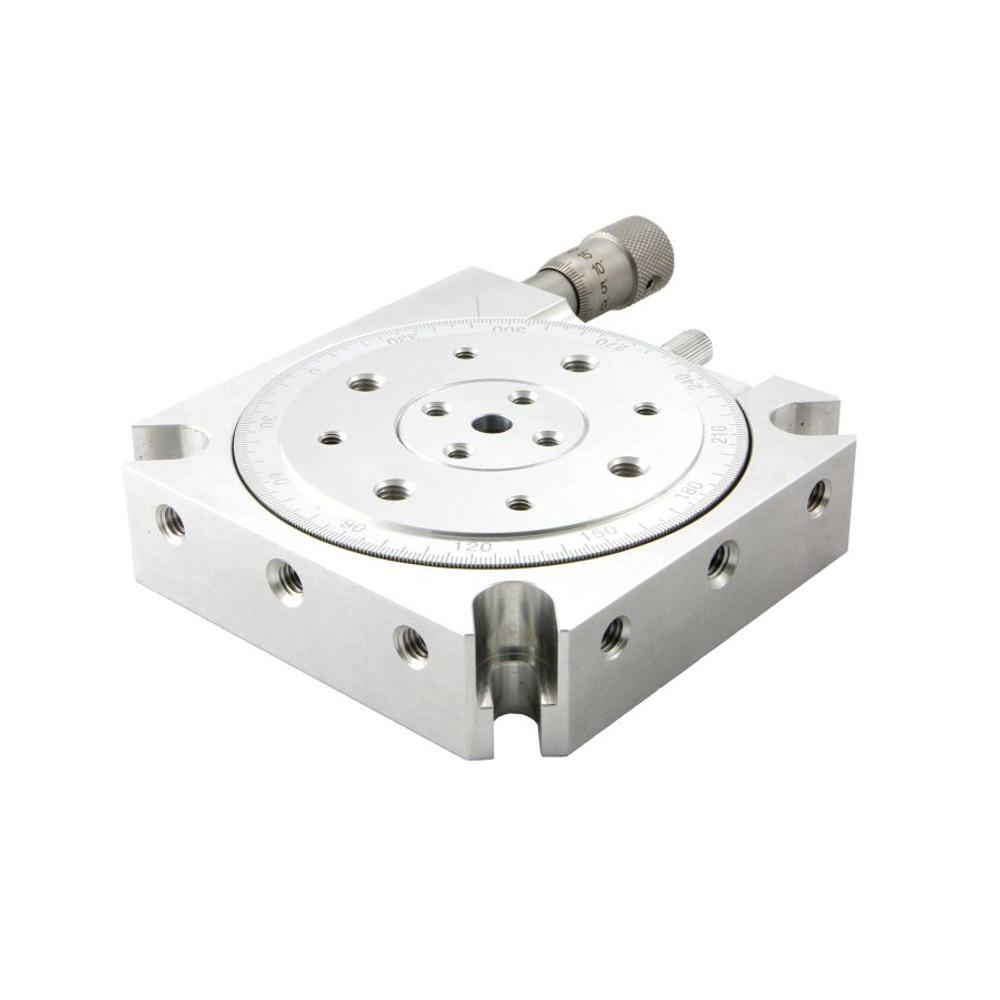

Vacuum Compatible Precision Rotary Stage 860-0140V
• Centered platform insert • M30x1 diameter platform insert • Two 25 mm (1 Inch) retaining rings • Non-vacuum version is available Vacuum Compatible Precision Rotary Stage has a micrometer screw. Fine motion range… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 860-0140V |
Out of stock
—
|
Specifications
| Rotation range - coarse | 360°, resolution 1° |
| Rotation range - fine | 15°, resolution 1arcmin |
| Sensitivity | 20 arcsec |
| Reading accuracy | 1 arcmin |
| Wobble | 1 arcmin |
| Load capacity: / horizontal / vertical | 12 kg / 5 kg |
| Max drive torque | 0.3 kgm |
Classification
| Type | translation|rotation |
Description
- Centered platform insert
- M30x1 diameter platform insert
- Two 25 mm (1 Inch) retaining rings
- Non-vacuum version is available
Vacuum Compatible Precision Rotary Stage has a micrometer screw. Fine motion range is 15° with resolution of 1 arcmin. For coarse adjustment release the fixing screw and turn the platform.
The platform has M6 and M4 mounting holes. Precision rotary stage has an aperture of M30x1 with clear aperture of 25 mm. Two retaining rings with 1 inch clear aperture are included.
To close platform's aperture you can thread in an insert platform (included) with a centered clearance hole and M6, M4 holes. Precision rotary stage can be fastened horizontally and vertically using M6 screws.
