Precision Rotary Stage 860-0140
• M30×1 diameter platform insert • two 25 mm (1 inch) retaining rings • centered platform insert • Inch version 860-0140E is available We offer fine rotary stage 860-0140 with a micrometer screw. Fine motion range is… Read more →
Order
| SKU | Product Type | Vacuum Compatibility | Rotation Range, coarse | Platform Size, mm | Load Capacity Horizontal | Mount Clear Aperture | |
|---|---|---|---|---|---|---|---|
| 860-0140 | Manual Rotation Stage | False | 360 deg 0 min 0 sec | 75×75 | 12 kg | 25 mm |
Out of stock
$525
|
Specifications
| Product Type | Manual Rotation Stage |
| Vacuum Compatibility | False |
| Rotation Range, coarse | 360 deg 0 min 0 sec |
| Rotation Range, fine | 15 deg 0 min 0 sec |
| Reading Accuracy - Angular | 0 deg 1 min 0 sec |
| Wobble | 0 deg 1 min 0 sec |
| Platform Size, mm | 75×75 |
| Load Capacity Horizontal | 12 kg |
| Load Capacity Vertical | 5 kg |
| Mounting Thread | M6, M4 |
| Mount Clear Aperture | 25 mm |
| Width | 90 mm |
| Length | 135 mm |
| Height | 22 mm |
| Rotation Resolution | 0 deg 1 min 0 sec |
| Rotation Sensitivity | 0 deg 0 min 20 sec |
Description
- M30×1 diameter platform insert
- two 25 mm (1 inch) retaining rings
- centered platform insert
- Inch version 860-0140E is available

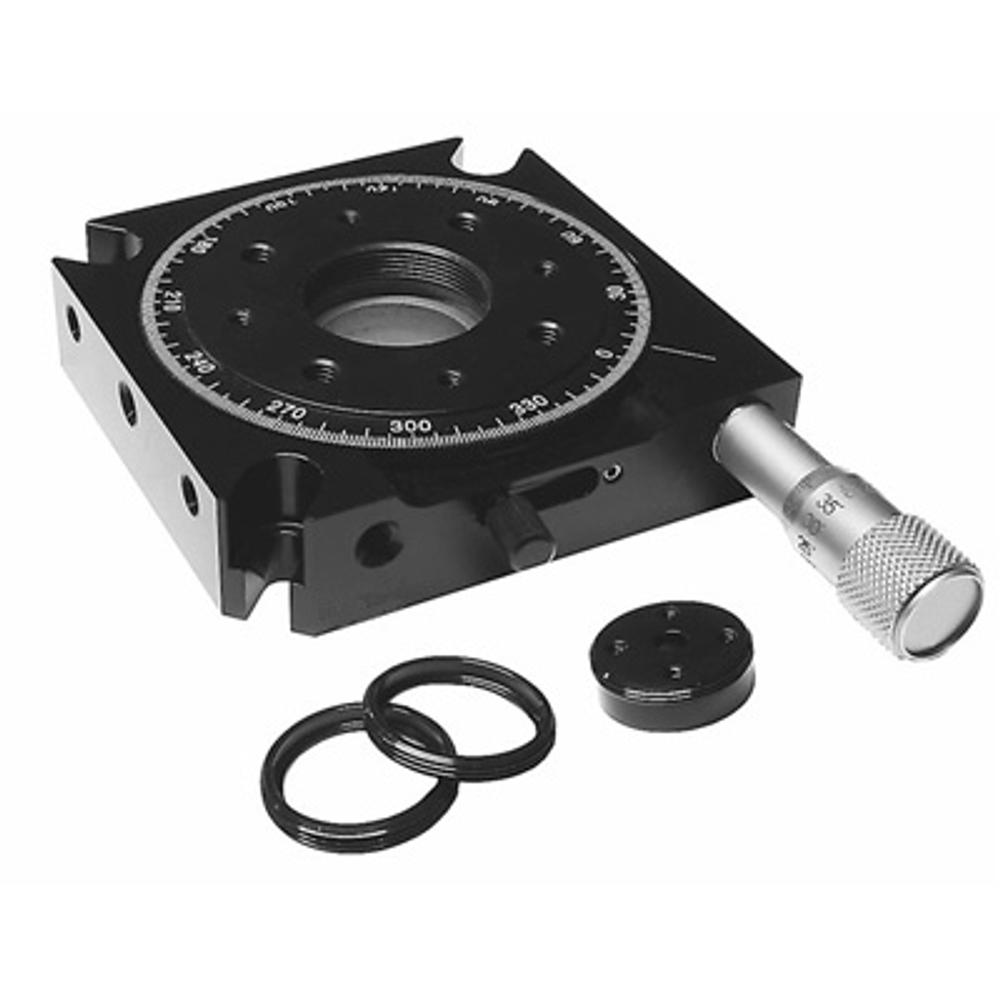

We offer fine rotary stage 860-0140 with a micrometer screw. Fine motion range is 15° with resolution of 1 arcmin. For coarse adjustment release the fixing screw and turn the platform.
The platform has M6 and M4 mounting holes. Precision rotary stage has an aperture M30×1 with a clear aperture of 25 mm. Two retaining rings with 1 inch clear aperture are included.
To close the platform's aperture you can thread in an insert platform (included) with a centered clearance hole and M6, M4 holes. The stage can be fastened horizontally and vertically using M6 screws.
