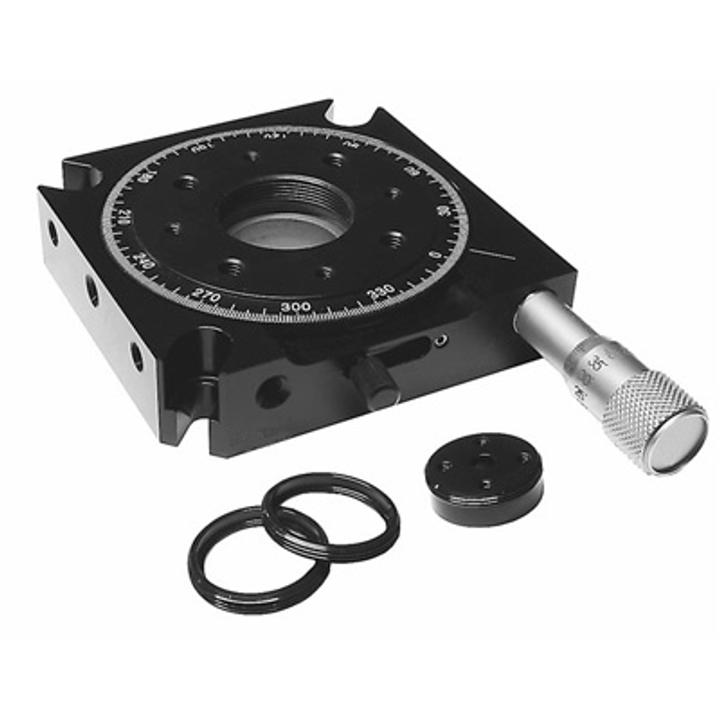

Precision Rotary Stage 860-0140 SKU: 860-0140
• M30×1 diameter platform insert • two 25 mm (1 inch) retaining rings • centered platform insert • Inch version 860-0140E is available We offer fine rotary stage 860-0140 with a micrometer screw. Fine motion range is 15° with resolution of 1 arcmin. For coarse adjustment…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Rotation Stage |
| Vacuum Compatibility | False |
| Rotation Range, coarse | 360 deg 0 min 0 sec |
| Rotation Range, fine | 15 deg 0 min 0 sec |
| Reading Accuracy - Angular | 0 deg 1 min 0 sec |
| Wobble | 0 deg 1 min 0 sec |
| Platform Size, mm | 75×75 |
| Load Capacity Horizontal | 12 kg |
| Load Capacity Vertical | 5 kg |
| Mounting Thread | M6, M4 |
| Mount Clear Aperture | 25 mm |
| Width | 90 mm |
| Length | 135 mm |
| Height | 22 mm |
| Rotation Resolution | 0 deg 1 min 0 sec |
| Rotation Sensitivity | 0 deg 0 min 20 sec |
