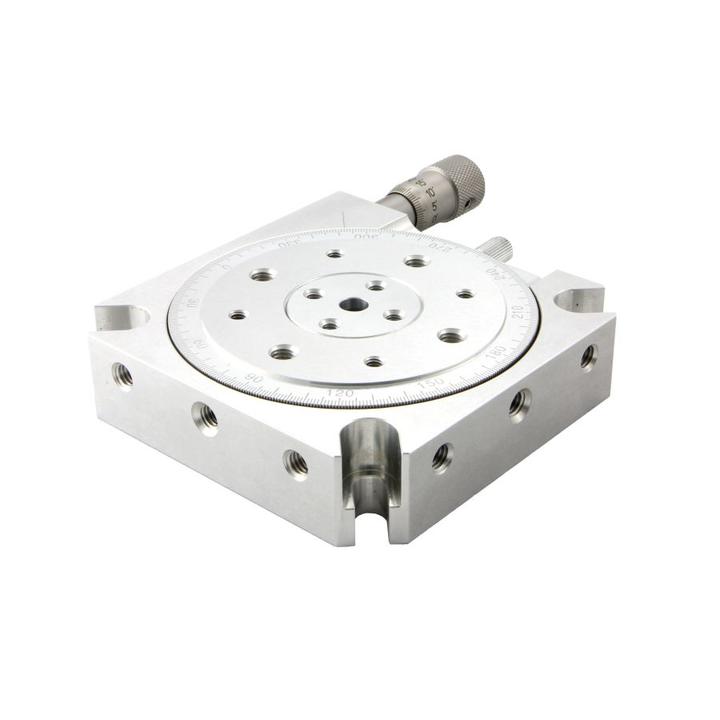

Vacuum Compatible Precision Rotary Stage 860-0140V SKU: 860-0140V
• Centered platform insert • M30x1 diameter platform insert • Two 25 mm (1 Inch) retaining rings • Non-vacuum version is available Vacuum Compatible Precision Rotary Stage has a micrometer screw. Fine motion range is 15° with resolution of 1 arcmin. For coarse adjustment…
Shared product specifications
These specifications apply across the Vacuum Compatible Precision Rotary Stage 860-0140V product family.
| Rotation range - coarse | 360°, resolution 1° |
| Rotation range - fine | 15°, resolution 1arcmin |
| Sensitivity | 20 arcsec |
| Reading accuracy | 1 arcmin |
| Wobble | 1 arcmin |
| Load capacity: / horizontal / vertical | 12 kg / 5 kg |
| Max drive torque | 0.3 kgm |
Classification
| Type | translation|rotation |
