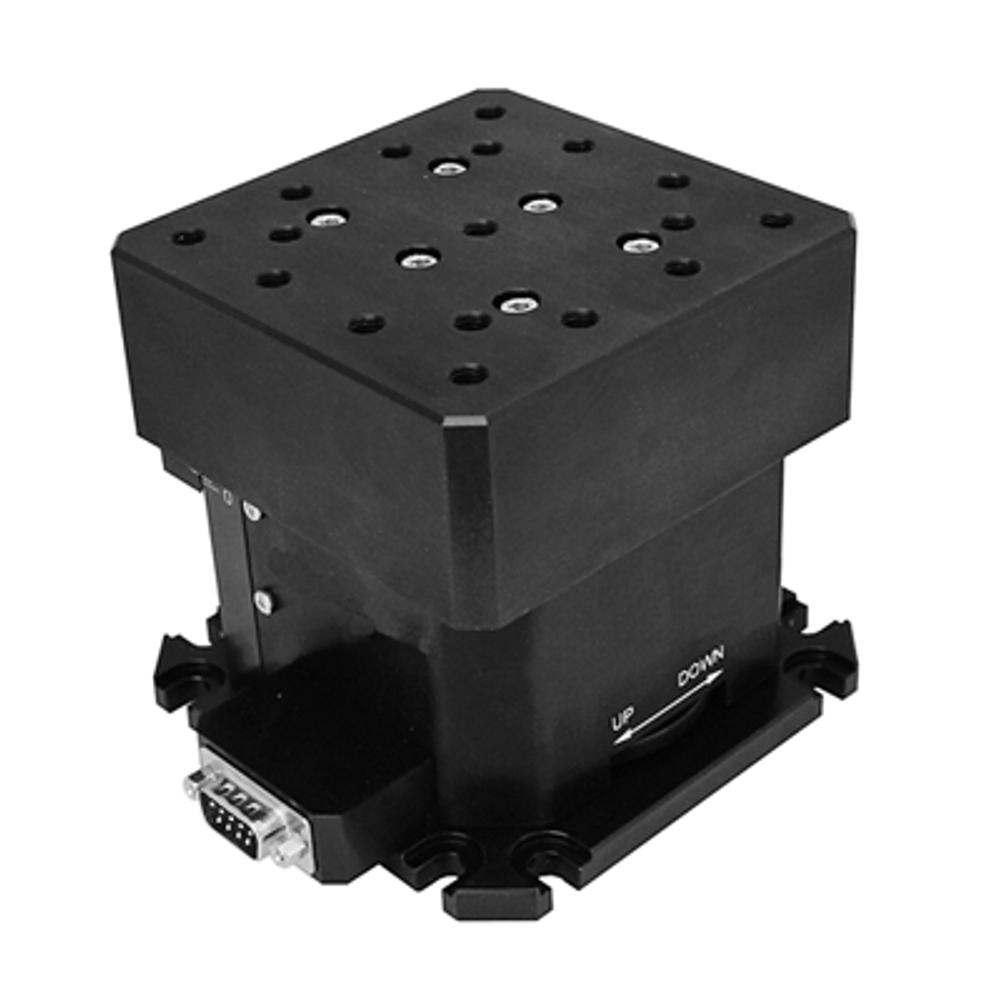

Motorized Vertical Stage 940-0210
• High precision • High speed (up to 20 mm/sec) • Loads up to 8 kg • Compact design • Direct drive actuator • Stacks directly with 960-0130, 960-0150 rotators and 960-0070-02 translators
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 940-0210 |
Out of stock
$2,015
|
Specifications
| Travel range | 25 + 1 mm |
| Resolution in full step | 5 μm |
| Resolution in 1 / 8 step | 0.625 μm |
| Lead screw pitch | 1 mm |
| Maximum speed | 20 mm / sec |
| Load capacity | 8 kg |
| Unidirectional repeatability | 1 μm |
| Bi-directional repeatability | 2 μm |
| Motor | 2 phase stepper actuator |
| Weight | 2.2 kg |
| Limit switch | 2, optocoupler |
| Switch polarity | pushed is open |
| Motorized Vertical Stage - STEP file |
Description
- High precision
- High speed (up to 20 mm/sec)
- Loads up to 8 kg
- Compact design
- Direct drive actuator
- Stacks directly with 960-0130, 960-0150 rotators and 960-0070-02 translators
