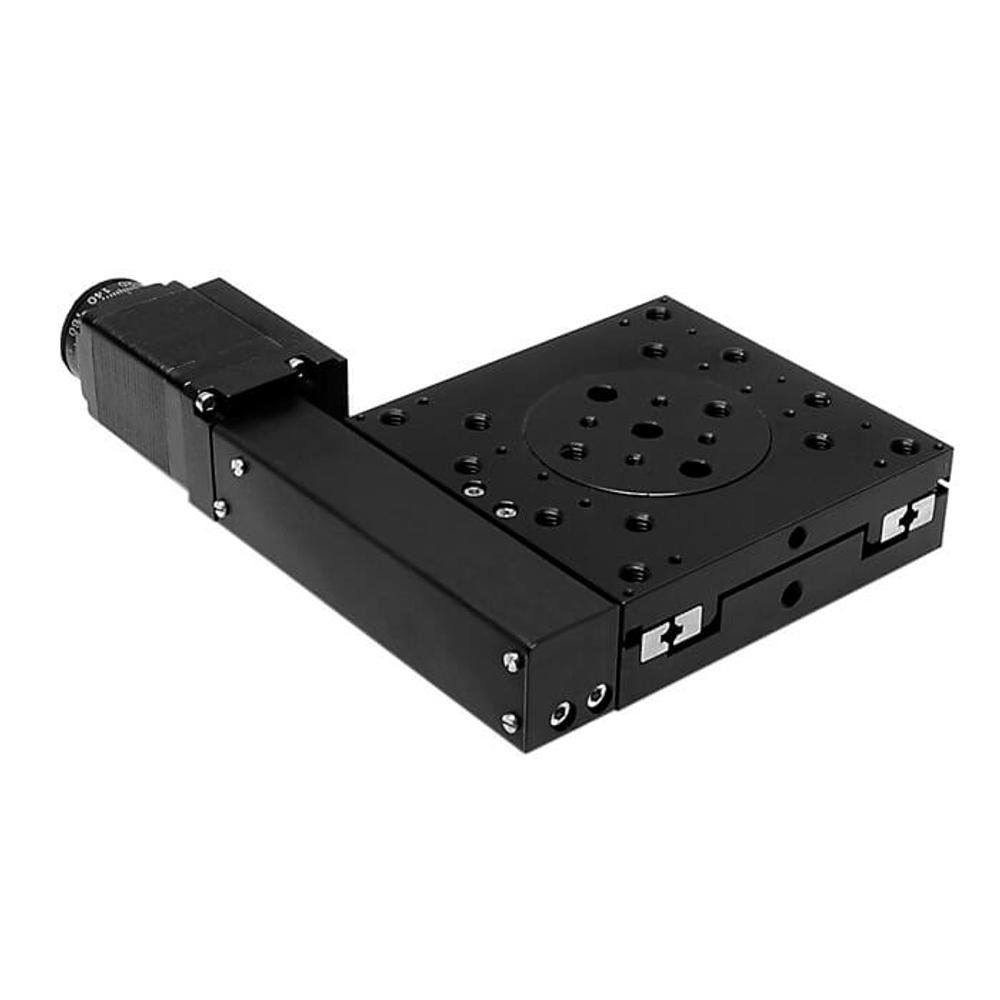

Motorized Translation Stage 960-0070-02
960-0070-02BS1, unlike the 960-0070-02LS, is designed for high-speed movement. Used ball bearing lead screw makes movement fast and smooth. The positioner also can be used with microscope on XY axles. As shown in the… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 960-0070-02BS1 |
Out of stock
—
|
|
| 960-0070-02BS1-M |
Out of stock
—
|
|
| 960-0070-02LS |
Out of stock
—
|
|
| 960-0070-02LS-M |
Out of stock
—
|
Specifications
| 960-0070-02BS1 | 960-0070-02LS | |
|---|---|---|
| Travel range | 25 mm | 25 mm |
| Resolution full step | 5 µm | 1.25 µm |
| Resolution 1 / 8 step | 0.625 µm | 0.156 µm |
| Ball screw pitch | 1 mm | - |
| Lead screw pitch | - | 0.25 mm |
| Repeatability | 1.5 µm | 1 µm |
| Maximum speed | 25 mm / s | 6 mm / s |
Maximum load
| 960-0070-02BS1 | 960-0070-02LS | |
|---|---|---|
| Horizontal | 30 kg | 30 kg |
| Vertical | 7 kg | 7 kg |
| Limit switches | 2 pc mechanical | 2 pc mechanical |
| Cable | 1.6 m length | 1.6 m length |
| Motor connector | HDB15(M) | HDB15(M) |
| Stepper motor | 28 | 28 |
| Weight | 0.8 kg | 0.8 kg |
Description
960-0070-02BS1, unlike the 960-0070-02LS, is designed for high-speed movement. Used ball bearing lead screw makes movement fast and smooth.
The positioner also can be used with microscope on XY axles. As shown in the pictures, the upper plate has a removable insert in the center, the size of which is 2 inches, the base plate is made with slot size of 51 x 76 mm, on the same vertical.
960-0070-02BS1-M and 960-0070-02LS-M are "mirror" versions of each of the translation stages.
