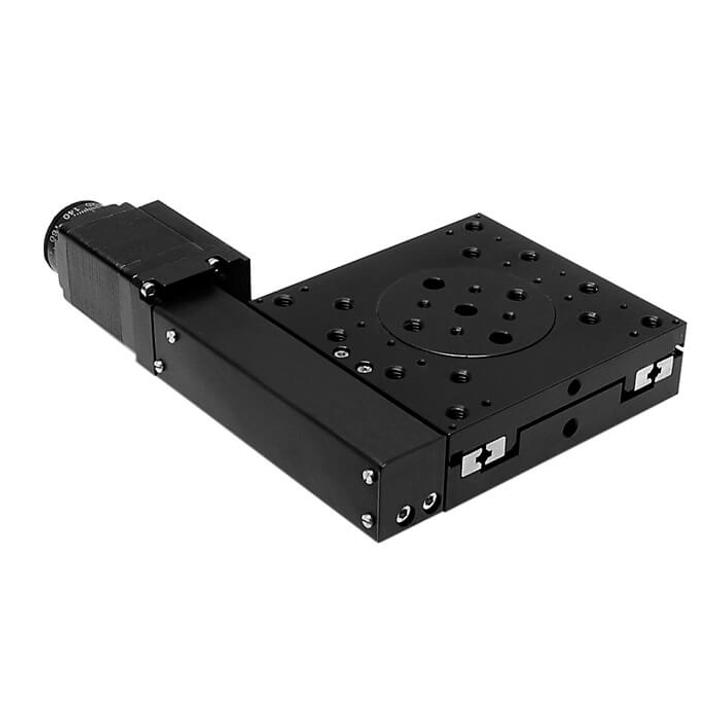

Motorized Translation Stage 960-0070-02 SKU: 960-0070-02LS
960-0070-02BS1, unlike the 960-0070-02LS, is designed for high-speed movement. Used ball bearing lead screw makes movement fast and smooth. The positioner also can be used with microscope on XY axles. As shown in the pictures, the upper plate has a removable insert in the…
Shared product specifications
These specifications apply across the Motorized Translation Stage 960-0070-02 product family.
| 960-0070-02BS1 | 960-0070-02LS | |
|---|---|---|
| Travel range | 25 mm | 25 mm |
| Resolution full step | 5 µm | 1.25 µm |
| Resolution 1 / 8 step | 0.625 µm | 0.156 µm |
| Ball screw pitch | 1 mm | - |
| Lead screw pitch | - | 0.25 mm |
| Repeatability | 1.5 µm | 1 µm |
| Maximum speed | 25 mm / s | 6 mm / s |
Maximum load
| 960-0070-02BS1 | 960-0070-02LS | |
|---|---|---|
| Horizontal | 30 kg | 30 kg |
| Vertical | 7 kg | 7 kg |
| Limit switches | 2 pc mechanical | 2 pc mechanical |
| Cable | 1.6 m length | 1.6 m length |
| Motor connector | HDB15(M) | HDB15(M) |
| Stepper motor | 28 | 28 |
| Weight | 0.8 kg | 0.8 kg |
