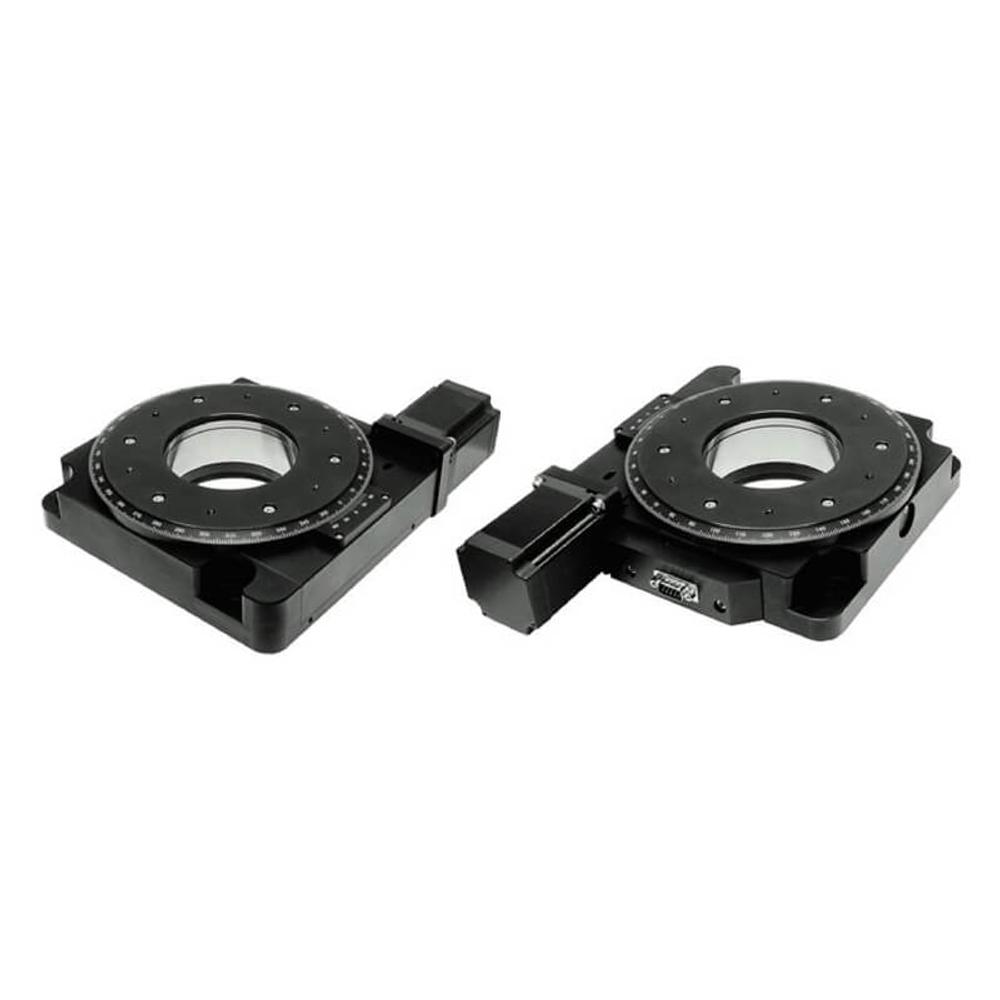

Large Motorized Rotation Stages 960-0130
• Hardened steel with aluminium body • Large diameter ball bearings • Worm Gear Ratio is 1:120 • Hall-effect reference limit switch • Stepper motor or DC motor with encoder • Motor can be optionally equipped with… Read more →
Listed in
Order
Spec at a glance
| Weight | 5.7 kg |
| SKU | Description · Weight | |
|---|---|---|
| 960-0130-01 | Rotation Stage with stepper motor 4247 (1.2A, 200 steps) |
Out of stock
$4,419
|
| 960-0130-02-MEn2 | Rotation Stage with stepper motor 5918 (2,1A, 200 steps)·5.7 kg |
Out of stock
—
|
| 960-0130V | Rotation Stage with stepper vacuum motor VSS43 |
Out of stock
—
|
Specifications
| Model | 960-0130-01 | 960-0130-02 | 960-0130V |
|---|---|---|---|
| Rotation range | 360° continuous | 360° continuous | 360° continuous |
| Resolution / in full step* / in 1 / 8 step* | 54 arcsec / 6.75 arcsec | 54 arcsec / 6.75 arcsec | 54 arcsec / 6.75 arcsec |
| Repeatability (bidirectional) | 72 arcsec | 72 arcsec | 72 arcsec |
| Backlash | 40 arcsec. max. | 40 arcsec. max. | 40 arcsec. max. |
| Maximum speed* | 10 turn / min | 6 turn / min | 4 turn / min |
| Wobble | 40 μRa | 40 μRa | 40 μRa |
| Cable | 1.6 m length | 1.6 m length | 2 m length |
| Motor Connector | DB9(M) (wiring diagram) | DB9(M) (wiring diagram) | HDB15(M) (wiring diagram) |
| Stepper motor | 4247 | 5918 | VSS43* * |
| Load capacity / horizontal / vertical | 60 kg / 25 kg | 60 kg / 25 kg | 40 kg / 20 kg |
| Weight | 6.6 kg | 5.7 kg | 5.7 kg |
| Reference Hall switch | 1, pushed is "closed" | 1, pushed is "closed" | 1, pushed is "closed" |
Description
- Hardened steel with aluminium body
- Large diameter ball bearings
- Worm Gear Ratio is 1:120
- Hall-effect reference limit switch
- Stepper motor or DC motor with encoder
- Motor can be optionally equipped with reduction gear
- 1.8 m long cable included
- Very high load capacity
- Vacuum version 960-0130V available on request
- Encoders or Revolution sensors are available on request. More information
